Quick Details
-
Brand Name:
-
SST
-
Theory::
-
Optical Sensor
-
Supply Voltage (Vs)::
-
+4.5 Vdc to +15.4Vdc
-
Supply Current (Is)::
-
Max 2.5mA (Vs = 15.4Vdc) or Max 7.5mA (Vs = 30Vdc)
-
Operating temperature::
-
-25°C to +80°C (Standard) -40°C to +125°C (Extended)
-
Pressure::
-
7 bar max
-
Output Sink and Source Current (lout)::
-
1A
-
Housing Material::
-
Polysulphone or Trogamid
-
Operating Pressure:
-
Up to 600 bar depending on housing type
-
Sensor Termination:
-
20AWG, 250mm PTFE wires, 8mm tinned
Quick Details
-
Usage:
-
Level Sensor
-
Model Number:
-
LLG
-
Place of Origin:
-
United Kingdom
-
Brand Name:
-
SST
-
Theory::
-
Optical Sensor
-
Supply Voltage (Vs)::
-
+4.5 Vdc to +15.4Vdc
-
Supply Current (Is)::
-
Max 2.5mA (Vs = 15.4Vdc) or Max 7.5mA (Vs = 30Vdc)
-
Operating temperature::
-
-25°C to +80°C (Standard) -40°C to +125°C (Extended)
-
Pressure::
-
7 bar max
-
Output Sink and Source Current (lout)::
-
1A
-
Housing Material::
-
Polysulphone or Trogamid
-
Operating Pressure:
-
Up to 600 bar depending on housing type
-
Sensor Termination:
-
20AWG, 250mm PTFE wires, 8mm tinned

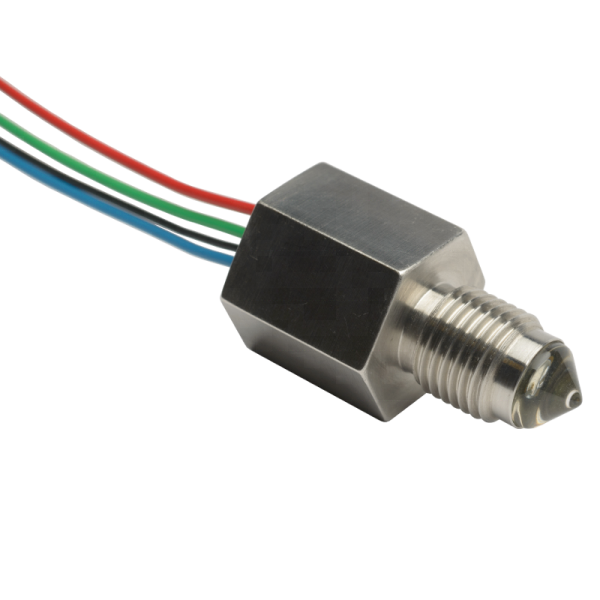

Fuel Tank Level Sensor Liquid Detection For Racecar
Model :LLC210D3-001
Descripition
Whilst maintaining our very competitive pricing, the Optomax Industrial range of liquid level sensors offer higher supply voltage ranges, higher current drive options and an extended temperature range for more challenging specifications and environments.
SST has improved this range of industrial level sensors and introduced new features such as;
-
Low power consumption, reducing supply current from 15mA to 2mA
-
Increased output power, increasing output sink and source current from 500mA to 1A
-
They are solid state, no moving parts unlike mechanical switches where debris can get jammed and cause unreliability.
-
Very accurate and precise readings
-
Easy to install, saving assembly time
-
Very robust which permit use in a wide range of fluids and chemicals
-
Housings, cabling and connectors are made to your requirements
-
High pressure options available
Applications
Typical applications for our Optomax Industrial Range of Liquid Level Sensors are;
-
Engine Oil & Coolant High/Low levels
-
Cutting Machine Coolant Levels
-
Gear Box Oil Levels
-
Pump & Gearbox Leak Sensor
Specifications
|
Housing/Mounting Style |
M12 Thread with Hex Nut ½” SAE Thread with O-Ring ¼” NPT Thread |
|
Housing Tip Material |
Polysulphone or Trogamid |
|
Temperature Range |
-25 to +80 degree |
|
Extended Temperature Range |
-40 to +125 degree |
|
Supply Voltage |
+4.5 Vdc to +15.4Vdc OR +8Vdc to +30Vdc |
Products Demensions (all demensions in mm)
