The power supply of computer,test equipment,lighting equipment,alarm and security system,X-ray equipment,Medical equipment,Duplicator,Broadcasting equipment,Numerical control machine tool,Industrial automation equipment,photographic processing equipment,inspection equipment and so on.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ANNEKES
-
Model Number:
-
TM 110V 5000VA
-
Protection:
-
Voltage Protection
-
Output voltage:
-
220V
-
Product Name:
-
single Phase Servo Motor Voltage Regulator
-
Input Voltage:
-
110V
-
Certificate:
-
CE
-
Type:
-
Servo Motor Control
-
Frequency:
-
50Hz/60Hz
-
Display:
-
digital display
-
Capacity:
-
5000VA Available
-
Color:
-
White
Quick Details
-
Phase:
-
Single Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ANNEKES
-
Model Number:
-
TM 110V 5000VA
-
Protection:
-
Voltage Protection
-
Output voltage:
-
220V
-
Product Name:
-
single Phase Servo Motor Voltage Regulator
-
Input Voltage:
-
110V
-
Certificate:
-
CE
-
Type:
-
Servo Motor Control
-
Frequency:
-
50Hz/60Hz
-
Display:
-
digital display
-
Capacity:
-
5000VA Available
-
Color:
-
White
Product Description

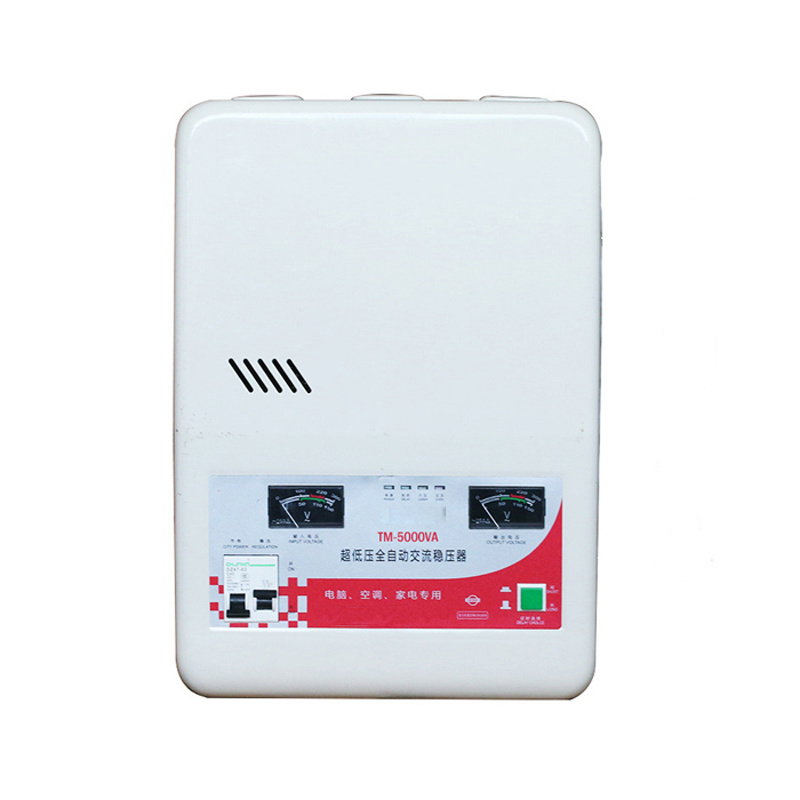

5000va 110V single phase relay control automatic AC voltage stabilizer for water pump
TM series voltage stabilizer,which has no wave form distortion,small body,light weight,high efficiency,available and convenient use,and long time operation and so on.and also can be used for many equipments,and is one of more ideal voltage stabilizer.
|
Input voltage
|
110V
|
|
Output voltage
|
Single-phase 220V
|
|
Voltage stabilizing precision
|
220V±10%
15K~60K 220V |
|
Frequency
|
50Hz/60Hz
|
|
Adjusting time
|
<1s (when input voltage has change of 10%)
|
|
Efficiency
|
>90%
|
|
Over-voltage protection
|
246V±4V
|
|
Ambient temperature
|
-10℃-+40℃
|
|
Relative humidity
|
<95%
|
|
Waveform distortion
|
No additional waveform distortion
|
|
Dielectric strength
|
1500V/min
|
|
Insulation resistance
|
>2MΩ
|
Application
-
Characteristics
General
TM series voltage stabilizer,which has no wave form distortion,small body,light weight,high efficiency,available and convenient use,and long time operation and so on.and also can be used for many equipments,and is one of more ideal voltage stabilizer.
Detailed Images
TM series voltage stabilizer,which has no wave form distortion,small body,light weight,high efficiency,available and convenient use,and long time operation and so on.and also can be used for many equipments,and is one of more ideal voltage stabilizer.
Size Information
OUTLINE & PACKING
|
|
Type
|
Specification
|
Package size(mm)
|
|
Desk type/Cabinet type
|
TM-1KVA
|
1kVA
|
210*110*140 / 1 Set
|
|
|
TM-1.2KVA
|
1.2kVA
|
210*110*140 / 1 Set
|
|
|
TM-3.5KVA
|
3.5kVA
|
330*430*180 / 2 Sets
|
|
|
TM-5KVA
|
5kVA
|
360*470*233 / 2 Sets
|
|
|
TM-8KVA
|
8kVA
|
360*470*233 / 2 Sets
|
|
|
TM-10KVA
|
10kVA
|
385*560*280 / 1 Set
|
|
|
TM-12KVA
|
12kVA
|
430*300*190 /1 Set
|
|
|
TM-15KVA
|
15kVA
|
430*300*190 / 1 Set
|
Related Products
Packing&Shipping
1.Packaging:
Small capacity products (Automatic Voltage Regulators/Stabilizers), colour box as inner package and cardboard carton as outer package.
Big capacity products, we use strong plywood case.
Small capacity products (Automatic Voltage Regulators/Stabilizers), colour box as inner package and cardboard carton as outer package.
Big capacity products, we use strong plywood case.
2.Shipping Methods:
By air or by sea(FOB port:Ningbo),by express (DHL,UPS,TNT,FEDEX).
By air or by sea(FOB port:Ningbo),by express (DHL,UPS,TNT,FEDEX).
After Sales Service
What is the Guarantee?
1: Two years (for free) from the date of B/L. Besides, any of the spare parts can be supplied all the time, that is, during the guarantee period and after the guarantee period. Important:
1: Two years (for free) from the date of B/L. Besides, any of the spare parts can be supplied all the time, that is, during the guarantee period and after the guarantee period. Important:
a. The efficiency of our Voltage Regulators / Stabilizers are 90% to 95% (some series of them reaches 95%), please don’t let them work overload!
b. Please make sure that all the electric wires are connected correctly according to the electric diagram
Company Introduction
Annekes Electric Co.,Ltd is one of the successful companies in the field of manufacturing, supplying and exporting power supply components. Our company provide power solutions to many power establishments, telecom companies, industrial houses and end users. Our range of products includes voltage stabilizers, regulators, UPS inverter , solar inverter, step up & down transformers,battery charger,voltage protector, switching power supply, etc.
Our Services & Strength
We have strong team and long experiance in producing,exporting and aftersale service.
Please don't be hesitate to Contact Us for any questions,your inquiry will be on our priority attention and fastest reply!
FAQ
Q1: What is the Guarantee?
A1: Two years (for free) from the date of B/L. Besides, any of the spare parts can be supplied all the time, that is, during the guarantee period and after the guarantee period.
Important:
a. The efficiency of our Voltage Regulators / Stabilizers are 90% to 95% (some series of them reaches 95%), please don’t let them work overload!
b. Please make sure that all the electric wires are connected correctly according to the electric diagram
Q2: Can we put/show our own Logo on your products?
A2: Yes, no problem, however, the quantity should be a bit big.
Q3: Is OEM/ODM available?
A3: Yes, it is! Our products can be Customized. We have 5 senior engineers in our R&D Dept., we design and produce all kinds of Automatic Voltage Regulators/Stabilizers according to our customers’ specific requirements.
Q4: What is the MOQ?
A4: For the small capacity products (Automatic Voltage Regulators/Stabilizers) of the default configuration, it is 10 sets. For the big capacity products, it is 1 set.
Q5: Can you offer Form A or Form E or C/O ?
A5: Yes, no problem, we can apply for it from our local government.
Q6: What kind of Certificates do you have?
A6: CE, ISO9001 and SGS.
Q7: What is the Terms of Payment?
A7: L/C, T/T, D/P, D/A, Western Union and MoneyGram (for Small-amount payment).
A1: Two years (for free) from the date of B/L. Besides, any of the spare parts can be supplied all the time, that is, during the guarantee period and after the guarantee period.
Important:
a. The efficiency of our Voltage Regulators / Stabilizers are 90% to 95% (some series of them reaches 95%), please don’t let them work overload!
b. Please make sure that all the electric wires are connected correctly according to the electric diagram
Q2: Can we put/show our own Logo on your products?
A2: Yes, no problem, however, the quantity should be a bit big.
Q3: Is OEM/ODM available?
A3: Yes, it is! Our products can be Customized. We have 5 senior engineers in our R&D Dept., we design and produce all kinds of Automatic Voltage Regulators/Stabilizers according to our customers’ specific requirements.
Q4: What is the MOQ?
A4: For the small capacity products (Automatic Voltage Regulators/Stabilizers) of the default configuration, it is 10 sets. For the big capacity products, it is 1 set.
Q5: Can you offer Form A or Form E or C/O ?
A5: Yes, no problem, we can apply for it from our local government.
Q6: What kind of Certificates do you have?
A6: CE, ISO9001 and SGS.
Q7: What is the Terms of Payment?
A7: L/C, T/T, D/P, D/A, Western Union and MoneyGram (for Small-amount payment).
