Quick Details
-
Nature:
-
Encoding&modulator
-
Channel No:
-
Universal 1 channel
-
RF modulator inputs:
-
1*HD 1080P or SDI+1*ASI+1*RF
-
RF out option:
-
DVB-C/DVB-T/ISDB-T/ATSC-T
-
Audio Compression standard:
-
MPEG1 Layer II, LC-AAC, HE-AAC
-
Video compression standard:
-
MPGE2/H.264 HD
-
RF modulator resolution:
-
Up to 1080P Full HD
-
Options:
-
1.WIFI out(DLNA&Airplay) 2.HD 1080P+VGA in
-
Chassis:
-
standard 1U, 19inch
-
Capability:
-
Encoding, Multiplexing, Encapsulation and Modulator
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DIGICAST
-
Model Number:
-
DMB-9582
-
Nature:
-
Encoding&modulator
-
Channel No:
-
Universal 1 channel
-
RF modulator inputs:
-
1*HD 1080P or SDI+1*ASI+1*RF
-
RF out option:
-
DVB-C/DVB-T/ISDB-T/ATSC-T
-
Audio Compression standard:
-
MPEG1 Layer II, LC-AAC, HE-AAC
-
Video compression standard:
-
MPGE2/H.264 HD
-
RF modulator resolution:
-
Up to 1080P Full HD
-
Options:
-
1.WIFI out(DLNA&Airplay) 2.HD 1080P+VGA in
-
Chassis:
-
standard 1U, 19inch
-
Capability:
-
Encoding, Multiplexing, Encapsulation and Modulator
MPEG-2/H.264 HD Encoder and Modulator HD 1080P SDI to RF Modulator with DVB-C/T ISDB-T Out
Main Feature
Comply to DVB-S/S2 modulation standard
MPEG-2/H.264 SD/HD video compression
Encoding module support swappable
Audio encoding: support MPEG-1 Layer 2, LC-AAC, HE-AAC
Capable of PID, PSI/SI compilation and LCN setting
Providing BISS scrambling
Cut-off memory function
HTTP WEB network management
Support software upgraded by Ethernet interface, easy maintenance
Support 10MHz reference clock
Specifications
|
SPECIFICATIONS |
|
|
ENCODING MODULES |
|
|
MPEG-2/H.264 H D Encoding M odule |
Video input: 1 *SDI (other interfaces need to be customized) Video compression standard: MPEG-2/H.264 SD/HD Resolution: 1920*1080_60P, 1920*1080_50P-- (only for H.264 HD) 1920*1080_60i, 1920*1080_50i, 1280*720_60P, 1280*720_50P, 720*480_60i, 720*576_50i Audio input: SDI embedded Audio compression: MPEG1 Layer II, LC-AAC, HE-AAC Audio sampling rate: 48KHz Aud bit-rate: 64 ~ 320kbps |
|
INPUTS AND OUTPUTS |
|
|
ASI Input |
Channel: 1*ASI Interface: BNC, 75 ohm Input bit-rate: ≤ 100Mb/s Packet mode: Byte mode Packet length: 188/204 Bytes |
|
ASI Output |
1* ASI output Standard: compliant with EN 50083-9 ASI Output loss: >10dB Interface: BNC, 75 ohm TS output: from encoded program or ASI input |
|
MODULATION MODULE |
|
|
DVB-S/S2 Modulation |
C ompliant to DVB-S2 EN302 307 , EN300 421 standard Constellation: DVB-S --- QPSK , DVB-S2---QPSK, 8PSK FEC Encoding pattern: DVB-S-RS+convolutional code; DVB-S2-BCH+LDPC FEC encoding efficiency: DVB-S: 1/2, 2/3,3/4,5/6,7/8 ; DVB-S2: QPSK-1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10; 8PSK-3/5, 2/3, 3/4, 5/6, 8/9, 9/10 Symbol rate : 0.05-20.0 M s ps Output level: -16-0dBmv |
|
|
E quipped with RF 24V coupling output |
IPTV System Mall Info and Corporate TV
Various of DTV Broadcasting Systems Industrial Monitoring and HD Surveillance
Home Entertainment Apartment, Private House
HDTV Distribution Restaurant, Yacht, Club and Resort
Campus TV and Live Sports Airport, Railway Station
Hotel and Hospital TV Highway and Railway Mobile Device
Lobby and Rest Room Public Broadcasting
Museum,Theater and Cinema,Gymnasium Advertisement in Square and so on
Overview

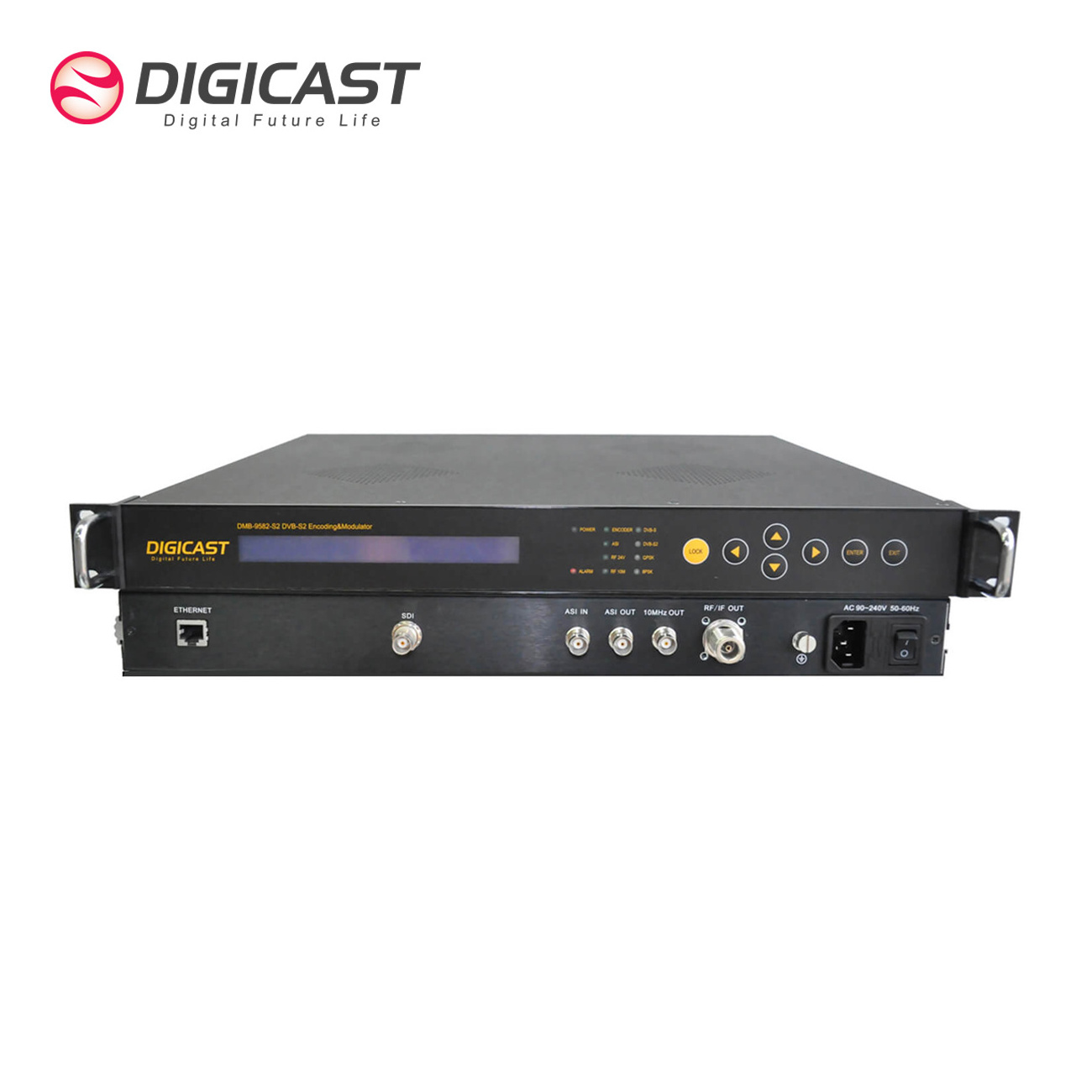

DMB-9582 Encoding & Modulator is a high-integration, high video quality, high-stability and multi-function digital TV head-end device, encoding module support hot-swappable design. Adopting the state-of-the-art Audio & Video compression technology, it features higher video quality, shorter latency and lower bit rate. There are varieties of encoding modules for your option. Moreover, index parameter of DVB S/S2 RF out is excellent, enabling its application to professional satellite uplink. DMB-9582-S2 has one ASI output, which can be used as other modulator’s program source. Additionally, the device can also serve as independent encoder and independent modulator. The Encoding & Modulator supports program sources from video and surveillance control camera or HD STB, HD camera or play out server, PC and other diversified video source.
