Quick Details
-
Model Number:
-
ECT465-300(4800)
-
Tex Count:
-
2400-4800tex
-
model:
-
alkali free fiber glass AR assembled roving
-
Filament diameter:
-
17 +/-1
-
Tex count/ chopped lengthmm):
-
13+/-1
-
Moisture Content(%):
-
≤0.2
-
Stiffness (%):
-
140±10
-
Loss On Ignition(%):
-
1.4-1.8
-
Tensile Strength:
-
>2500Mpa
-
Density:
-
Approx.2650kgs/M3
-
Youngs Moulds:
-
>77,000Mpa
-
Softening Point:
-
>900 deg.C
Quick Details
-
Type:
-
E-glass
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
CYK
-
Model Number:
-
ECT465-300(4800)
-
Tex Count:
-
2400-4800tex
-
model:
-
alkali free fiber glass AR assembled roving
-
Filament diameter:
-
17 +/-1
-
Tex count/ chopped lengthmm):
-
13+/-1
-
Moisture Content(%):
-
≤0.2
-
Stiffness (%):
-
140±10
-
Loss On Ignition(%):
-
1.4-1.8
-
Tensile Strength:
-
>2500Mpa
-
Density:
-
Approx.2650kgs/M3
-
Youngs Moulds:
-
>77,000Mpa
-
Softening Point:
-
>900 deg.C

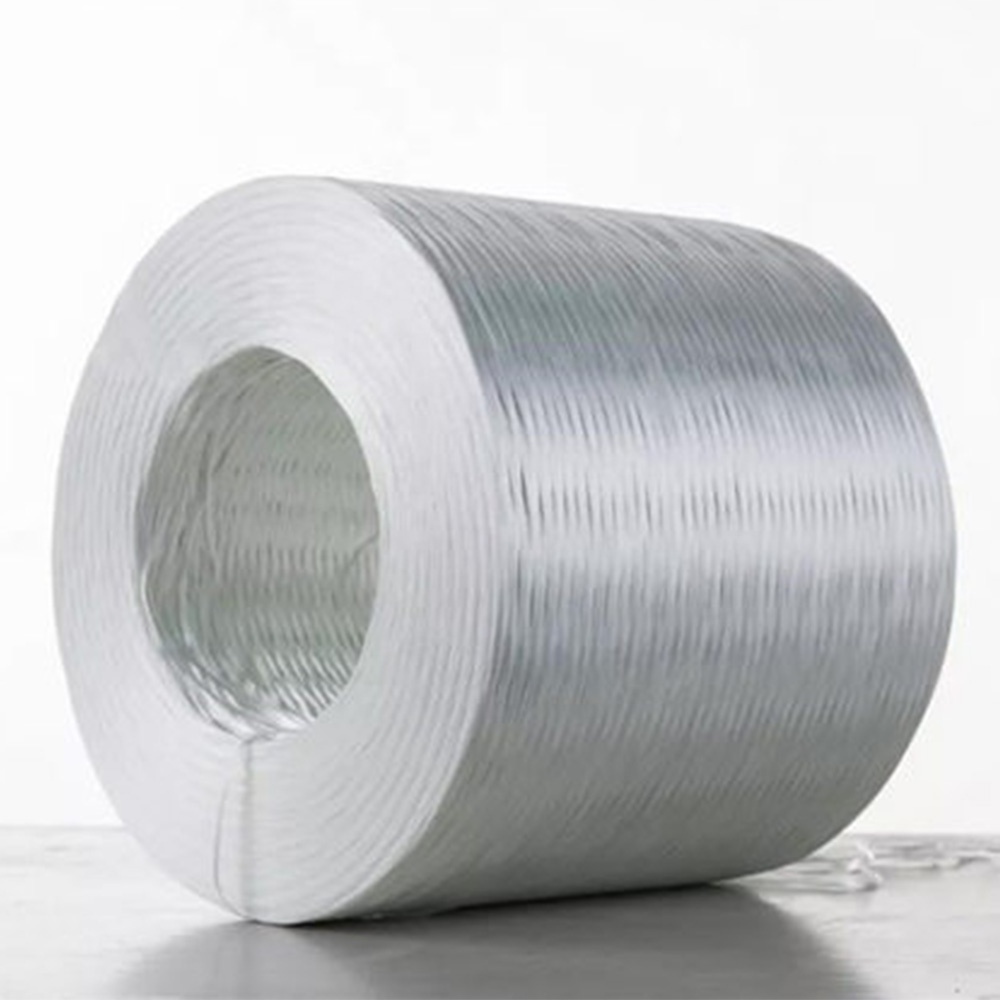

alkali free fiber glass AR assembled roving for fiberglass chopper gun hot sale
AR fiberglass is the base material to make fiberglass reinforced cement(GRC), as a light, high strength incombustible, designable
and easy shaped material, GRC has been widely used in building industry as board, corrugated roofing sheet, division panel.Internal and external insulation panel, decorative, duct panel, cable box, Granary, channels Drainage and irrigation, Garden feature, Artistic, etc.
This production lines from AR glass marble making, fiber forming, weaving to final plastic coating, Na2O-SiO2-ZeO2-TiO2 system
glass has been used as raw material, it’s alkaly resistance meet the requirements of PCI(prestressed concrete institution) and
international GRC institution. Principal products include roving, chopped strand, plastic coated scrim, tape, that suitable for
all kinds of forming.
Properties:
|
Product name
|
AR glass chopped strands
|
|
Test item
|
Standard Value
|
|
Fiber Diameter(um)
|
17 +/-1
|
|
Tex count/ chopped length(mm)
|
13+/-1
|
|
Moisture Content(%)
|
≤0.2
|
|
Stiffness (%)
|
140±10
|
|
Loss On Ignition(%)
|
1.4-1.8
|
|
Tensile Strength
|
>2500Mpa
|
|
Density
|
Approx.2650kgs/M3
|
|
Youngs Moulds
|
>77,000Mpa
|
|
Softening Point
|
>900 deg.C
|
|
Composition(%)
|
ZrO2
|
SiO2
|
TiO2
|
Na2O
|
CaO
|
K2O
|
AlO3
|
Fe2O3
|
|
|
17.0
|
56.5
|
5.77
|
12.7
|
4.89
|
2.49
|
0.39
|
0.26
|
Packing:
AR ROVING:
AR ROVING:
1). Individual roll: Each roll use shrink film wrapped
2). Pallet packing: 48 or 64 rolls per pallet, whole pallet in plastic bag
Cardboard carton outside the shrink film.
Chopped strands:
2). Pallet packing: 48 or 64 rolls per pallet, whole pallet in plastic bag
Cardboard carton outside the shrink film.
Chopped strands:
1): About 20kg/PP bag then with pallet and shrin film wrapped.
Also the packing can be changed according customer’s requirement.
Also the packing can be changed according customer’s requirement.
1. who are we?
We are a specialized supplier of heat insulation and filtration materials ,based in Chongqing, China, start from 2010. We have our own plants to serve our customers both in China and overseas' market. We have established the strategic cooperation with some of customers and quikly grows in these years. Besides it, we work closely with our partner manufacturers of glass fiber, basalt fiber and carbon fiber products etc to serve well on our customers.
2. how can we guarantee quality?
We always adhere to the principle of "to provide the best quality as we can". We have the strict quality control policy on our
products and on our partner's companies before the goods delivery. If there is some quliaty issue, we will closely check with our customers and always take our responsibilities if it happen even though the possiblility is very low.
3.what can you buy from us?
The heat insulation materials include vacuum insulation panel(or board), Vacuum glass ,Aerogel mat and others for construction and industrial applications. The filtration material and product include various kinds of glass fiber filtrate paper (F and Hepa grade, laminated ones), wood pulp filter paper (tea and coffee filter paper), various kinds of non-woven tissue (used for face mask and others) and PP, PET filter paper. The new material of fiber products include glass fiber, basalt fiber and carbon fiber materials such as roving, chop strand,fabric and mat.etc.
4. why should you buy from us not from other suppliers?
We are specialized in the heat insulation and filtration fields morn than 10 years and can provide the best solutions to our
customers. We always respect our reputation and treat our customers sincerely.
5. what services can we provide?
Accepted Delivery Terms:EXW, FOB,CFR,CIF,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T, L/C, D/P,Western union,Paypal;
