Quick Details
-
Voltage:
-
380v, 220v, 110v
-
Weight:
-
500 KG
-
Application:
-
Re-selection Equipment Gold Ore or Diamonds Vibration Shaking Table
-
Deck type:
-
46/60/88/90/110/120/136 Riffles
-
Model:
-
6S-4500,LY2100,LY1100
-
Keywords:
-
shaking table,gold shaking table,shaking table gold
-
Feeding size:
-
0-2mm
-
Advantage:
-
New Type, more stable and durable
-
Motor:
-
Siemens as per request
-
Material:
-
Glass Fiber Reinforced Plastic
-
Installation:
-
Under Guidance with full technical support
-
Capacity:
-
0.2-1.5T/H
Quick Details
-
Production Capacity:
-
100%
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Eastman
-
Voltage:
-
380v, 220v, 110v
-
Weight:
-
500 KG
-
Application:
-
Re-selection Equipment Gold Ore or Diamonds Vibration Shaking Table
-
Deck type:
-
46/60/88/90/110/120/136 Riffles
-
Model:
-
6S-4500,LY2100,LY1100
-
Keywords:
-
shaking table,gold shaking table,shaking table gold
-
Feeding size:
-
0-2mm
-
Advantage:
-
New Type, more stable and durable
-
Motor:
-
Siemens as per request
-
Material:
-
Glass Fiber Reinforced Plastic
-
Installation:
-
Under Guidance with full technical support
-
Capacity:
-
0.2-1.5T/H
Product Description
Product Introduction:

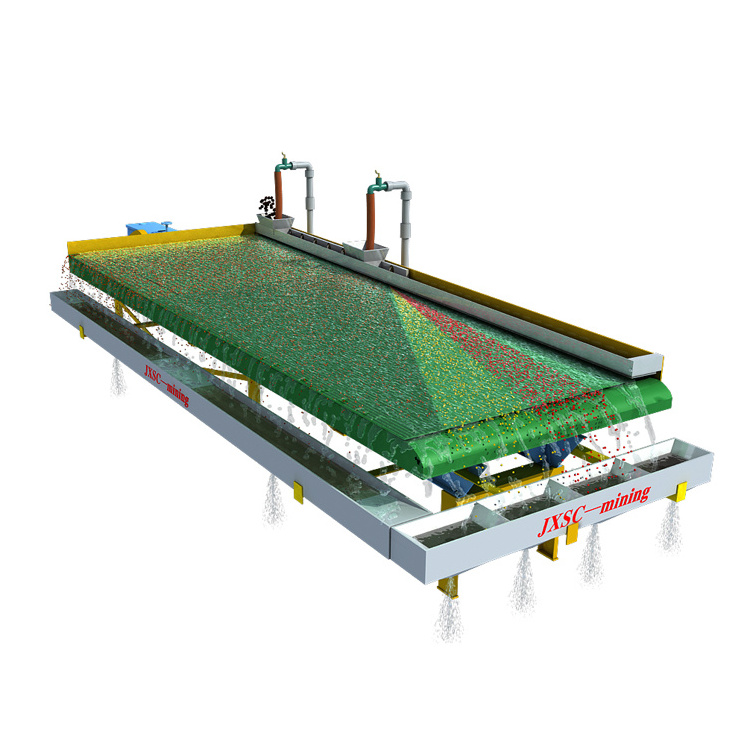

Mineral Separation Equipment/Gold Machine Gold Refining Shaking Table as one of gravity mining equipment, 6S shaking table is widely applied on separating Gold, Silver, Tin, Columbium, Tantalum Niobium, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, and other rare metals and the noble metal ore.
Decks: gravity gold shaking table have three distinct deck designs available. The course ore deck is designed for recovering particles size from 0.5 mm to 2 mm; the fine sand deck is designed for recovering fine particles in the range of 0.1 mm to 1mm; the slime deck is designed for recovering super extremely fine particles in the range of 0.037 mm to 0.5 mm.
Feeding Chute and Water Chute: A wooden feed distributing box with hopper and long water box are attached to the iron of the deck, giving a very even distribution of feed and water.
Mineral Separation Equipment/Gold Machine Gold Refining Shaking Table as one of gravity mining equipment, 6S shaking table is widely applied on separating Gold, Silver, Tin, Columbium, Tantalum Niobium, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, and other rare metals and the noble metal ore.
6S shaking table & LY shaking table can be used in different stages in mining, like rough concentration, retreat and scanvenging.
Recovery material size ranges are: coarse sand (0.5 mm to 2 mm), fine sand (0.1 mm to 1 mm) and slime (0.037-0.5 mm). Effective mineral recovery size range is 0.037 mm to 2 mm.
Recovery material size ranges are: coarse sand (0.5 mm to 2 mm), fine sand (0.1 mm to 1 mm) and slime (0.037-0.5 mm). Effective mineral recovery size range is 0.037 mm to 2 mm.
Head motion:
gravity gold shaking table cast iron to contain an oil reservoir for perfect splash lubrication. This feature
protects the moving parts, reducing operating and maintenance costs to a minimum.
protects the moving parts, reducing operating and maintenance costs to a minimum.
Decks: gravity gold shaking table have three distinct deck designs available. The course ore deck is designed for recovering particles size from 0.5 mm to 2 mm; the fine sand deck is designed for recovering fine particles in the range of 0.1 mm to 1mm; the slime deck is designed for recovering super extremely fine particles in the range of 0.037 mm to 0.5 mm.
Feeding Chute and Water Chute: A wooden feed distributing box with hopper and long water box are attached to the iron of the deck, giving a very even distribution of feed and water.
|
Model Performance
|
|
6S-4500
|
LY-2100
|
LY-1100
|
|
|
Deck Size(mm)
|
|
4500×1850×1560
|
2100×1050×850
|
1100×500×430
|
|
|
Feeding Range(mm)
|
Sand ore
|
-2
|
-2
|
-2
|
|
|
|
slime
|
-0.074
|
-0.074
|
-0.074
|
|
|
Feeding
Density |
%
|
10-30
|
10-30
|
10-30
|
|
|
Capacity
(t/h)
|
Sand ore
|
0.5-1.8
|
0.4-0.8
|
0.1-0.2
|
|
|
|
slime
|
0.5-0.8
|
0.3-0.5
|
0.05-0.1
|
|
|
V-belt (mm)
|
|
A-2000
|
B-2007
|
A-1245
|
|
|
Size(mm)
Length × width × height |
|
5600×1850×860
|
3040×1050×1020
|
1530×500×800
|
|
|
Weight(kg)
|
|
1100
|
480
|
160
|
|
