The waste tire processing production line can recycle tires in the diameter range of 400-3000mm according to customer requirements. The applicability is strong. The output size can be controlled within the range of 5-100mm, and the output can reach 200-10000kg/h.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
600 800 1000 1200
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
3250*1380*2300mm
-
Year:
-
NEW
-
Weight (KG):
-
5600 kg
-
Power (kW):
-
45
-
Application:
-
Tire Rubbers Recycling Industry
-
Name:
-
Portable tyre shredder tire grinding shedder machine for rent
-
Raw material:
-
Waste Tyre Tire Rubber
-
After-sales Service Provided:
-
1 Year
-
Capacity:
-
2-5t/h
-
Color:
-
Customers' Demand
-
Advantage:
-
High Efficiency Low Energy Consumption
-
End product:
-
Rubber Particle
-
Machine Type:
-
Semi-automatic Tire Recycling Machine
-
Product name:
-
Tyre Rubber Shredder
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MC
-
Marketing Type:
-
New Product 2023
-
Model Number:
-
600 800 1000 1200
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
3250*1380*2300mm
-
Year:
-
NEW
-
Weight (KG):
-
5600 kg
-
Power (kW):
-
45
-
Application:
-
Tire Rubbers Recycling Industry
-
Name:
-
Portable tyre shredder tire grinding shedder machine for rent
-
Raw material:
-
Waste Tyre Tire Rubber
-
After-sales Service Provided:
-
1 Year
-
Capacity:
-
2-5t/h
-
Color:
-
Customers' Demand
-
Advantage:
-
High Efficiency Low Energy Consumption
-
End product:
-
Rubber Particle
-
Machine Type:
-
Semi-automatic Tire Recycling Machine
-
Product name:
-
Tyre Rubber Shredder
In order to better give you professional answers, when sending an inquiry, please describe your requirements (such as: processed raw materials, output size,capacity, etc.) and attach your contact information (such as phone number, email, facebook, whatsapp ,WeChat, etc.).
Portable tyre shredder tire grinding shedder machine for rent
Waste tire processing equipment is a large-scale complete set of equipment that completely separates the three major raw materials contained in the tire: rubber, steel wire, and fiber at room temperature and realizes 100% recycling.
Product Description
Portable tyre shredder tire grinding shedder machine for rent

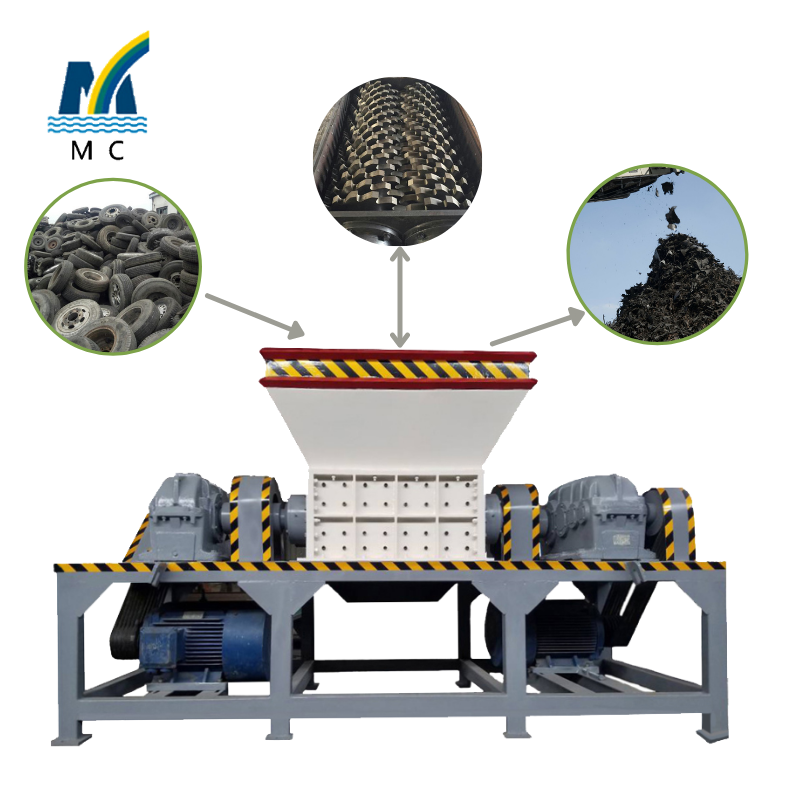

is the principle of the waste solid reduction of the double knife shaft extrusion shear tire rubber shredding machine equipment. It can deal with the recycling and shredding operation of bicycle tires, automobile tires, large engineering tires, motorcycle tires, waste rubber and other waste materials. Tire shredding machine has the advantages of more waste tires, low cost, less investment, by the tire shredding machine or waste tire production line fine processing, its high economic efficiency, high recovery rate, high production efficiency. The discharge is strip or block with a size of 5-20cm.
Operating principle
*First, the steel wire tire decomposing equipment decomposes the steel wire tire into blocks.
*Then the tire block is broken into (5-10cm) blocks by the tire shredder.
*After the steel wire separator: the rubber and the steel wire are separated and processed into rubber particles. (10mm-20mm).
* In the rubber pellet machine: crush the rubber particles to a smaller size (1mm-7mm).
*After passing through the vibrating screen: sort the rubber particles of different sizes, and send the oversized particles back to the crusher Carry out secondary pulverization,.
*Then fiber separator: remove foreign matter and fibers, then enter the rubber mill at room temperature for fine grinding, processed into fine rubber powder with a fineness of 5-80 mesh,
*Finally bagged after a magnetic separation process Sales.
Crusher effect
The waste tires are shredded, crushed, milled, separated from the steel wire, separated from nylon, and screened to make pure rubber powder, steel wire and nylon, which can be directly sent to the corresponding factories as industrial raw materials. For example, steelmaking, textiles, construction, building materials, etc.
Application Areas
Portable tyre shredder tire grinding shedder machine for rent
has been designed for a wide array of applications and industries, suitable for shredding solid material such as tire, car tire, bicycle tires, motorcycle tires, car tires, truck tires, engineering tires, rubber products, carpet padding, rubber floor material, patio deck, livestock mats, sidewalk and etc.
1.Civil Engineering Applications:They can be used as landfill gas trench collection walls, as back fill for road landslide repair,as vibration reducing material for railway lines and as back fill for maintaining walls.
2.Ground and Crumb Rubber: For example, it can be used in paving projects or be moulded into products. Common examples of rubber moulded products include carpet padding, rubber flooring materials, patio decks, livestock mats, movable speed bumps, sidewalks,dock bumpers, railroad crossing blocks just to mention but a few.
3.Carbon Source:Instead of using coke or coal in steel mills, rubber can be used as a source of fuel. In fact, studies have recommended that steel mills should adopt burning of rubber as fuel instead of coal, since coal is mined and can be depleted. Using rubber as fuel is a great way for these mills to go green and reduce their carbon fingerprints.
Main parameters of product performance
|
Model
|
MC-600
|
MC-800
|
MC-1000
|
MC-1200
|
MC-1600
|
MC-1800
|
MC-2000
|
|
Spindle power
(Kg)
|
15*2
|
22*2
|
37*2
|
45*2
|
55*2
|
75*2
|
90*2
|
|
Spindle speed
(r/min)
|
20
|
20
|
18
|
18
|
18
|
18
|
18
|
|
Yield
(t/h)
|
0.8-1.0
|
1.0-1.5
|
2.5-3.0
|
3.0-5.0
|
5.0-8.0
|
8.0-10.0
|
10.0-15.0
|
|
Number of cutters
|
24
|
32
|
22
|
28
|
40
|
44
|
50
|
|
Particle size
(mm)
|
3.0-10.0
|
3.0-10.0
|
3.0-10.0
|
3.0-10.0
|
3.0-10.0
|
3.0-10.0
|
3.0-10.0
|
|
Silo size
(mm)
|
600-800
|
800-1000
|
1000-1200
|
1200-1500
|
1600-1800
|
1800-2000
|
2000-2200
|
|
Dimension
(mm)
|
3500*1500*2500
|
4800*1800*2500
|
3800*2000*2800
|
6400*2200*3000
|
6800*2300*3200
|
7300*2500*3500
|
8000*2800*3800
|
|
Weight
(Kg)
|
3200
|
3800
|
4800
|
5600
|
6200
|
7000
|
8000
|
Different types of knife rollers
T
he advantage of our machine blades
The blade material is made of special alloy tool steel forging banks, precision machining, multiple heat treatments, and low temperature freezing heat treatment technology. ►The overall toughness of hardness can be used repeatedly. - Customized according to clients raw-materials thickness and finished Product Size - SKD11 high alloy steel material - Hardness ≥62-65 HRC - Strong impact resistance - Good toughness and surface hardness - 100% ultrasonic nondestructive inspection
2. Tire cutter machine
3. Tire crusher machine
4. Tire sperating machine( sperate the metal, fiber, rubber)
5. Tire powder making machine
Related machines
1. Tire bead ( steel wires) removing machine
2. Tire cutter machine
3. Tire crusher machine
4. Tire sperating machine( sperate the metal, fiber, rubber)
5. Tire powder making machine
Packing & Delivery
Related Products
Why choose us?
Direct sales from the factory to save costs and genuine product with excellent quality.
Professional designers provide customized services for free.
24 hours online after-sales service.
The products made with advanced technology are trustworthy.
We'll ship the products as soon as possible.
Company Introduction
Henan Mingchuang machinery manufacturing co., LTD. is a suppler with specialized in providing the crushing, sorting, drying equipment, and environmental protection machine. With long-term committing to produce multi-functional shredding machine,crusher,copper granulator recycling equipment, plastics recycling pelleting machine, oil press machine, etc We always adhere to provide highly customized solutions, according to the needs of customers with advanced technology and excellent product quality .we have won the recognition of industry users. For a long time,we always insist on the path of globalization, at the same time of constantly expanding the domestic market share, we have exported to more than 130 countries and regions,which includes Europe,Africa, central Asia, southeast Asia, South America, North America and so on. Whats more we always keep close strategic cooperation with our customers, and provide high quality products and timely professional services.
