Quick Details
-
Fork Length:
-
1200mm
-
Weight (KG):
-
38680 kg
-
Type:
-
Powered Pallet Truck
-
Loading Capacity:
-
9000kg
-
Load Center Distance:
-
500mm
-
Lift Height:
-
16000mm
-
Max. Gradeability:
-
20%
-
Wheelbase:
-
4500mm
-
Min Ground Clearance:
-
300mm
-
Battery:
-
12/105 v/h
-
Engine:
-
USA cummin
-
After Warranty Service:
-
Field maintenance and repair service
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Vmax
-
Fork Length:
-
1200mm
-
Weight (KG):
-
38680 kg
-
Type:
-
Powered Pallet Truck
-
Loading Capacity:
-
9000kg
-
Load Center Distance:
-
500mm
-
Lift Height:
-
16000mm
-
Max. Gradeability:
-
20%
-
Wheelbase:
-
4500mm
-
Min Ground Clearance:
-
300mm
-
Battery:
-
12/105 v/h
-
Engine:
-
USA cummin
-
After Warranty Service:
-
Field maintenance and repair service
Product Description

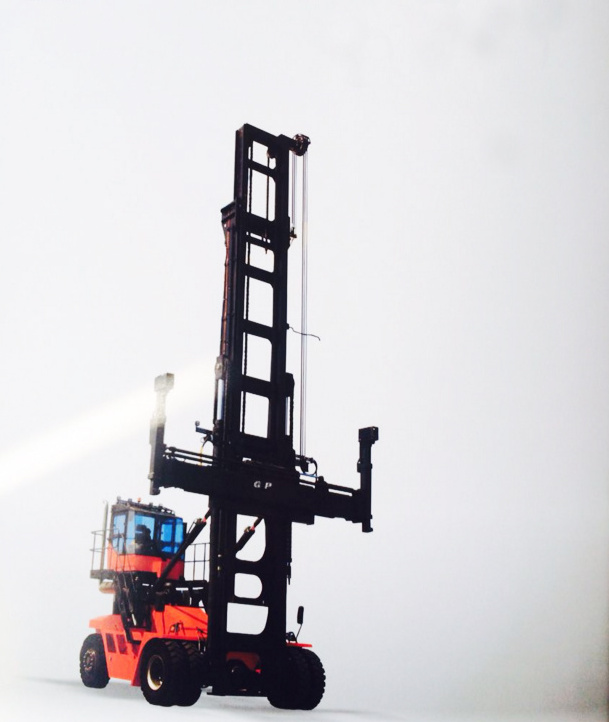

Empty container handler
| model | ZLG90/8 | ZLG90/7 | ZLG80/7 | ZLG80/6 | |
| load capacity | kg | 9000 | 9000 | 8000 | 8000 |
| Maximumstacking layer | 8 | 7 | 7 | 6 | |
| Lift speed, laden/unladen | m/s | 0.55/0.6 | 0.55/0.6 | 0.55/0.6 | 0.55/0.6 |
| Lowering speed, laden/unladen | m/s | 0.6/0.6 | 0.6/0.6 | 0.6/0.6 | 0.6/0.6 |
| Travel speed, laden/unladen | km/h | 26/28 | 26/28 | 25/27 | 25/27 |
| Climbing ability, laden/unladen | % | 38/- | 38/- | 30/- | 30/- |
| Tractive force | KN | 157.5 | 157.5 | 107.5 | 107.5 |
| Wheelbase | mm | 4520 | 4520 | 4020 | 4020 |
| Height of mast, lowered | mm | 12399 | 11111 | 11091 | 9600 |
| Tilt angle (forward /backward) | α/β( / °) | 3/4 | 3/4 | 3/4 | 3/4 |
| Height of mast, extended | mm | 21818 | 19244 | 19204 | 16660 |
| Height of cabin | mm | 4326 | |||
| Height, operator's seat | mm | 3226 | 3226 | 3206 | 3206 |
| Twistlock height, lowered | mm | 2290 | |||
| Maximum twistlock height | mm | 21216 | 18642 | 18600 | 16290 |
| Overall length | mm | 6850 | 6850 | 6450 | 6450 |
| Length to spreader face | mm | 6682 | 6682 | 6277 | 6277 |
| Overall width | mm | 4120/2570 | 4120/2570 | 3627/2398 | 3627/2398 |
| Width of spreader 20'/40' | mm | 6050/12150 | |||
| Turning radius | mm | 6300 | 6300 | 5700 | 5700 |
| Wheelspan, Front wheels | mm | 3280 | 3280 | 2880 | 2880 |
| Wheelspan, Rear wheels | mm | 2171 | 2171 | 2068 | 2068 |
| Service weight | kg | 38680 | 38280 | 33800 | 32800 |
| Axleload with load,front/rear | kg | 37220/10460 | 36610/10670 | 29050/10750 | 28650/10150 |
| Axleload without load,front/rear | kg | 22660/16020 | 22480/15800 | 20100/13700 | 19700/13100 |
| Engine manufacturer / type | Cummmins/QSB6.7 | ||||
| Cylindernumber / displacement | cm3 | 6/6700 | |||
| Rated power | kw/rpm | 168/2200 | 168/2200 | 145/2300 | 145/2300 |
| Maximumtorque | NM/rpm | 1044/1500 | 1044/1500 | 800/1500 | 800/1500 |
| Rated current of alternator | A | 100 | 100 | 70 | 70 |
| Battery | v/ah | 24/110 | |||
| transmission Manufacturer / type | ZF/3WG211AUTO | ||||
| Clutch - type | TorqueConverter | ||||
| Transmission | Auto-shift/Interlock | ||||
| Gear number | 3 F / 3 R | ||||
| Service brake: Wet-disc | |||||
| Parking brake: Brake enabled when power of | |||||
| Driver axle manufacturer | KESSLER/Germany | ||||
| Type | D81PL488-NLB | ||||
| Steering axle Manufacturer | OMCI/ Italy | OMCI/ Italy | GP | GP | |
| Steering type-Single cylinder | Doubleactioncylinder | ||||
| Drive wheels | 14.00 24 28PR | 14.00 24 28PR | 12.00 24 24PR | 12.00 24 24PR | |
| Steering wheels | 14.00 24 28PR | 14.00 24 28PR | 12.00 24 24PR | 12.00 24 24PR | |
| Pressure | 10bar | 10bar | 10bar | 10bar | |
| Quantity,Front / Rear | 4/2 | 4/2 | 4/2 | 4/2 | |
| spreader Side shift distance | ± 600mm | ± 600mm | ± 600mm | ± 600mm | |
| Working perssure for attachments | 140bar | 140bar | 140bar | 140bar | |
| For handing | 20` or 40`ISO standard container | ||||
