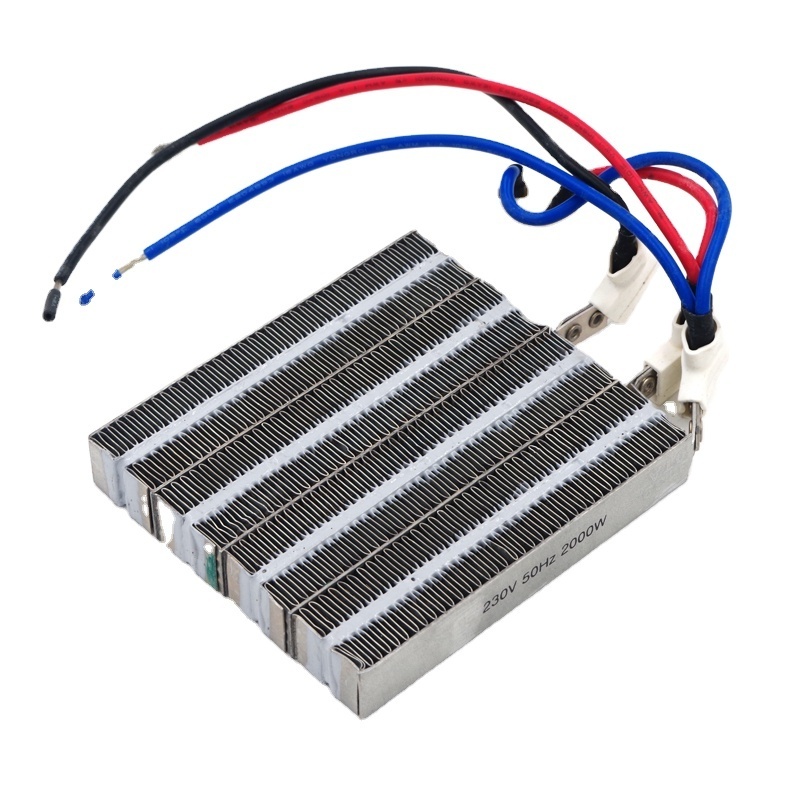

High Quality Industrial Air Heating Element PTC Ceramic Hot Air Heater Blower

PTC ceramic heater is adhesive by PTC ceramic heating components and corrugated aluminum.This type of PTC heater has the advantages of small thermal resistance, high heat transfer efficiency.And it is an automatic thermostat, power-saving electric heater. It is a prominent feature of the safety performance, will not produce such as heating tube heater surface "red" phenomenon,.It will not causing burns, fire and other security risks.

Using range:

PTC heater is widely used in commercial central air conditioning, air curtain machine, heater, clothes dryer, dehumidifier, fresh air fan, drying room equipment, large industrial air duct heating, locomotive electric heating, small household appliances, control cabinet heating and other fields.

Tenical spercification:
Working voltage: DC / ac12v-380v optional, Curie temperature: 50 ~ 260 ℃, electrical strength: 1800V / 1s, insulation resistance: > 100m Ω, leakage current: < 0.5mA, no breakdown, flashover, power tolerance + 5-10%, maximum withstand voltage: 450v-700v / min. The tolerance not noted shall be in accordance with GB / t1804-2000-m level.

Product advantages: 1. Good aging performance, power attenuation P < 10% after 20000 hours 2. Power attenuation < 10% after 1000 hours of dry burning

PTC ceramic heater using Notes:
(1) PTC heating plate with automatic temperature characteristics, do not need temperature control system, the PTC heating plate can be directly powered.
(2) When the PTC heater is used to heat the liquid (such as water), the PTC heater does not damage when the liquid is dry.
(3) If the PTC heater is used to heat the cold air, the PTC heater will not be damaged when the air is not supplied.
(5) long life, the normal use of the environment, life expectancy of up to 10 years.
(6) reliable work, the use of PTC heating film internal temperature control, never over-temperature.
(7) the working voltage is very wide: when the working voltage changes 2 times, the surface temperature changes are very small.
(8) When multiple PTC heaters are used together, they should be connected in parallel and not in series.

In order to help you to get the exact model, please offer the following necessary info:

1.Type of Heater
2.Order quantity
3.Wattage and Voltage ,Heating temp
4.Size and lead technical
5.Drawing(PDF format is more better ) or Sample
6.Using environment and max temperature
We can make many kinds of PTC ceramic heaters, as customers' request.

Q: Are you trading company or manufacturer ?
A: We are manufacturer.

Q:Sample time and delivery time ?
A: Normally it will take u about 7 days to finish the sample,and for mass production is based on quantity.

Q: What is your terms of payment ?
A: 30% TT deposit in advance and 70% balance before shipment.

For any question,please don't hesitate to ask,we would love to help.
