Brand name printer mechanism
Brand name paper presenter
High printing speed
Auto cutting(full/partial by adjustable)
Multiple detection sensors
Paper jam prevention
Support Wins/Android/Linux/Raspberry pi
- Product Details
- {{item.text}}
Quick Details
-
Max. Resolution:
-
576 dots/line
-
Brand Name:
-
MASUNG
-
Place of Origin:
-
China
-
Printing method:
-
Thermal dot line printing
-
Dots/ine:
-
576 dots/line
-
Dot pitch:
-
8 dot/mm
-
Paper width:
-
80 mm
-
Printing width:
-
72 mm
-
Paper thickness:
-
54~78 um
-
Printing speed:
-
170 mm/s
-
Paper feed direction:
-
180° horizontal
-
Head temperature:
-
Thermistor
-
Print command:
-
ESC
Quick Details
-
Max Paper Size:
-
80mm
-
Black Print Speed:
-
200 mm/s
-
Color Print Speed:
-
null
-
Max. Resolution:
-
576 dots/line
-
Brand Name:
-
MASUNG
-
Place of Origin:
-
China
-
Printing method:
-
Thermal dot line printing
-
Dots/ine:
-
576 dots/line
-
Dot pitch:
-
8 dot/mm
-
Paper width:
-
80 mm
-
Printing width:
-
72 mm
-
Paper thickness:
-
54~78 um
-
Printing speed:
-
170 mm/s
-
Paper feed direction:
-
180° horizontal
-
Head temperature:
-
Thermistor
-
Print command:
-
ESC
Product Description

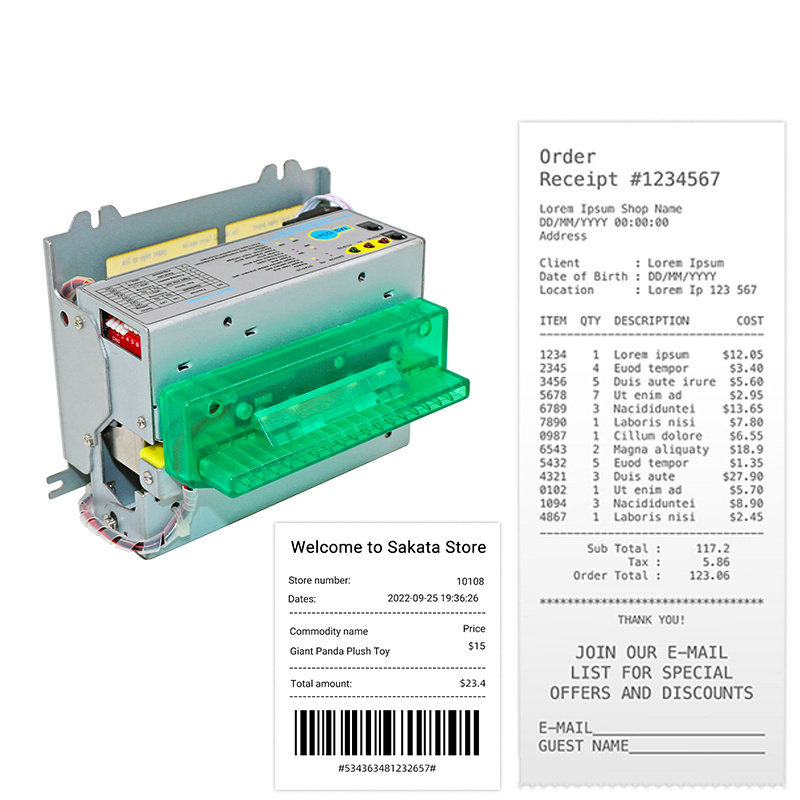

MS-D347-TL
MASUNG independently developed the 80mm embedded thermal printer MS-D347 series
1. Anti-blocking paper, anti-pull paper, paper end, paper ejector and other functions
2. The control board has a small structure and a variety of structures are designed to improve the installation reliability of the product
3. Automatic paper feeding, automatic paper cutting, paper output detection, black mark detection and other functions
4. Equipped with a variety of brackets to facilitate the installation and embedding of different devices
5. The cost of printing paper thermal paper consumables is low. The embedded thermal printer is an embedded printing module of self-service cash registers, self-service payment machines, self-service ticket machines, queuing machines and other self-service equipment.
|
Product name
|
|
|
MS-D347-TLP
|
||
|
mechanism
|
|
|
CAPD347
|
||
|
Printing method
|
|
|
Thermal dot line printing
|
||
|
Dots/line
|
|
|
576 dots/line
|
||
|
Dot pitch
|
|
|
8 dot/mm
|
||
|
Paper width
|
|
|
80 mm
|
||
|
Printing width
|
|
|
72 mm
|
||
|
Paper thickness
|
|
|
54~78 um
|
||
|
Printing speed
|
|
|
170 mm/s
|
||
|
Paper feed direction
|
|
|
180° horizontal
|
||
|
Sensors
|
Head temperature
|
|
Thermistor
|
||
|
|
Paper press shaft
|
|
Mechanical switch
|
||
|
|
Paper end
|
|
Photo interrupter
|
||
|
Paper loading
|
|
|
Easy loading
|
||
|
Font size
|
|
|
ASCII:9*17;12*24;
Chinese: 24*24 |
||
|
Power supply
|
|
Logic circuit
|
4.75~5.25 V
|
||
|
|
|
Motor
|
21.6~26.4 V
|
||
|
Dimension (L*W*H)
|
|
|
119.45*96.13*80.60mm
|
||
|
Weight
|
|
|
Approx 2.18 kg
|
||
|
Reliability
|
|
|
Circuit: over 1,000,000,000 pulses
Cutter: over 7,000,000 cuts Thermal head: over 100 km MCBF: 37,000,000 lines |
||
|
Ambient environment
|
|
Work temperature
|
-10 ℃~50℃
|
||
|
|
|
Work humidity
|
20~85% RH
|
||
|
|
|
Storage temperature
|
-25℃~70℃
|
||
|
|
|
Storage temperature
|
10~90% RH
|
||
|
Controlling board:
|
|
|
|
|
Interface
|
RS-232 /USB/Parallel
|
|
|
|
power supply
|
DC 24V/2.5A
|
|
|
|
Command set
|
ESC/POS
|
|
|
|
Barcode
|
supported
|
|
|
|
Firmware location
|
512KB Flash memory
|
|
|
|
Buffer
|
32 KB
|
|
|
|
SRAM
|
64KB (extra)
|
|
|
|
Driver
|
Parallel/USB driver
|
|
|
|
System
|
WindowsXP/Win7(32bits or 64 bits)/
Win8/Android/Linux OS |
|
|
|
Accessories:
|
Sensors
|
paper near end sensor;
|
|
|
|
|
paper jam sensor;
|
|
|
|
|
dragging paper sensor;
|
|
|
|
Paper holding unit
|
|
|
|
|
Paper guide mouth
|
|
|
|
|
Interface connector
|
|
|
|
|
Power supply unit
|
|
|
|
|
Cable
|
|
|
Company Introduction
Shenzhen Masung Technology Co., Ltd.
(Here in after referred to as MASUNG)
MASUNG is one hi-tech innovative enterprise engaged in receipt printers of design,production, marketing and service, our main products cover with kiosk printer, mobile printer, POS printer, wireless printer, panel printer and special type printer. And those printers are widely used for variety of industries, including commercial, finance, catering, postal, telecom,transportation, medical, vehicle and more.
MASUNG originally founded in 2002 and registered in 2006. its brand same with name “MASUNG”. Company headquarter locates in Shenzhen city, in here we also built design and producton base, ran our own circuit board processing and machinery plants. MASUNG first branch company had been set up in 2008 in Hong Kong. Over years of development, MASUNG ran up representative offices in china domestic cities including Beijing, shanghai, Guangzhou, Wu Han and so on. Meanwhile, our products also worked in international markets.
MASUNG is deep insight into customer’s printer demands and keep on launching new products every month.
MASUNG is one hi-tech innovative enterprise engaged in receipt printers of design,production, marketing and service, our main products cover with kiosk printer, mobile printer, POS printer, wireless printer, panel printer and special type printer. And those printers are widely used for variety of industries, including commercial, finance, catering, postal, telecom,transportation, medical, vehicle and more.
MASUNG originally founded in 2002 and registered in 2006. its brand same with name “MASUNG”. Company headquarter locates in Shenzhen city, in here we also built design and producton base, ran our own circuit board processing and machinery plants. MASUNG first branch company had been set up in 2008 in Hong Kong. Over years of development, MASUNG ran up representative offices in china domestic cities including Beijing, shanghai, Guangzhou, Wu Han and so on. Meanwhile, our products also worked in international markets.
MASUNG is deep insight into customer’s printer demands and keep on launching new products every month.
FAQ
1. About Price:
The price is negotiable. It can be changed according to your quantity or package. When you are making an inquiry,
please let us know the quantity you want.
please let us know the quantity you want.
2. About Sample:
Sample is Free, but the air freight is collect or you pay us the cost in advance.
3. About language and operation system:
Our printers support 48 diffrent languages include Englishi,Russian,Spanish
and so on.It backups IOS, Android, Windows, Linux, Oppos operation systems.
4. About warranty:
Each printer will have one year (12months) warranty. Free components will be offered for repair in warranty period, if the issue caused by non-artificial damages.
5.About MOQ :
No MOQ limitation for the standard products, but the unit price is different. For customized production, you can discuss the MOQ with our sales rep.
6. About Shipment:
We accept all kinds of shipping ways including: express, air, sea, car, or pick up by customers personally.
7. About Payment :
Terms For mass order, you can pay us by using T/T, LC, or others. About samples order, T/T, Paypal alibabare acceptable.
7. About Payment :
Terms For mass order, you can pay us by using T/T, LC, or others. About samples order, T/T, Paypal alibabare acceptable.
Currently,you can pay using Moneybookers, Visa, MasterCard and bank transfer.
