Quick Details
-
Brand Name:
-
Zhongding or as customized
-
Voltage:
-
220V or 380V
-
Dimension(L*W*H):
-
1800*750*1000mm
-
Weight (KG):
-
370 KG
-
Power (kW):
-
3
-
Product name:
-
MB504-Electric Wood Planer Machine Woodworking Planer for Furniture
-
Model:
-
MB504
-
Function:
-
Surface Planer
-
Max. Planing Width:
-
400mm
-
Max planing depth:
-
4mm
-
Installation Power:
-
3kw
-
Main Spindle Speed:
-
5800r/min
-
Working table dimention:
-
1800*445mm
-
Weight:
-
370kg
Quick Details
-
Max.Planing Depth(mm):
-
4 mm
-
Max.Planing Width(mm):
-
400
-
Place of Origin:
-
China
-
Brand Name:
-
Zhongding or as customized
-
Voltage:
-
220V or 380V
-
Dimension(L*W*H):
-
1800*750*1000mm
-
Weight (KG):
-
370 KG
-
Power (kW):
-
3
-
Product name:
-
MB504-Electric Wood Planer Machine Woodworking Planer for Furniture
-
Model:
-
MB504
-
Function:
-
Surface Planer
-
Max. Planing Width:
-
400mm
-
Max planing depth:
-
4mm
-
Installation Power:
-
3kw
-
Main Spindle Speed:
-
5800r/min
-
Working table dimention:
-
1800*445mm
-
Weight:
-
370kg

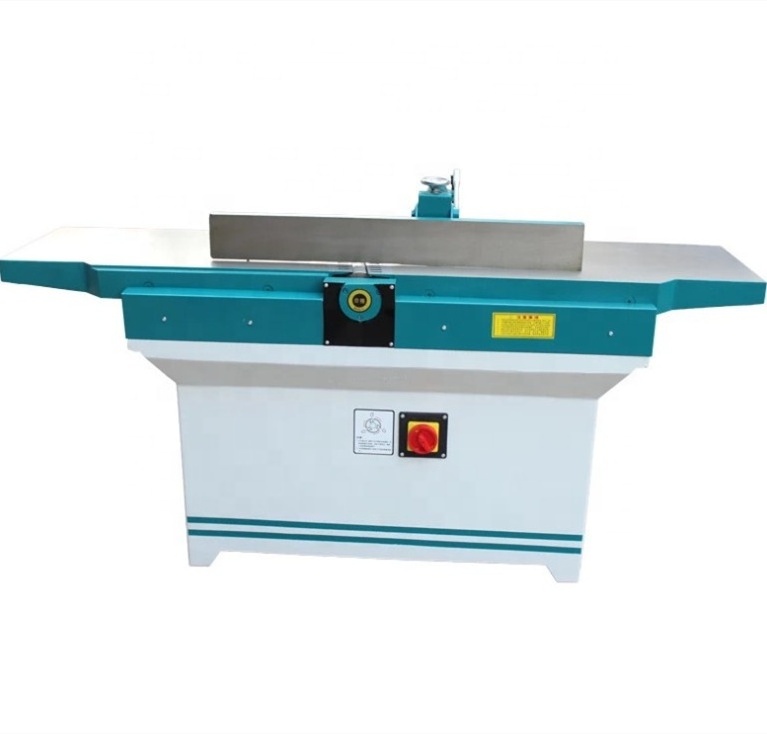

PRODUCT OVERVIEW
wood surface planer
width is available as 300 mm, 400 mm, 500 mm, table length is 1800 mm, 2000 mm, 2200 mm, 2500 mm. blade optional is spiral cutter. basic mode is a flat cutter spindle. the machine mainly used to planing the surface of the wood.
DETAILS OF MACHINE
Table
table is made by our special cast iron, is more strong than others, and more durable.
table have
micro adjusting. make sure the machine can work long time in high precision.
high quality motor
Machine motor is heavy duty model, lower noisy, long time working stable and powerful.
TECHNICAL PARAMETERS
|
Max processing width
|
400mm
|
500mm
|
|
Max planing depth
|
4mm
|
4mm
|
|
Installation power
|
3kw
|
4kw
|
|
Main Spindle speed
|
5800r/min
|
6000r/min
|
|
Working table dimension
|
1800*445mm
|
1800*545mm
|
|
Weight
|
370kg
|
420kg
|
|
Overall dimensions
|
1800*750*1000mm
|
1800*850*1000mm
|
