Quick Details
-
Light Source:
-
LED
-
Lifespan (hours):
-
100000
-
Working Time (hours):
-
100000
-
Product Weight（kg）:
-
8
-
Input Voltage(V):
-
AC220
-
Lamp Luminous Flux(lm):
-
3200
-
CRI (Ra):
-
80
-
Beam Angle(°):
-
360
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FPFB
-
Certification:
-
CCC
-
Ex-proof Mark:
-
Exd II CT6 Gb, DIP A21 TA,T6
-
Rated voltage:
-
AC220V
-
Protection grade:
-
IP66
-
Inlet thread:
-
G3/4"
-
Anti-corrosion:
-
WF1, WF2
-
Cable outer dia:
-
9mm-14mm
-
Guide number:
-
22~115/min
-
Application:
-
IIC, DIP
-
Rated power:
-
LED:8W,24W,40W Xenon lamp:40W
Quick Details
-
Warranty(Year):
-
2-Year
-
Color Temperature(CCT):
-
Warm White
-
Lamp Body Material:
-
Aluminum Alloy
-
Light Source:
-
LED
-
Lifespan (hours):
-
100000
-
Working Time (hours):
-
100000
-
Product Weight（kg）:
-
8
-
Input Voltage(V):
-
AC220
-
Lamp Luminous Flux(lm):
-
3200
-
CRI (Ra):
-
80
-
Beam Angle(°):
-
360
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FPFB
-
Certification:
-
CCC
-
Ex-proof Mark:
-
Exd II CT6 Gb, DIP A21 TA,T6
-
Rated voltage:
-
AC220V
-
Protection grade:
-
IP66
-
Inlet thread:
-
G3/4"
-
Anti-corrosion:
-
WF1, WF2
-
Cable outer dia:
-
9mm-14mm
-
Guide number:
-
22~115/min
-
Application:
-
IIC, DIP
-
Rated power:
-
LED:8W,24W,40W Xenon lamp:40W

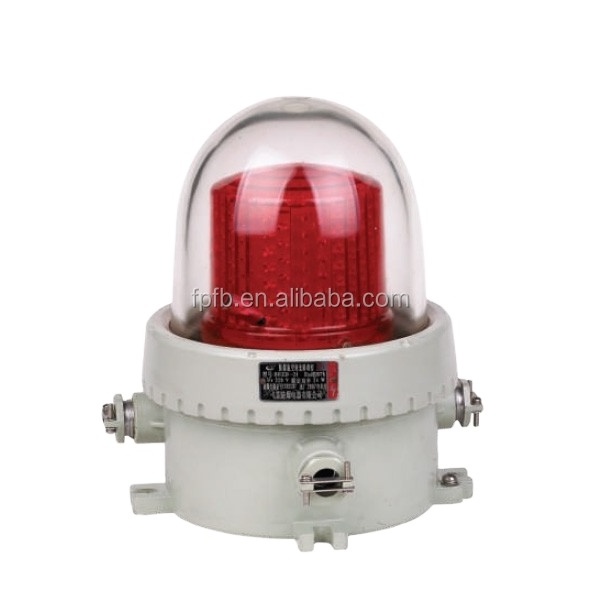

Lowest price Explosion proof LED aircraft warning Lights
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category II A and II B and II C where the temperature classification is T1-T4.
3. Hazardous zone : 20. 21. and 22
4. Flammable dust atmosphere.
5. widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.
|
Voltage |
Guide Number |
Light source |
INLET THREAD |
Ex-mark |
Degree of protection |
Erosionproofclass |
cableouterline (mm) |
|
AC220V |
22~115/min |
LED, Xenon lamp |
G 3 /4" |
Exed II CT6 Gb, DIP A21 TA, T6 |
IP66 |
WF1,WF2 |
Φ 9- Φ 14 |
APPlications:
- Suitable for explosive gas environment Zone1 and Zone2.
- Suitable for IIA,IIB,IIC explosive gas environment.
- Suitable for Hazarous dust area: Zone20, Zone21, Zone22.
- Can be used in the environment of temperature group for T1~T6.
- Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.
- Used for drilling platform, layered architecture, tall and tall storage facilities as well as building material, for aviation obstacle indicator.
Techinical parameters:
- Meet a criterion:G3B3836.1, GB3836.2, GB3836.3, GB12476.1,IEC60079
- Ex-proof Mark:Exd II CT6 Gb, DIP A21 TA, T6.
- Rated voltage: AC220V
- Ligting Source:LED(≤8W, ≤ 24W, ≤ 40W), Xenon lamp( ≤ 20W)
- Flash frequency: 22~115/min
- Protection grade: IP66
- Corrosion-proof grade:WF1,WF2
- Inlet Thread: G 3 /4"
- Cable outer dia:9mm~14mm
Product Features:
- Aluminium alloy Enclosure,high-pressure electrostatic powder coated after shot blasted.
- Compact structure and nice appearance.
- High impact resistance tempered glass cover durable for hazardous occasions of rain, snow, hail, high temperature etc.
- High brightness red LED, long lifetime over 100000 hours and high brightness, saving energy, maintenance free.
- Automatic light control function, automatically switch on at night or misty day, switch off in normal daytime, and high reliability.
- Two or more lamps can be connected for synchronic flash, or customized for remote or central control.
- Steel conduit or cable wirings.
