Quick Details
-
Frame:
-
Metal
-
Main material:
-
Alluminum Alloy
-
Frame material:
-
Powder Coated
-
Fabric Cover:
-
Double Coated PVC
-
Color of Fabric:
-
Sand White
-
Width of Tent:
-
3-50m
-
Eave Height:
-
Standard 2.5m, 3m, 4m, 5m upon span width
-
Max Wind Allowed:
-
100km/h
-
Function:
-
Waterproof, Fire-retardant, Sunlight proof
-
Fire-retardant Grade:
-
M2, B1, DIN4102
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MST
-
Model Number:
-
MSTLP
-
Frame:
-
Metal
-
Main material:
-
Alluminum Alloy
-
Frame material:
-
Powder Coated
-
Fabric Cover:
-
Double Coated PVC
-
Color of Fabric:
-
Sand White
-
Width of Tent:
-
3-50m
-
Eave Height:
-
Standard 2.5m, 3m, 4m, 5m upon span width
-
Max Wind Allowed:
-
100km/h
-
Function:
-
Waterproof, Fire-retardant, Sunlight proof
-
Fire-retardant Grade:
-
M2, B1, DIN4102
Huge party tents for sale Canada, wedding party tent 20x50
============================>>Size Specification<<==========================
1) Size: from 3 meters to 50meters
2) Eave height: standard from 2.5m, 3m, 4m to 5m upon span width (or special height per requested)
3) Length: Unlimited, extended by 3m or 5m each bay
|
Span(width) |
Side height |
Ridge height | Longest part | Main profile(mm) |
Bay distance |
| 3m | 2.5m | 3m | 2.7m | 36*71*2.5 | 3m |
| 6m | 2.5m | 3.5m | 3.2m | 48*84*3 | 3m |
| 8m | 2.5m | 3.9m | 4.3m | 48*84*3 | 3m |
| 9m | 2.5m | 4.1m | 4.8m | 48*84*3 | 3m |
| 10m | 2.5m | 4.3m | 5.3m | 48*84*3/48*100*3 | 3m |
| 12m | 3m | 5m | 6.3m | 68*122*3 | 5m |
| 15m | 3m | 5.4m | 7.9m | 108*150*3 | 5m |
| 18m | 3m | 5.9m | 9.5m | 112*203*4 | 5m |
| 20m | 4m | 7.2m | 10.6m | 112*203*4 | 5m |
| 25m | 4m | 8m | 10.6m | 112*203*4 | 5m |
| 30m | 4m | 8.8m | 10.6m | 113*259*5 | 5m |
| 35m | 4m | 9.6m | 10.6m | 120*300*5 | 5m |
| 40m | 4m | 10.5m | 11.1m | 120*300*5 | 5m |
| 45m | 4m | 11.3m | 11.1m | 128*350*5 | 5m |
| 50m | 4m | 12.2m | 11.1m | 128*350*5 | 5m |
|
The length can be extended by 3m such as 6m,12,18m,30m... or by 5m bay such as 15m,20m,30m,40m... Customized size or shape is available |
|||||
============================>>Detailed Specification<<=========================
Our tent structure is well designed for strong wind and snow load, and it is easy to assembly and disassembly.
*
Frame struss: hard pressed extruded aluminium 6061/T6(15HW) which can last more than 15 years.
*
Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
*
Connector: strong hot-dip galvanized steel
*
Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
*
Wind load: max.100km/h (can be reinforced)
*
Snow load: 25kg/sqm (snow can't stay if use big degree roof pitch design)
*
Easy to be assembled and dismantled, movable.
*
No pole inside, 100% available interior space.
============================>>Product Show<<==========================

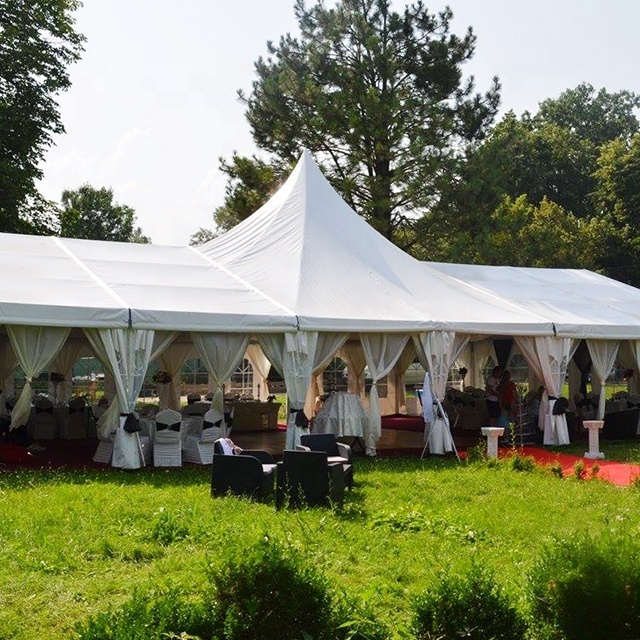

Meister Standard Tent could be widely used for temporary outdoor exhibitions,wedding parties, festival celebrations, conferences, sports and other events, and also be a good solution of temporary warehouse, workshop and emergency relief and other purposes.
Huge party tents for sale Canada, wedding party tent 20x50
Huge party tents for sale Canada, wedding party tent 20x50
