Quick Details
-
Cutting Area:
-
1300*2500mm
-
Cutting Thickness:
-
according to materials
-
Control Software:
-
Ruida
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
igoldencnc
-
Weight (KG):
-
1300 KG
-
Laser tube:
-
Seal Co2 Laser Tube
-
Laser cooling:
-
water cooling
-
Laser power:
-
60W/80W/100W/120W/150W
-
Engraving Speed:
-
0-60000 mm/min
-
Worktable:
-
honey-comb or aluminum knife optional
-
Transmission:
-
Belt transmission (Standard)
-
Linear Rail:
-
Taiwan HIWIN linear rail
-
Water Cooling:
-
Water chiller CW 3000/CW5000/CW5200
-
Voltage:
-
AC220v-50HZ/15A
-
key words:
-
1610 laser cutting machine
-
After-sales Service Provided:
-
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
United Kingdom, United States, Italy, France, Germany
-
Showroom Location:
-
United Kingdom, United States, Italy, France
-
Marketing Type:
-
New Product 2020
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-60000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Cutting Area:
-
1300*2500mm
-
Cutting Thickness:
-
according to materials
-
Control Software:
-
Ruida
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
igoldencnc
-
Weight (KG):
-
1300 KG
-
Laser tube:
-
Seal Co2 Laser Tube
-
Laser cooling:
-
water cooling
-
Laser power:
-
60W/80W/100W/120W/150W
-
Engraving Speed:
-
0-60000 mm/min
-
Worktable:
-
honey-comb or aluminum knife optional
-
Transmission:
-
Belt transmission (Standard)
-
Linear Rail:
-
Taiwan HIWIN linear rail
-
Water Cooling:
-
Water chiller CW 3000/CW5000/CW5200
-
Voltage:
-
AC220v-50HZ/15A
-
key words:
-
1610 laser cutting machine
-
After-sales Service Provided:
-
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
United Kingdom, United States, Italy, France, Germany
-
Showroom Location:
-
United Kingdom, United States, Italy, France
-
Marketing Type:
-
New Product 2020

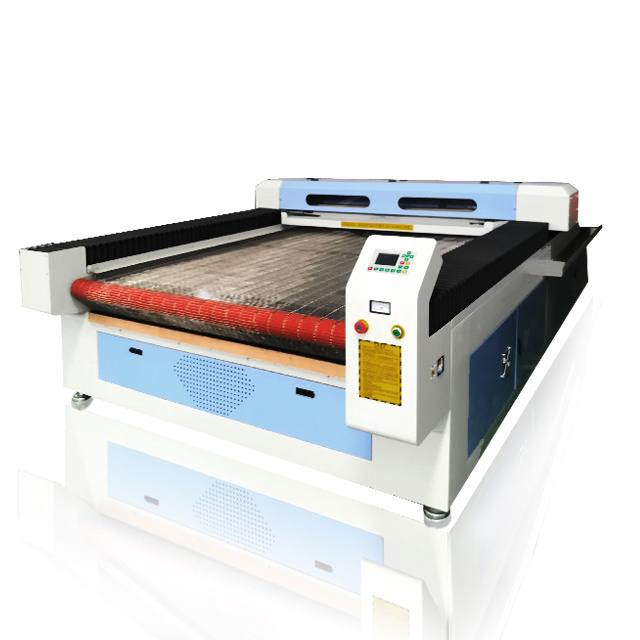

1610 1625 1630 auto feeding cloth textile fabric laser cutting machine price
1. Technical Parameters laser cutting machine
|
NO. |
Description |
Parameters |
|
1 |
Working Area |
1300x2500mm |
|
2 |
Laser Power |
60W/80W/100W/130W/150w |
|
3 |
Laser Type |
CO2 sealed laser tube |
|
4 |
Engraving Speed |
8m/min |
|
5 |
Cutting Speed |
7m/min |
|
6 |
Power supply |
220V/50HZ 110V/60HZ |
|
7 |
Min. shaping character |
English 1.0*1.0mm |
|
8 |
Graphic format supported |
BMP, PLT,DST,DXF,AL |
|
9 |
Software supported |
CorelDraw,PhotoShop,AutoCAD,TAJIMA |
|
10 |
Driving motor |
stepper motor |
|
11 |
Operating System Platform |
Windows XP Vista |
|
12 |
Running Environment |
Temperature:0 degree~45 degree |
|
13 |
Equipment Dimension |
3550*1910*1070mm |
|
14 |
Packing Dimension |
3660*2210*1300mm |
|
15 |
Net Weight |
800KG |
2. Machine features
laser cutting machine
1. Adopt high efficiency laser tube and more stable beam.
2.With the function of restoring from power off,continuation on break point.
3.Advanced DSP control system, professional motion control chip,consecutive high speed curve cutting and the shortest path selection function improve the efficiency..
4. Red light positioning device indicates the location of laser head,eliminate the trouble about manual positioning.
3.
Applicable Industries
laser cutting machine
1.
Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould,seal,etc
2.Woodworking: MDF,wooden mould, wood planks,bamboo, density board
3.Decoration: acrylic, organic glass, double color board, coconut shell, ox horn, ABS board,lamp shade,crafts,crystal,glass,ceramic,stone,metal coating,etc.
4.Clothing: leather,cloth,texitle,shoes,fabric,etc
Q1: How to get the most suitable model with competitive price?
Please tell me what’s material you want to cutting or engraving ?
And what’s MAX size of carved material ? Do you mainly engrave or cut? If cut,What is your Max.cutting thickness? would you mind showing me your sample pictures?
Q2: How about your company’s control system?
We set up a special QUALITY CONTROL DEPARTMENT inside of the factory.Therefore there is a strict control for each process,and we have regulated the standards for welding process, machining process, assembly process, manufacturing process and packaging process,etc.
Q3: Does machine comes with software?
Yes, we send you software free.
