Quick Details
-
Brand Name:
-
START
-
Voltage:
-
220v/380v
-
Power:
-
7.5
-
Dimension(L*W*H):
-
customized
-
Weight:
-
7000 kg
-
Product name:
-

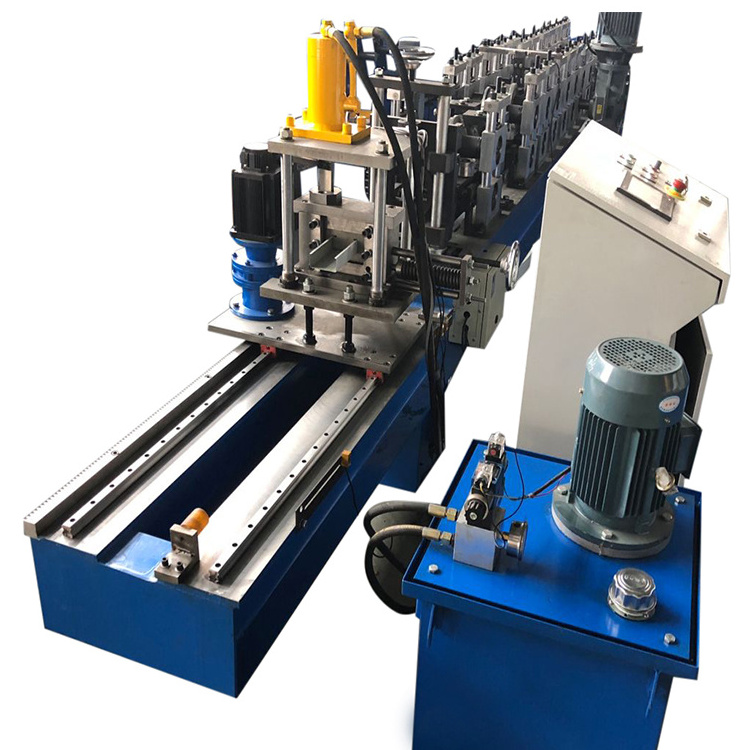

LGS Framing Machine
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Usage:
-
Construction Building Material
-
Keywords:
-
Light Gauge Steel Framing Machine
-
Shaft material:
-
45# High Grade Steel
-
Roller material:
-
Cr12
-
Control system:
-
PLC(imported Brand)
-
Raw material:
-
Steel Coil
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Production Capacity:
-
10-20 m/min
-
Place of Origin:
-
Jiangsu, China, China
-
Brand Name:
-
START
-
Voltage:
-
220v/380v
-
Power:
-
7.5
-
Dimension(L*W*H):
-
customized
-
Weight:
-
7000 kg
-
Product name:
-
LGS Framing Machine
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Usage:
-
Construction Building Material
-
Keywords:
-
Light Gauge Steel Framing Machine
-
Shaft material:
-
45# High Grade Steel
-
Roller material:
-
Cr12
-
Control system:
-
PLC(imported Brand)
-
Raw material:
-
Steel Coil
Specification
Raw Material:
1. Strip width：178~180mm
2. Strip thickness：0.75~1.2mm
3. Coil inner diameter：φ430~590mm
4. Maximum outer diameter of coil：φ1300mm
5. Coil weight：3 ton
6. Coil material：G550
7. Crescent steel coil≤5mm/10m
8. The amount of unilateral coil tower≤50mm
The function of the decoiler :
to carry and rotate the steel strip coil,it has a micro braking device to prevent movement whenemergency stop.
1. Drive mode: electric drive
2. Loading weight: 3.0T
3. Inside diameter：430-590mm
4. Outside diameter: 1300mm
1. Drive mode: electric drive
2. Loading weight: 3.0T
3. Inside diameter：430-590mm
4. Outside diameter: 1300mm
Structure:
steel plate structure on both sides
1. Total machine weight: 3.5T.
2. The total length of the machine: (L) 4.5m x (wide) 1.1m x (high) 1.4m.
3. Forming Nos: 14
4. Main drive: servo motor (7.5KW) + precision planetary gear reducer
5. Production speed: high speed 48m/min (it's up to the number of punch and shear length)
6. Machine colour：according to the factory
1. Total machine weight: 3.5T.
2. The total length of the machine: (L) 4.5m x (wide) 1.1m x (high) 1.4m.
3. Forming Nos: 14
4. Main drive: servo motor (7.5KW) + precision planetary gear reducer
5. Production speed: high speed 48m/min (it's up to the number of punch and shear length)
6. Machine colour：according to the factory
