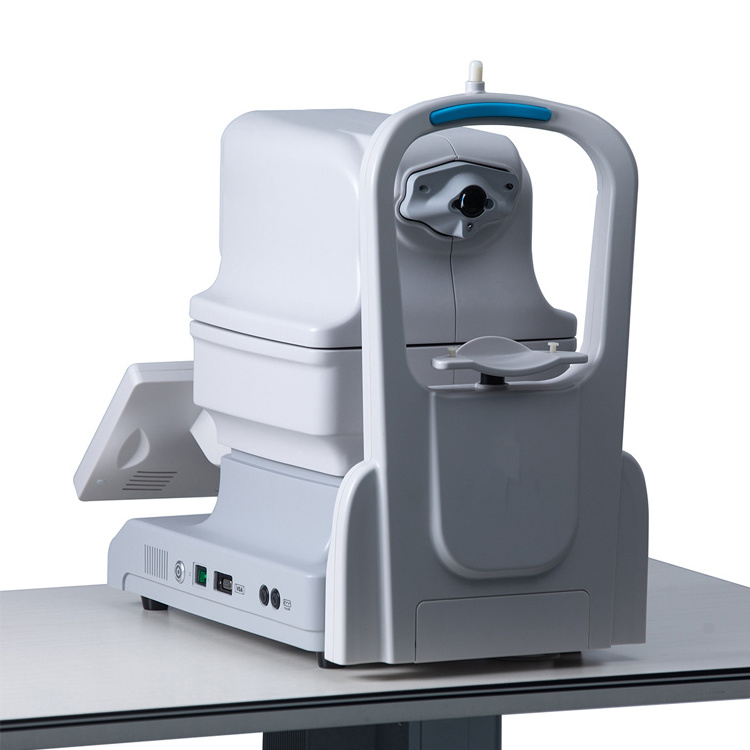

Hot Selling Mini Ophthalmic Equipment Non-mydriatic Digital Eye Retinal Auto Fundus Camera

Technical parameters

(1) Acquisition mode: Color

(2) Control mode: alignment mode of eyes: manual/auto; focusing mode: manual/Auto focusing; exposure mode; full auto mode/manual mode .

(3) One-click operation, automatically imaging for left and right eyes continuously , and no need for separate selecting eye position.

(4) View angle: Field angle is 50°;

(5) Compensation range for ametropia: ±20D

(6) Image resolution: 3264×2488 pixel

(7) Acquisition pixel: 8 million

(8) Light source for observation: Color rendering index: Ra≥85%

(9) Light source for shooting: Xenon lamp

(10) Operating distance: 35mm

(11) Minimum filmique pupil diameter: ≥3.3mm

(12) Inner fixation lamp: 9-orientation fixation + adjustable fixation points

(13) Outer fixation lamp: LED

(14) Motion range of the 3D platform: 30mm in the up-down direction, 90mm in the right-left direction, 40mm in the front-rear direction

(15)Motion range of the chin rest: 60mm in the up-down direction
