Quick Details
-
Dimension(L*W*H):
-
1640x1670x1920mm
-
Weight (KG):
-
1200
-
Power (kW):
-
1.5
-
Dia of hole honed:
-
35-170mm
-
Max depth of hole honed:
-
320mm
-
spindle speed:
-
120,160,225,290rpm
-
Stroke:
-
35,44,65spm
-
spindle lifting/lowering speed:
-
0-30m/min
-
Table swivel:
-
0,30,45°
-
Max manual table lifting:
-
180mm
-
POwer of honing head motor:
-
1.5kw
-
Power of cooling pump motor:
-
0.125kw
-
Inside cavity dimensions:
-
1400x870mm
Quick Details
-
Place of Origin:
-
CHINA JIANGSU
-
Brand Name:
-
SMAC
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
1640x1670x1920mm
-
Weight (KG):
-
1200
-
Power (kW):
-
1.5
-
Dia of hole honed:
-
35-170mm
-
Max depth of hole honed:
-
320mm
-
spindle speed:
-
120,160,225,290rpm
-
Stroke:
-
35,44,65spm
-
spindle lifting/lowering speed:
-
0-30m/min
-
Table swivel:
-
0,30,45°
-
Max manual table lifting:
-
180mm
-
POwer of honing head motor:
-
1.5kw
-
Power of cooling pump motor:
-
0.125kw
-
Inside cavity dimensions:
-
1400x870mm
Recommend Products
Products Description

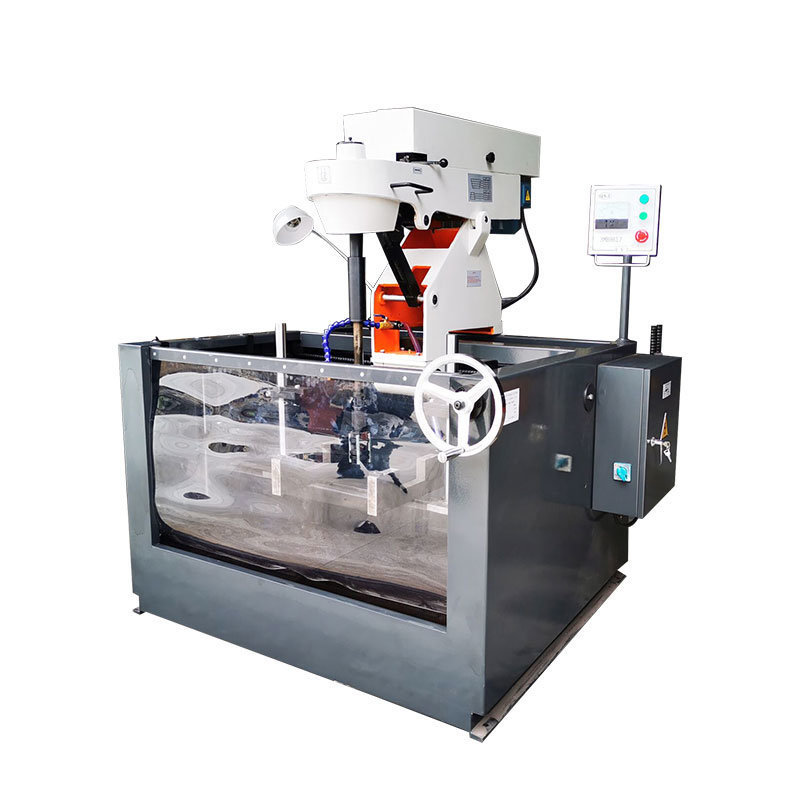

A grinding machine that uses a honing head to honing the surface of a workpiece. It is mainly used for honing workpiece holes in automobile, tractor, hydraulic parts, bearing, aviation and other manufacturing industries. There are two kinds of honing machines, vertical and horizontal.
Characteristic
The structure adopts independent air duct design, the fan can be disassembled freely, and the heat dissipation is good
No PG vector control, with PG vector control, torque control, V / F control can be selected
Powerful input and output, multi-function programmable terminal, speed regulating pulse input, two-way analog output
Specifcation
|
Model
|
Unit
|
3MQ9817
|
|
Dia of hole honed
|
mm
|
Φ35-170
|
|
Max depth of hole honed
|
mm
|
320
|
|
spindle speed
|
rpm
|
120,160,225,290
|
|
Stroke
|
spm
|
35,44,65
|
|
spindle lifting/lowering speed
|
m/min
|
0-30
|
|
Table swivel
|
°
|
0,30,45
|
|
Max manual table lifting
|
mm
|
180
|
|
POwer of honing head motor
|
KW
|
1.5
|
|
Power of cooling pump motor
|
KW
|
0.125
|
|
Inside cavity dimensions
|
mm
|
1400*870
|
|
Overall dimensions(L*W*H)
|
cm
|
164*167*192
|
|
Net weight
|
kg
|
1000
|
