Quick Details
-
Weight:
-
12000 KG
-
Marketing Type:
-
New Product 2024
-
Drilling Diameter:
-
130-250mm
-
Drilling Depth:
-
Max.400m
-
Product name:
-
RC drilling rig
-
Max open hole caliber:
-
105-400mm
-
MOQ:
-
1set
-
Engine:
-
CUMMINS
-
Drilling method:
-
Pneumatic Hammer Drilling
-
Max Drilling Depth:
-
400m
-
Application:
-
Geological Drilling
-
After-sales Service Provided:
-
7x24h
-
Air consumption:
-
16---55m3/min
-
Rotary torque:
-
5000-10000Nm
Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Xingda
-
Dimension(L*W*H):
-
7000*2100*2800mm
-
Weight:
-
12000 KG
-
Marketing Type:
-
New Product 2024
-
Drilling Diameter:
-
130-250mm
-
Drilling Depth:
-
Max.400m
-
Product name:
-
RC drilling rig
-
Max open hole caliber:
-
105-400mm
-
MOQ:
-
1set
-
Engine:
-
CUMMINS
-
Drilling method:
-
Pneumatic Hammer Drilling
-
Max Drilling Depth:
-
400m
-
Application:
-
Geological Drilling
-
After-sales Service Provided:
-
7x24h
-
Air consumption:
-
16---55m3/min
-
Rotary torque:
-
5000-10000Nm
Product Description

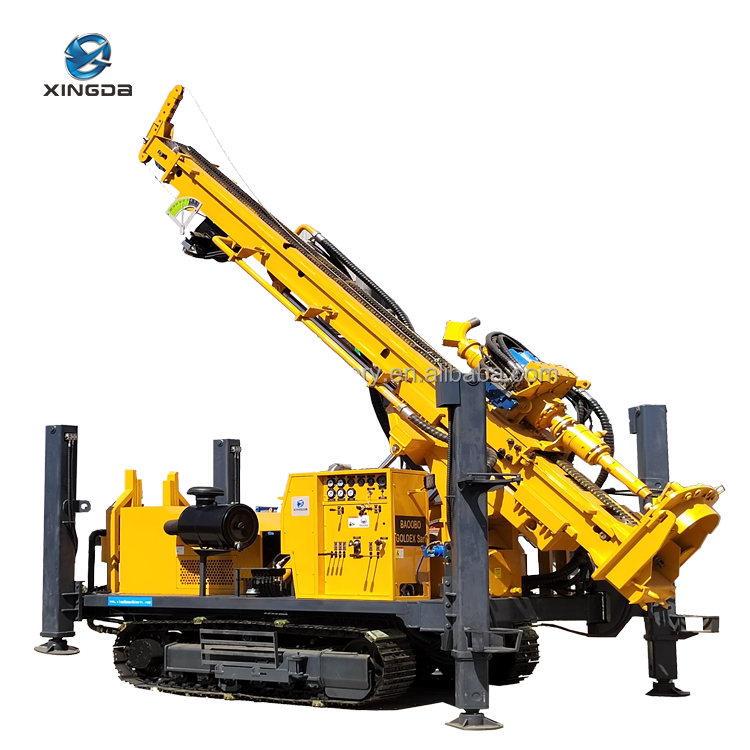

Hot Sale 500m Reverse Circulation RC Drill Rig Mine Drilling Rig For Geological Exploration
Applications：
XDL- RC series drilling rig is mounted on a crawler chassis, driven by full hydraulic system, power
head type drilling rig, which is used to drill vertical or inclined hole, and also the drilling
techniques way of the following:
Drill auger drill
Down-The-Hole hammer drill
Mud forward circle drill
ODEX tools(casing pipe following) drill with DTH hammer
Medium reverse circle drill
The drilling rig is able to resolve the difficulty of boring in the soft and loose cover
ground condition, the screes and gravels area and also the fragmentation stratum according to different drilling techniques ways.
Therefore, it is widely used in varieties of the boring work.
The drilling rig is mainly applied in RC drill/water well and observation well, geothermal hole,mini foundation pile hole.
|
Technical parameters
|
|
|
||
|
Item
|
Unit
|
XDL-500RC
|
||
|
Max drilling depth
|
m
|
500
|
||
|
Drilling diameter
|
mm
|
105-400
|
||
|
Air pressure
|
Mpa
|
1.2-3.5
|
||
|
Air consumption
|
m3/min
|
16-55
|
||
|
Rod length
|
m
|
3m
|
||
|
Rod diameter
|
mm
|
102/114mm dual-wall
|
||
|
Main shaft pressure
|
T
|
7
|
||
|
Lifting force
|
T
|
25
|
||
|
Fast lifing speed
|
m/min
|
23
|
||
|
Rotary torque
|
N.m
|
5000-10000
|
||
|
Rotary speed
|
r/min
|
75-150
|
||
|
Small winch lifting force
|
T
|
1.5
|
||
|
Drilling speed
|
m/h
|
10-35
|
||
|
Walking speed
|
km/h
|
2.5
|
||
|
Climbing capacity
|
°
|
21
|
||
|
Weight
|
T
|
12
|
||
|
Dimension
|
mm
|
7000*2100*2800
|
||
