Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
TONTEKPOWER
-
Model Number:
-
TPD350C5
-
Speed:
-
1500RPM
-
Fuel consumption:
-
75L/h
-
Engine model:
-
NTA855-G4
-
Engine brand:
-
CUMMINS
-
Displacement:
-
14 L
-
Standby Power:
-
310KW/388KVA
-
Engine type:
-
In line,6 cylinders,4 stroke
-
Cooling method:
-
Water cooled by radiator
-
Power factor:
-
0.8 (lagging)
-
Phase and wire:
-
3 phase 4 wires
-
Protection class:
-
IP 23
-
Certification:
-
CE
Quick Details
-
Rated Voltage:
-
400/230V (Can be adjusted)
-
Frequency:
-
50HZ
-
Warranty:
-
13months
-
Place of Origin:
-
China
-
Brand Name:
-
TONTEKPOWER
-
Model Number:
-
TPD350C5
-
Speed:
-
1500RPM
-
Fuel consumption:
-
75L/h
-
Engine model:
-
NTA855-G4
-
Engine brand:
-
CUMMINS
-
Displacement:
-
14 L
-
Standby Power:
-
310KW/388KVA
-
Engine type:
-
In line,6 cylinders,4 stroke
-
Cooling method:
-
Water cooled by radiator
-
Power factor:
-
0.8 (lagging)
-
Phase and wire:
-
3 phase 4 wires
-
Protection class:
-
IP 23
-
Certification:
-
CE
|
DIESEL GENERATOR DATA
|
|
|
|

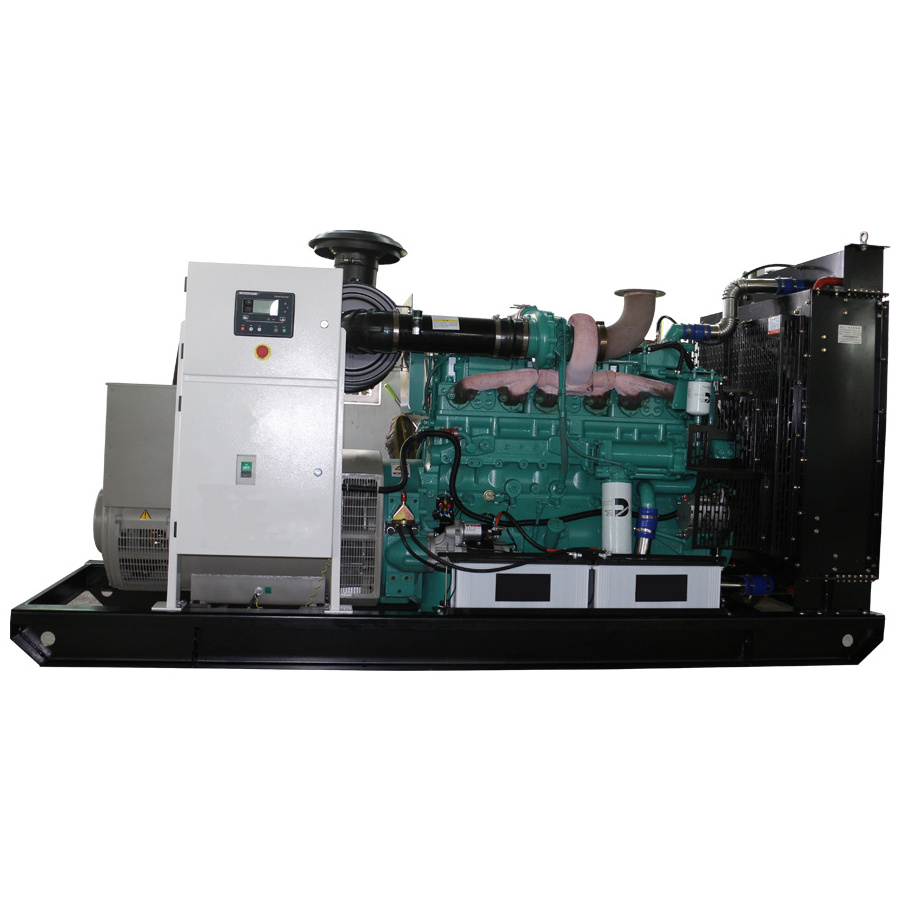

Generator set model
|
TPD350C5
|
|
|
Generator rated power
|
280KW/350KVA
|
|
|
Rated frequency
|
50HZ
|
|
|
Rated voltage
|
400/230V (Can be adjusted)
|
|
|
Rated speed
|
1500RPM
|
|
|
Fuel consumption
|
75L/h
|
|
|
Open type size
|
2886x1010x1710 MM
|
|
|
Open type weight
|
3100 Kg
|
|
|
ENGINE DATE
|
|
|
|
Engine model:
|
NTA855-G4
|
|
|
Engine brand
|
CUMMINS
|
|
|
Bore & Stroke
|
140 × 152 mm
|
|
|
Displacement
|
14 L
|
|
|
Compression ratio
|
14.0:1
|
|
|
Type
|
In line,6 cylinders,4 stroke
|
|
|
Aspiration
|
Turbocharged, Aftercooled
|
|
|
Governor
|
Electronic
|
|
|
Cooling method
|
Water cooled by radiator
|
|
|
ALTERNATOR DATA
|
|
|
|
Alternator brand
|
STAMFORD/MARATHON
|
|
|
Power factor
|
0.8 (lagging)
|
|
|
Phase and wire
|
3 phase 4 wires
|
|
|
Excite type
|
Single Bearing, Close coupled. Brushless, self-exciting,AVR
|
|
|
Protection class
|
IP23
|
|
|
Insulation class
|
H
|
|
Q: What is the power range of your generator sets?
A: We can provide 10 KVA to 4000KVA, with a voltage range of 110V~15000V and frequencies of 50Hz and 60Hz.
Q: What is the lead time?
A: 7 working days against the 30%T/T deposit
Q:What is your MOQ?
A: Our MOQ is 1 unit
Q:What about your warranty?
A:13 months or 1000 working hours,whichever comes first.
Q: What are your payment terms?
A: 30% TT as deposit,70% TT before Shipment or Irrevocable LC at sight.
Q: What is your company's production capacity?
A:150 Sets per month
Q: Can you supply OEM service
A: YES
