Quick Details
-
Model Number:
-
XH84
-
Brand Name:
-
LEEBOO
-
Standard or Nonstandard:
-
Standard
-
Product Name:
-
Integral flanged rubber duckbill valve
-
Matching Pipe DN(inch):
-
1/2"-120" (15-3000mm)
-
Rubber Body Material:
-
EPDM, NBR, CR, IIR, etc.
-
Connection:
-
Flange/Clamp
-
Flange Material:
-
CS, SS, Cast Iron, etc
-
Clamp Material:
-
SS304 SS316
-
Valve Type:
-
Slip-on, Slip in, Inline, Flanged, Threaded, Flared/Flat Bottom
-
Applicable Medium:
-
Water, flood, sewage, acid, alkali, etc.
-
Business Type:
-
Manufacturer of rubber duckbill valves
Quick Details
-
Port Size:
-
1/2"-120"
-
Warranty:
-
1 year
-
Place of Origin:
-
Henan, China
-
Model Number:
-
XH84
-
Brand Name:
-
LEEBOO
-
Standard or Nonstandard:
-
Standard
-
Product Name:
-
Integral flanged rubber duckbill valve
-
Matching Pipe DN(inch):
-
1/2"-120" (15-3000mm)
-
Rubber Body Material:
-
EPDM, NBR, CR, IIR, etc.
-
Connection:
-
Flange/Clamp
-
Flange Material:
-
CS, SS, Cast Iron, etc
-
Clamp Material:
-
SS304 SS316
-
Valve Type:
-
Slip-on, Slip in, Inline, Flanged, Threaded, Flared/Flat Bottom
-
Applicable Medium:
-
Water, flood, sewage, acid, alkali, etc.
-
Business Type:
-
Manufacturer of rubber duckbill valves
Rubber Duckbill Valve ( Duckbill Check Valve)
| Product name: |
Integral flanged rubber duckbill valve for Storm water drain check valve |
||
| Product Brand: | LEEBOO | Medium: | water, oil, acid, alkali, slurry etc. |
| product model: | JXH DN100-DN600 | Temperature: | -20℃~400℃ |
| Application: | Construction, water supply and drainage, and heavy industry, refrigeration, sanitation, plumbing, fire, electricity, etc | ||
|
Product features:
|
Integral flanged rubber duckbill valve for Storm water drain check valve realizes the effects about drainage pipeline outflow with forward direction and non-return with reverse direction according to duckbill special design, which simplify the installation, usage and maintenance of drainage pipeline. It plays an important role in the process of the development of the check valve industry. | ||
| more information: | http://www.xlpipe.com http://www.xinligd.com http://www.xinlipipe.com | ||

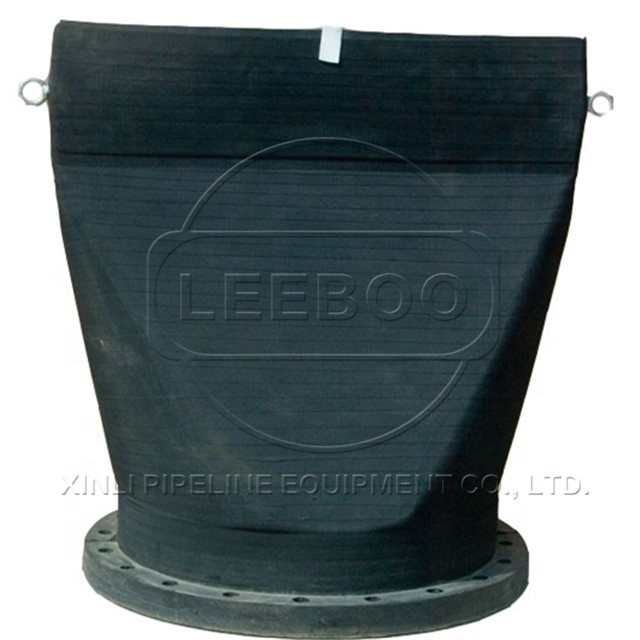

Integral flanged rubber duckbill valve for Storm water drain check valve is made of rubber body and SS clamp. The former is main working part, the latter is fixed on the pipeline which has effecs on fixed connection. It has reasonable structure design and it's easy to use.
Integral flanged rubber duckbill valve for Storm water drain check valve body is made of high quality material, which has good effecs on open and close. Certainly it's closed under natural state. Besides, the rubber material can be exchanged according to drainage corrosivity resistance strength.
SS clamp is the main connection body of duckbil check valve. The raw material includes SS304 or SS316 etc. which has good tensile resistance. Simple design and affordable is the best choice as connecting parts.
Because of the good comprehensive performance of Integral flanged rubber duckbill valve for Storm water drain check valve , it is widely used in chemical engineering, construction, water supply, drainage, oil, heavy industry, freezing, sanitation, fire, electricity and other basic engineering, especially for pipeline with large vibration, hot and cold changes frequently.
