Quick Details
-
Table Travel (Z) (mm):
-
140 mm
-
Travel (W-axis) (mm):
-
450 mm
-
Positioning Accuracy (X axis) mm:
-
±0.02/500
-
Positioning Accuracy (Y axis) mm:
-
±0.02/500
-
Positioning Accuracy (Z axis) mm:
-
±0.02/500
-
Range of Spindle Speed(r.p.m):
-
250 r.p.m
-
Spindle Motor Power(kW):
-
2.3
-
Place of Origin:
-
China
-
Brand Name:
-
JIAXIN
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
1500X120X45mm 570x350x500mm
-
Weight (T):
-
0.18 T
-
Product name:
-
Boring & Welding Integrated Machine
-
Model:
-
#45
-
Spindle power:
-
2.3kw
-
Feeder blade power:
-
1.5kw
-
Boring rod diameter:
-
45mm
-
Processing range:
-
60-200mm
-
Stroke:
-
450mm
-
Circular degree:
-
0.2mm
-
Welding thickness:
-
2-5mm
-
Welding wire:
-
1.0
Quick Details
-
Table Size (mm):
-
60-200mm
-
Table Travel (X) (mm):
-
450 mm
-
Table Travel (Y) (mm):
-
3 mm
-
Table Travel (Z) (mm):
-
140 mm
-
Travel (W-axis) (mm):
-
450 mm
-
Positioning Accuracy (X axis) mm:
-
±0.02/500
-
Positioning Accuracy (Y axis) mm:
-
±0.02/500
-
Positioning Accuracy (Z axis) mm:
-
±0.02/500
-
Range of Spindle Speed(r.p.m):
-
250 r.p.m
-
Spindle Motor Power(kW):
-
2.3
-
Place of Origin:
-
China
-
Brand Name:
-
JIAXIN
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
1500X120X45mm 570x350x500mm
-
Weight (T):
-
0.18 T
-
Product name:
-
Boring & Welding Integrated Machine
-
Model:
-
#45
-
Spindle power:
-
2.3kw
-
Feeder blade power:
-
1.5kw
-
Boring rod diameter:
-
45mm
-
Processing range:
-
60-200mm
-
Stroke:
-
450mm
-
Circular degree:
-
0.2mm
-
Welding thickness:
-
2-5mm
-
Welding wire:
-
1.0

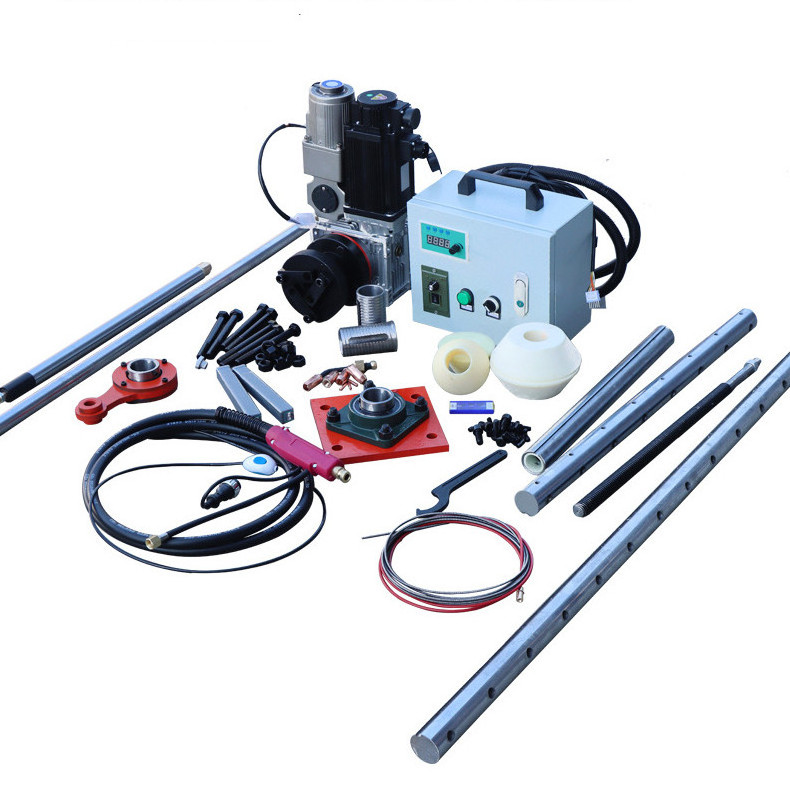

Portable Boring Machine is a Kind of Portable Processing Equipment Mainly Developed for On-site Maintenance of Construction Machinery. It is Mainly used for the Processing of Small Pipe Inner Holes and Concentric Spacing Holes. It is Widely used in the On-site Maintenance of construction Machinery Such as Excavators, Cranes, Loaders, Reducing the Cost of Equipment Maintenance and Improving the Efficiency.
|
No. |
Item |
#45 |
#50 |
|
1 |
Motor power of main axis |
2.3KW |
3KW |
|
2 |
Type of motor |
Sever motor |
Sever motor |
|
3 |
Feeding blade motor |
1.5KW |
1.5KW |
|
4 |
Voltage |
Single phase 220V |
Single phase 220V |
|
5 |
Output rotate speed of main axis |
0-250rmp |
0-250rmp |
|
6 |
Speed control mode |
Stepless speed regulation |
Stepless speed regulation |
|
7 |
Boring rod diameter |
45mm |
50mm |
|
8 |
Processing range |
60-200mm |
70-240mm |
|
9 |
Feeder blade stroke |
350mm |
450mm |
|
10 |
Max depth of feeder blade at single side |
3mm |
3mm |
|
11 |
Processing circular degree |
0.02mm |
0.02mm |
|
12 |
Roughness |
3.2 |
3.2 |
|
13 |
Installation mode |
Welding fixed |
Welding fixed |
|
14 |
Welding hole diameter |
50-140mm |
70-220mm |
|
15 |
Welding thickness at single side |
2-5mm |
2-5mm |
|
16 |
Diameter of welding wire |
1.0mm |
1.0/1.2mm |
1. The vertical servo motor E quipped with specially customized servo motor, which has the advantages of stable operation, all-copper motor, long service life and narrow position of vertical structure
2. Boring bar welding rod are two, one long and one short, special position can be used with (such as short arm cylinder base) the whole car can be boring and welding
3. Handle control, high practicability, knock is not easy to damage, practicability is strong, hand self integrated continuously variable speed
4. Highly compatible welding gun with a transfer head, compatible with European and Panasonic welders
