Quick Details
-
Name:
-
SMT Pick and Place Machine
-
Application:
-
Mount component to PCB board
-
Model:
-
SM471plus
-
Quality:
-
100% Tested
-
Speed:
-
78000CPH
-
Dimension:
-
1650*1690*1485mm
-
Weight:
-
Approx. 1820kg
-
Packages:
-
vacuum packed in plywood
Quick Details
-
Weight (KG):
-
1700
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
I.C.T
-
Name:
-
SMT Pick and Place Machine
-
Application:
-
Mount component to PCB board
-
Model:
-
SM471plus
-
Quality:
-
100% Tested
-
Speed:
-
78000CPH
-
Dimension:
-
1650*1690*1485mm
-
Weight:
-
Approx. 1820kg
-
Packages:
-
vacuum packed in plywood
PCB Fully Automatic SMD Mounting PNP Assembly Line LED Lens Chip Mounter SMT Pick and Place Machine with 8 Head

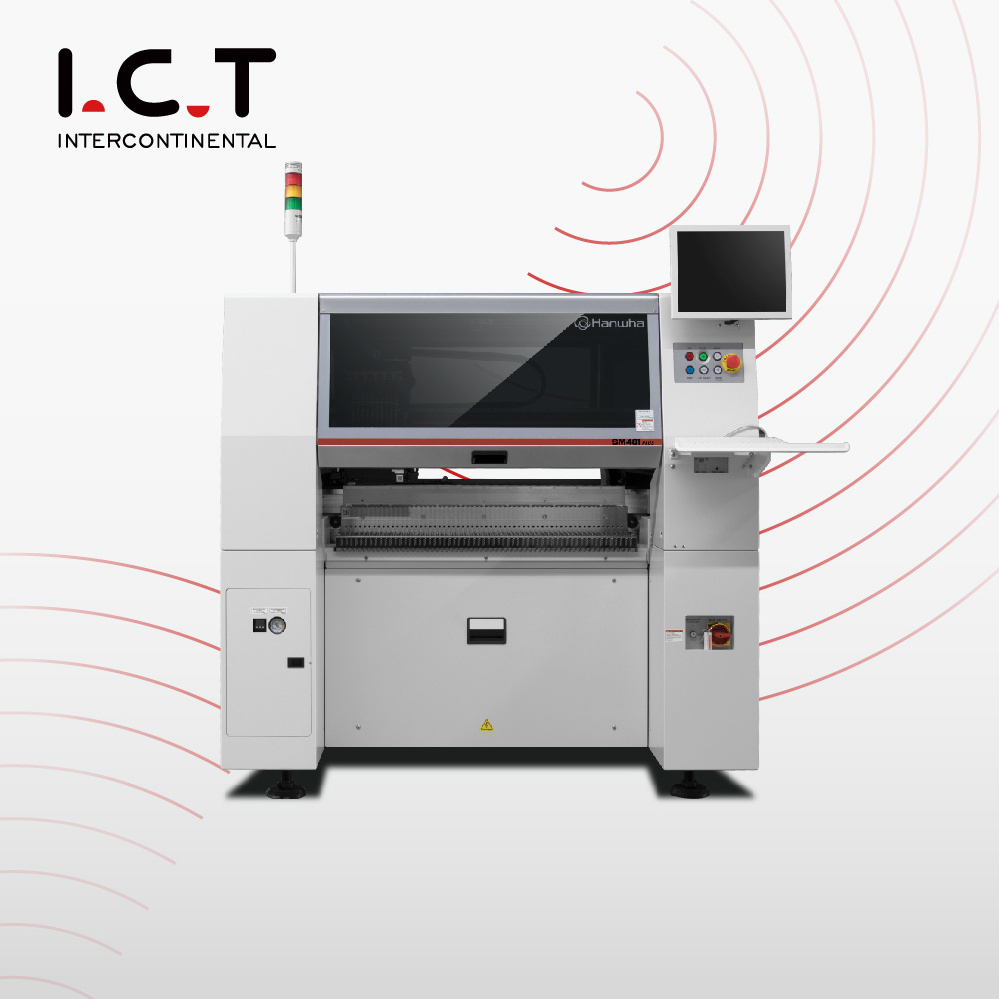

Hanwha Pick and Place Machine SM471 Plus
The SM471PLUS is a high performance chip shooter which applies two gantries equipped with 10 spindles per head as well as a new flying vision system. Compared to the existing SM471 model, its placement speed is increased further to 78,000CPH, which is the highest in the world among chip shooters of the same class. In addition, it is basically applicable to components from 0402(01005 inch) chips to maximum 14mm IC components. Its actual productivity and placement quality is improved by applying high-speed and high precision electrical feeders. With two gantries and dual lane, the SM471Plus supports various production modes to maximize the productivity of SM series machines.
If You Need More Details About The I.C.T
Pick and Place Machine
, Please
Click Here.
|
Model
|
SM471PLUS
|
SM481PLUS
|
DECAN S1
|
|
Numbers of Spindles
|
10 Spindles × 2 Gantry
|
10 Spindles × 1 Gantry
|
10 spindles x 1 Gantry
|
|
Placement Speed
|
78000CPH(Optimum)
|
40000CPH(Optimum)
|
47,000 CPH (Optimum)
|
|
Placement Accuracy
|
±50μm@μ±3σ
|
±30μm@μ±3σ
|
±28μm @ Cpk≥ 1.0
|
|
Applicable Parts
|
0402 ~ 14mm(H 12mm)
|
0402 ~ 42mm(H15mm)
|
03015 ~ 55mm(H15mm)
|
|
Applicable PCB
|
Max. 510(L) x 460(W)(Standard)
|
Max. 460(L) x400(W)(Standard)
|
Max. 510(L) x510(W)(Standard)
|
|
|
Max. 610(L) x 460(W)(Option)
|
Max. 1500(L) x 460(W)(Option)
|
Max. 610(L) x 460(W)(Option)
|
|
Dimension(mm)
|
1650×1690×1458
|
1650×1680×1530
|
1430x1740x 1485
|
Certifications
Packing & Delivery
※ Standard Wooden Case with Vacuum Package
Shipping Way:
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 35 Days.
※ By air, for sample and small package, international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 35 Days.
