Variable speed frequency inverter drive.
The speed can be adjusted at any time.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
AOZHI
-
Power:
-
2.2Kw
-
Product name:
-
Flatwork Ironing Machine
-
Certification:
-
ISO9001 ,CE
-
Heating:
-
Electric,Steam,Gas/LPG
-
Voltage:
-
220,380,400,415,440V
-
Machine type:
-
Single Roller Sheet Ironing Machine
-
Function:
-
Make Sheet Smooth
-
Material:
-
Stainless Steel 304
-
ironing width:
-
1200-3000mm
-
Installation:
-
Freestanding
-
Main Motor:
-
1.5kw,2.2kw,5.5kw
Quick Details
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Online support
-
Weight:
-
1800kg
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
AOZHI
-
Power:
-
2.2Kw
-
Product name:
-
Flatwork Ironing Machine
-
Certification:
-
ISO9001 ,CE
-
Heating:
-
Electric,Steam,Gas/LPG
-
Voltage:
-
220,380,400,415,440V
-
Machine type:
-
Single Roller Sheet Ironing Machine
-
Function:
-
Make Sheet Smooth
-
Material:
-
Stainless Steel 304
-
ironing width:
-
1200-3000mm
-
Installation:
-
Freestanding
-
Main Motor:
-
1.5kw,2.2kw,5.5kw
Product Description

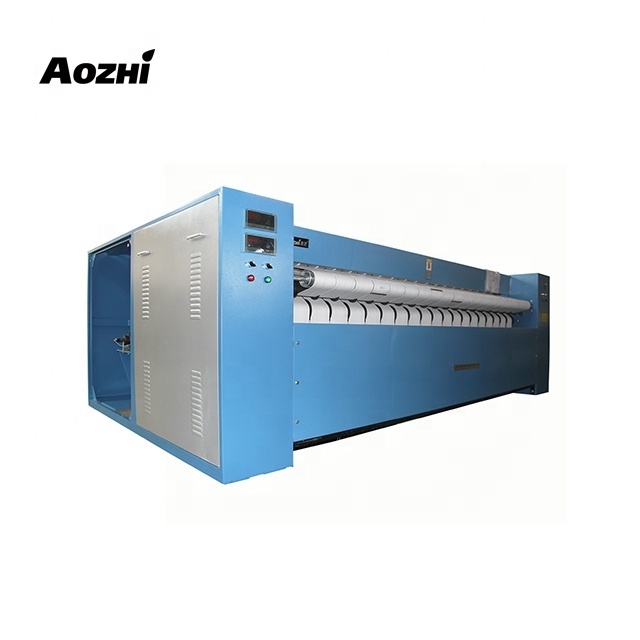

Laundry flat ironer & sheet ironing machine laundry hotel sheets ironing machine
1. We are professional leading original equipment manufacturer in China. Our products are not only elegant, but also durable and our price is very competitive.
2. The model, size, color and other details of our products can be customized. You can tell us your requirements and we will give you some advice and try our best to satisfy your needs.
3. If you want to cooperate with us, you can pay field visit to our factory and we can provide you with free training. True gold does not fear fire.
4. We can provide you with some free parts with our products. When our product breaks down during normal operation under warranty period, we can deliver some parts to you for free and send you videos to teach you how to repair it.
|
|
YP-8030I
|
YP-8030II
|
YP-8030II
|
YP-8030VI
|
||||
|
Number of Roll
|
1 rolls
|
2rolls
|
3 rolls
|
4 rolls
|
||||
|
Maximum Ironing Width
|
1200-3300mm
|
|
|
|
||||
|
Diameter of Roll
|
800mm
|
800mm
|
800mm
|
800mm
|
||||
|
Ironing Speed
|
4 - 6m/min
|
4-10m/min
|
6-18m/min
|
4 - 30m/min
|
||||
|
steam pressure
|
0.55 - 0.7Mpa
|
|
|
|
||||
|
In the case of electric heating
|
|
|
|
|
||||
|
electrical heating ;
|
20-28kw
|
35-40kw
|
50-70kw
|
|
||||
|
weight
|
1500kg
|
2800kg
|
3500kg
|
4200kg
|
||||
Main Features
1.One-piece chest and roll structure applies balanced pressure to flatwork
2.High quality steam heated chest with large heating area
3.Stainless steel gap piece with heating coils increases efficiency
4.Powerful exhaust fan for fast moisture removal
5.Variable speed frequency inverter drive
6.Gradual speed increment between rolls for spreading effect
7.High quality felt, spring system and float type steam trap
8.User friendly computer control panel
9.One emergency stop buttons on each corner for safety
10.Alarm system of steam and air pressure ensure smooth operation
11.Individual pressure adjustment for left and right side improve ironing quality
Certifications
Detailed Images
Machine Parts
Main Features
The reduction gear drives the machine, and the power stops automatically by hand.To prevent the village
Machine Parts
The high quality transmission band can be used for longer and can be replaced easily.
Main Features
Free combination drum number, installation and transportation is more convenient.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
2420(L) *4450 (W) * 1330 (D)
|
|
|
Weight
|
2.1T
|
|
|
Packaging Details
|
paperboard
|
|
