Quick Details
-
Brand Name:
-
SunSoont
-
Model Number:
-
SST-BTG90W
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
IEEE802.3bt 48V 60W 90W gigabit POE++ POE+++ injector
-
PoE Ports:
-
1*10/100/1000Mbps Output port
-
Uplink Ports:
-
1*10/100/1000Mbps Input Port
-
POE Pin Assignment:
-
1/2-;3/6+ or 4/5+;7/8-
-
PoE Port Power:
-
DC48V~DC56V, Max 90W
-
Input Power:
-
AC100-240V 50/60Hz
-
Transmission Distance:
-
100m
-
Dimensions (W x D x H):
-
187 mm* 95mm*40 mm
-
Operating Temperature:
-
-20℃ ~ 50℃
-
Warranty:
-
3 years
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
4G
-
Brand Name:
-
SunSoont
-
Model Number:
-
SST-BTG90W
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
IEEE802.3bt 48V 60W 90W gigabit POE++ POE+++ injector
-
PoE Ports:
-
1*10/100/1000Mbps Output port
-
Uplink Ports:
-
1*10/100/1000Mbps Input Port
-
POE Pin Assignment:
-
1/2-;3/6+ or 4/5+;7/8-
-
PoE Port Power:
-
DC48V~DC56V, Max 90W
-
Input Power:
-
AC100-240V 50/60Hz
-
Transmission Distance:
-
100m
-
Dimensions (W x D x H):
-
187 mm* 95mm*40 mm
-
Operating Temperature:
-
-20℃ ~ 50℃
-
Warranty:
-
3 years
Product Description
Sunsoont OEM high power IEEE802.3bt 48V 60W 90W gigabit POE++ POE+++ injector
SunSoont 90W Gigabit Ethernet POE power supply, the maximum output power of the POE port is 90W, the data access port supports 10/100/1000 adaptive, AC 110-264 V voltage input, and the operating temperature range is -20 ℃ ~ + 50 ℃, using industrial-grade chip enhanced design, port with lightning protection and static protection, and in compliance with FCC, CE, CCC, RoHS standards, reliable hardware design can ensure your automation system runs uninterrupted and stable, PTZ high-speed ball products , Compact computer, all-in-one, digital signage display system, etc.
Feature
1.Support 1 Gigabit POE power supply port + 1 Gigabit network port;
2. Compatible with IEEE802.3af (15.4W), IEEE802.3at (30w) and IEEE802.3bt (90w);
3. Support power usage monitoring, 30%, 60%, 90% three states;
4.Support AC 110-264 V power supply;
5. Metal case, IP20 protection grade, -20 to 50 ° C working temperature;
6. Support port surge: differential mode 2KV, common mode 6KV; electrostatic ESD: contact discharge 6KV, air discharge 8KV.
Specification
|
Product Name
|
90W Gigabit POE injector
|
|
|
|
Model Number
|
SST-BTG90W
|
|
|
|
Port
|
1* support POE function+1* gigabit port
|
|
|
|
POE specification |
PoE Standard：compatible with IEEE802.3af /IEEE802.3at/IEEE802.3bt
|
|
|
|
|
Max：15.4 W (IEEE 802.3af)
Max：30 W (IEEE 802.3at) Max：90 W (IEEE 802.3bt) |
|
|
|
|
POE output: DC 52V
|
|
|
|
|
POE pin :1/2-；3/6+ or 4/5+；7/8-
|
|
|
|
Network interface
|
10BASE-T: Cat5UTP(≤250m)
100BASE-TX: Cat5 and above UTP(≤100m) 1000BASE-TX: Cat5 and above UTP(≤100m) |
|
|
|
LED Indicators
|
PWR
|
On：working
Off：no power |
|
|
|
POE Power
30%/60%90% |
On：power status
Off：Power usage is below proportional value |
|
|
Power
|
Input: AC 110-264 V Frequancy： 50/60 Hz
Output：52V/1.85A |
|
|
|
Working Environment
|
Working temperature: -20～50℃
Storing temperature: -40～85℃ Humidity: 5%~95 % |
|
|
|
Standard test
|
EN61000-4-2 （ESD）Contact8KV，Air 15KV
IEN61000-4-5 （Surge）Common mode 6KV, differential mode 1KV EN61000-4-3 （RS） EN61000-4-6 （CS） EN61000-4-4 （EFT） FCC Part 15/ CISPR32 /EN55032： CLASS A IEC 60068-2-27 Impact test IEC 60068-2-32 Free fall test IEC 60068-2-6 Vibration test |
|
|
|
Physical structure
|
Shell protection level: IP20
Installation: wall mount Product Size (L×W×H)：187 mm× 95mm×40 mm Package Size (L×W×H)：254 mm× 190mm× 60mm |
|
|
|
Packing list
|
1. 90W Gigabit POE injector：1set
2. Manual：1PCS 3. Certificate of conformity, warranty card：1PCS |
|
|
|
Certificate
|
CE、FCC、CCC、RoHS
|
|
|
|
Service life
|
100,000 hours
|
|
|
|
Warranty
|
3 years
|
|
|

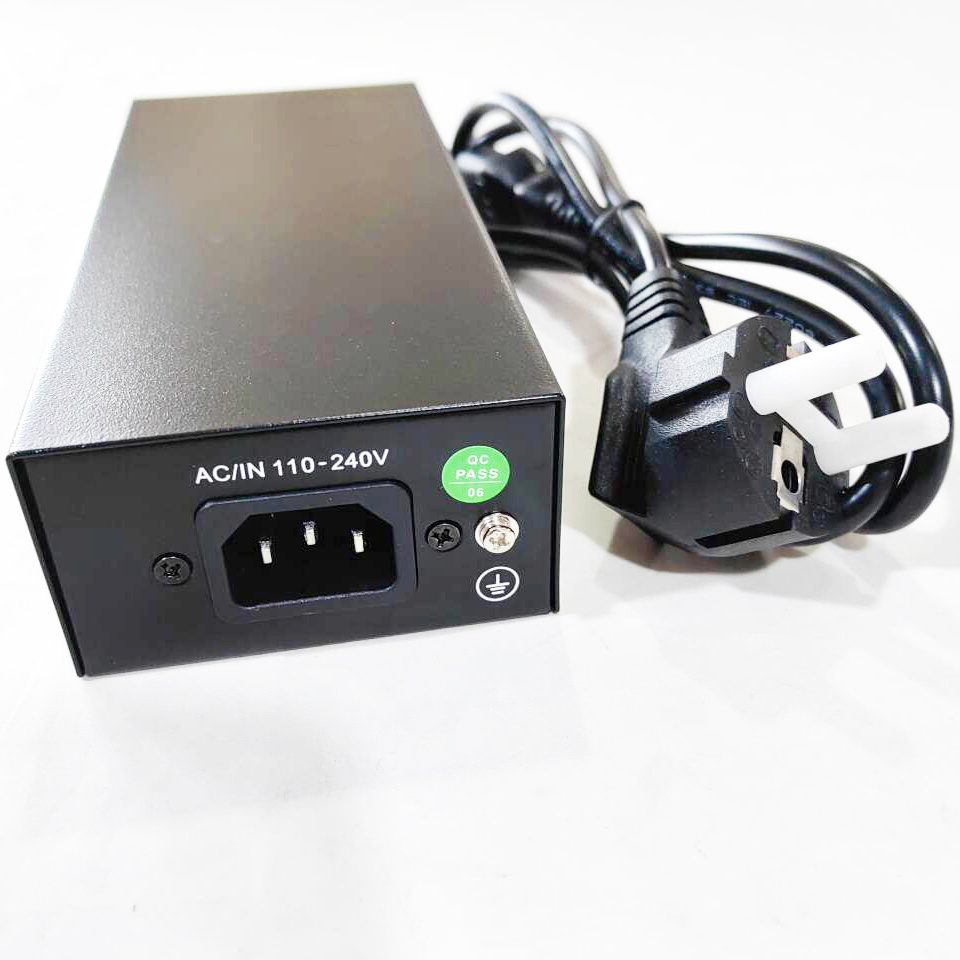

Details Images
