Quick Details
-
Brand Name:
-
DLTEREN
-
Model Number:
-
DTI-100M
-
Accuracy level:
-
Better than ±1%for velocity above 0.6ft/s
-
Transducers Cable:
-
Standard length 15'(5m). Can be extended to 1640'(500m)
-
Transducers:
-
Model M1 for standard, other 3 models for optional
-
Power supply:
-
AC: 110V/220V, or DC :8VDC-36VDC
-
Liquid Types:
-
Virtually all liquids
-
Pipe size:
-
0.5" ~ 240" (15 ~ 6,000mm)
-
Pipe Material:
-
All metals, most plastics, fiber glass, ect. Allow pipe liner
-
Repeatability:
-
0.2%
-
Linearity:
-
better than 0.5%
Quick Details
-
Type:
-
Variable Area Water Flowmeters
-
Warranty:
-
1year
-
Place of Origin:
-
Liaoning, China, Liaoning, China (Mainland)
-
Brand Name:
-
DLTEREN
-
Model Number:
-
DTI-100M
-
Accuracy level:
-
Better than ±1%for velocity above 0.6ft/s
-
Transducers Cable:
-
Standard length 15'(5m). Can be extended to 1640'(500m)
-
Transducers:
-
Model M1 for standard, other 3 models for optional
-
Power supply:
-
AC: 110V/220V, or DC :8VDC-36VDC
-
Liquid Types:
-
Virtually all liquids
-
Pipe size:
-
0.5" ~ 240" (15 ~ 6,000mm)
-
Pipe Material:
-
All metals, most plastics, fiber glass, ect. Allow pipe liner
-
Repeatability:
-
0.2%
-
Linearity:
-
better than 0.5%

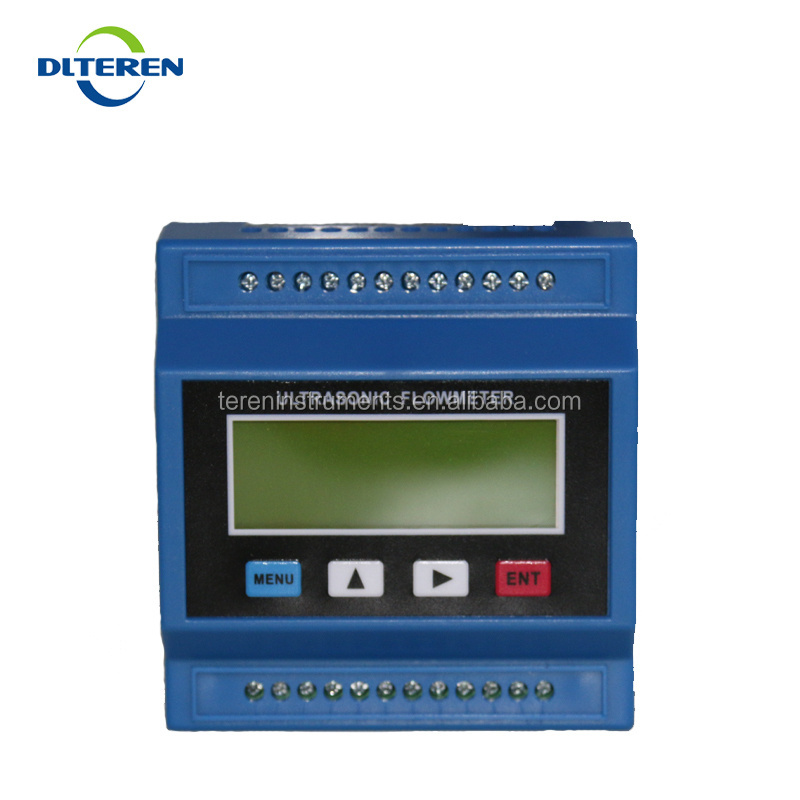

The DTI-100M (Teren-UFM-100M) Modular type ultrasonic flow meter,flowmeters can work alone without a LCD and Keypad module, the module can be used alone as a flow meter. Users can even integrate a number of the modules into a multi-channel flow meter that can measures up to several dozen of different pipes or a flow meter that has higher accuracy by measures the same pipe with all the channels, The design of the meter is intended to provide for users like system integrators and OEM users with a lowest cost but of high performance flow meter.
Technology :
|
Features |
Description |
|
High accuracy |
Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1% |
|
Wide measuring range |
Several types transducer for selection, pipe size from DN15mm to DN6000mm |
|
Far transmission distance |
Connecting module and secondary meter through RS-485 interface, transmission distance up to 1000m |
|
Powerful Functions |
Current output: 4-20mA, one channel, can be used for flow/heat transmitter; OCT output: two channels, can be used for flow /heat switch; Current input: 4-20mA, three channels, can be used for data collector; Tri-wire resistance signal input (PT100): two channels, can be used for calorimeter. |
|
Wide Application |
Its unique features, particularly low cost, small size, high performance, local display, make it the ideal choice for industrial automation, processing control, flow meter networking, composing multi-channel, high accuracy flow meter. |
Transducers:
| Model/parameters | Diameter(mm) | Material | Installation | Temperature(°C) | Protection |
| S1 | 15~100 | ABS | V(N,W) | 0~70 | IP65 |
| M1 | 50~700 | ABS | V,Z | 0~70 | IP65 |
| L1 | 300~6000 | ABS | Z | 0~70 | IP65 |
| S2 | 15~100 | Special | V(N,W) | 0~160 | IP65 |
| M2 | 50~700 | Special | V,Z | 0~160 | IP65 |
| L2 | 300~6000 | Special | Z | 0~160 | IP65 |
| B-insertion | >DN80 | 316L | Insertion | - | IP65 |
| C-insertion | >DN80 | 316L | Insertion | - | IP65 |
| Cement-insertion | >DN80 | 316L | Insertion | - | IP65 |
| Articulate | 25~80 | 316L | - | - | IP65 |
| PI | 15~40 | 316L | - | - | IP65 |
| In line | 15~1000 | Cast Iron | - | - |
IP65
|
Model selection procedure:
|
TR-DTI-100M-X-X-X-X-X-X-X-X-X-X- |
|
|
A |
S1 Transducer |
|
B |
M1 Transducer |
|
C |
L1 Transducer |
|
D |
S2 Transducer |
|
E |
M2 Transducer |
|
F |
L2 Transducer |
|
G |
B type insertion transducer |
|
H |
C type insertion transducer |
|
I |
Cement insertion transducer |
|
J |
Articulate type transducer |
|
K |
PI-type transducer |
|
L |
Standard pipe transducer |
1 suit module ultrasonic flow meter packed with 1 carton,include 2 sensors,5m*2 cables,manual and main unit ;
Within 2-5 working days after received the 100% T/T payment. Whtever you want to use DHL,FEDEX, TNT,AIR FREIGHT OR SEA FREIGHT , we can get a cheaper unit price for you. And we promise to pack products seriously to ensure there will be no damage when it arrive at your door.
Standard Packing List:
-
Transmitter * 1 set
-
TS-2 type transducer * 1 pair (you can also choose TM-1 sensor, the price is the same)
-
Clamp Fixture * 1 set
-
5m×2 Transducer Cable * 1 pair
-
English User Manual * 1 piece (electronic)
1.Certificated : ISO and CE
2.OEM and ODM service
3.Competitive Price
4. Fast delivery time: We will send the ultrasonic flow meter witnin 2 working days.
5. Shipping by DHL TNT Fedex, or as your requirement
6.carton packing or wodden cases with plastic inside
7.Long time quality guarantee: 18 months
8. All life maintain, Technical support, On time software upgrading
9. 24 Hours online services
10.View factory with our free accompany
How to order ?
I n order to help you get the exact model, pls offer the following necessary info:
1. The pipe size is DN___mm or ___inch .
2. The medium is _____.
3. Temperature is _____ °C.
4. The material of the pipe is _____.
5. The pressure is _____.
6. Other requirements :_____.
If you have any questions, pls feel free to contact me.
