Quick Details
-
Brand Name:
-
Guoguang
-
Model Number:
-
X-106
-
Size:
-
custom, 5-250mm
-
Thickness:
-
0.5-30mm, 0.5-100mm
-
Surface Quality:
-
clear
-
Use:
-
heat resisitant, lighting...
-
chamfer:
-
custom
-
Color:
-
clear
-
Tolerance:
-
+/-0.2mm in general
-
Sample:
-
stock size can be offered for testing in advance
-
Shape:
-
Custom Shape
-
MOQ:
-
10 Pcs
Quick Details
-
Type:
-
Insulated Glass
-
Application:
-
Lighting Glass
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Guoguang
-
Model Number:
-
X-106
-
Size:
-
custom, 5-250mm
-
Thickness:
-
0.5-30mm, 0.5-100mm
-
Surface Quality:
-
clear
-
Use:
-
heat resisitant, lighting...
-
chamfer:
-
custom
-
Color:
-
clear
-
Tolerance:
-
+/-0.2mm in general
-
Sample:
-
stock size can be offered for testing in advance
-
Shape:
-
Custom Shape
-
MOQ:
-
10 Pcs

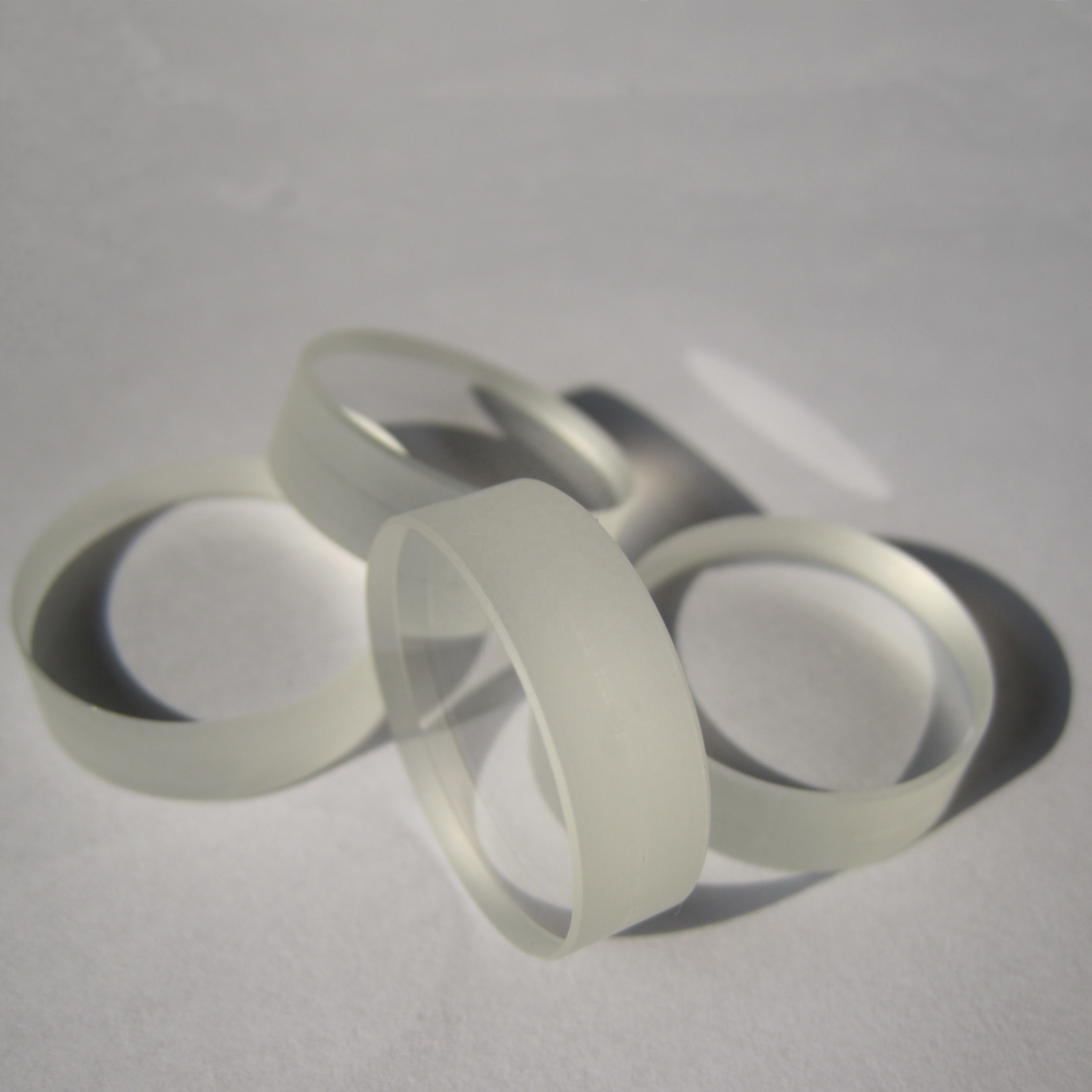

Borosilicate Glass
Borosilicate glass is one of transparent colorless glass, through wavelength is between 300 nm to 2500 nm, transmissivity is more than 90%, coefficient of thermal expansion is 3.3. It can acid proof and alkali, the high temperature resistant is about 450°C. If tempering, the high temperature can reach 550°C or so. Application: lighting fixture, chemical industry, electron, high temperature equipment and so on...
High borosilicate glass technical parameters:
|
Density(20℃)
|
2.23gcm-1
|
|
expansion coefficient(20-300℃)
|
3.3*10-6K-1
|
|
Softening point(℃)
|
820℃
|
|
maximum working temperature(℃)
|
≥450℃
|
|
maximum working temperature after tempered(℃)
|
≥650℃
|
|
refractive index
|
1.47
|
|
transmittance
|
92% ( thick≤4mm)
|
|
SiO2 percent
|
80% above
|
Applications:
1). Household electrical appliance(panel for oven and fireplace,microwave tray etc.);
2). Environmental engineering and chemical engineering(Linging layer of repellence, autoclave of chemical reaction and safety spectacles);
3). Lighting (spotlight and protective glass for power of floodlight);
4). Power regeneration by solar energy(solar cell base plate);
5). Semi-conductor technology (LCD disc,display glass);
6). Latrology and bio-engineering;
7). Safety protection
