Quick Details
-
Model Number:
-
TB35 time switch
-
Max. Current:
-
30 A
-
Type:
-
TB35
-
Rated voltage:
-
100-240VAC
-
Voltage tolerance:
-
85-264VAC
-
Frequency:
-
50/60HZ(common use)
-
Power consumption:
-
110VAC:1W, 220VAC 2W
-
Cycle:
-
24 hours
-
Working reserve time:
-
150 hours
-
Ambient Temperature:
-
-10℃~+50℃
-
weight:
-
250g
-
Product name:
-
TB35 24 hour time switch street light timer switch
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
240V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Naidian
-
Model Number:
-
TB35 time switch
-
Max. Current:
-
30 A
-
Type:
-
TB35
-
Rated voltage:
-
100-240VAC
-
Voltage tolerance:
-
85-264VAC
-
Frequency:
-
50/60HZ(common use)
-
Power consumption:
-
110VAC:1W, 220VAC 2W
-
Cycle:
-
24 hours
-
Working reserve time:
-
150 hours
-
Ambient Temperature:
-
-10℃~+50℃
-
weight:
-
250g
-
Product name:
-
TB35 24 hour time switch street light timer switch
-
Certification:
-
CE

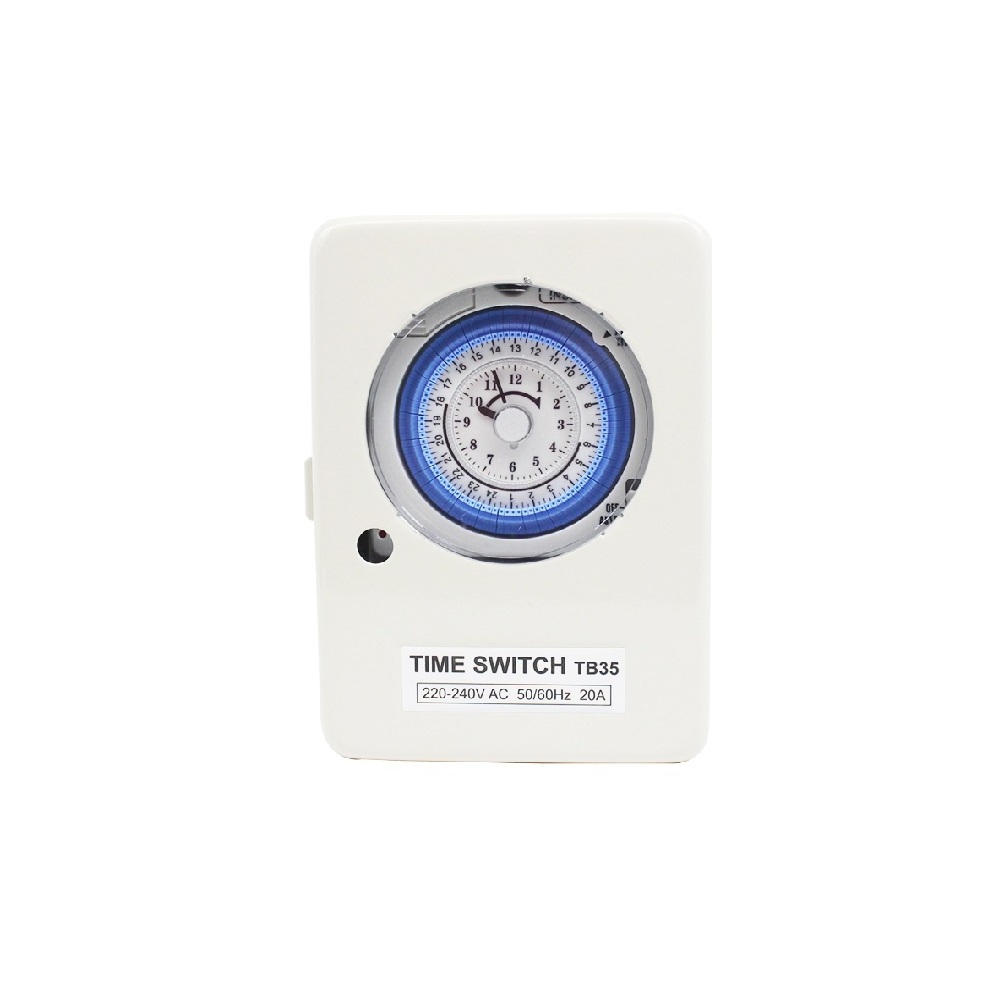

Electronic timer TB35 100-240VAC mechanical timer switch
Application
TB35 Mechanical Time Switch is suit for water heater, Water dispensers, Street lamp, Staircase lamp, Advertising lamp boxes, Breed aquatics, Irrigate, Office power auto control, in anywhere need time control in home or industrial, etc.
Feature :
1) With battery
2) 96 switching segments
3) Quartz controlled
4) Shortest switching time: 15 minute
Specification
|
Rated voltage |
100-240VAC |
||
|
Voltage tolerance |
85-264VAC |
||
|
Frequency |
50/60HZ(common use) |
||
|
Power consumption |
110VAC:1W, 220VAC 2W |
||
|
Drive method |
Quartz controlled current frequency |
||
|
Cycle |
24 hours |
||
|
Load |
Circuit |
Separate circuit (voltage is not applied to the load circuit) |
|
|
Switch construction |
SPST |
||
|
Manual ON/OFF |
ON/AUTO/OFF switch |
||
|
Capacity |
Resistive load |
20A |
|
|
Incandescent lamp |
10A |
||
|
setting |
Present time setting |
Turn the minute control knob in the center clock |
|
|
ON/OFF program setting |
15 Minutes |
||
|
Minimum unit |
15 Minutes |
||
|
Minimum interval |
15 Minutes |
||
|
No.of ON/OFF operations |
96 operations |
||
|
Working reserve time |
150 hours |
||
|
Ambient temperature |
- 10 ℃~ +50 ℃ |
||
|
Ambient humidity |
Max.85% |
||
|
weight |
250g |
||
Operating instruction
*Before turning power ON ,check that you until conforms to the operating voltage.
*When you buy this product,the inside battery for a long discharge itself the power reserve will lower.When the inside battery completely discharge,even if connect and switch on the power source,the product still not working immediately.Then,please connect and switch on the power source,and wait about 10minutes before set the product present time.The full power reserve is built up about 3days.
1.Set the operating time:
*Set the setting pin between the desired times to the inside or outside of dial.
*Set the setting pin to the outside of dial:ON-state reached at that time.If the setting pin is set to the
outside continuously,ON-state continues only for NO.of setting pins X 15 minutes.
*Set the setting pin to the outside fully until a click is heard.
*If the setting pin is set to the inside,at that time,the output is place in OFF-stat.
*When you desired time is close to the present time position turn the minute control knob and set it apart the position before setting.
1.Adjust the present time:
*Turn the minute control knob in the center clock until in the direction of the arrow and adjust the time.
2.Set the manual switch:
*Use this switch to select either turning ON or OFF in manual or ON/OFF in the operation program.
*“AUTO”:Output is turned ON and OFF according to the set program.
*Manual“ON”:Output is turned ON irrespective of the program.(Permanent ON)Use this mode for test operation.
*Manual“OFF”:Output is turned OFF irrespective of the program.
After completion of test operation,set the manual switch to “AUTO”
control knob and set it apart the position before setting.
