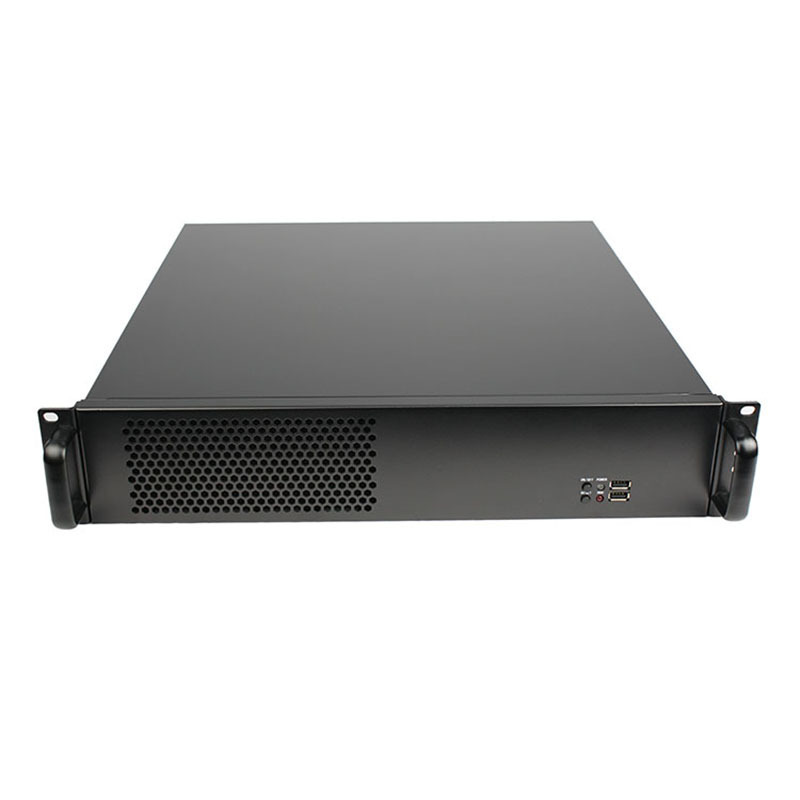

19 inch 2u short server case with 3.5in HDD ATX Industrial PC computer server case chassis with psu

19 inch 2u short server case with 3.5in HDD ATX Industrial PC computer server case chassis with psu

FOB Reference Price: Get Latest Price

≥1 Sets

US $45

≥50 Sets

US $42

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: Steel, SGCC 1.2mm

Brand Name:: WEYI

Place of Origin:: Guangdong, China

Module:: 2U Industrial PC Case

Dimensions:: 482(W)*450(D)* 89 mm(H)

Main Board:: 12"* 9.6"(305*245MM)

Hard Disk:: Three 3.5-inch Hard Disks or Two 3.5-inch & One 2.5-inch Hard Disk

CD-ROM:: None

Power:: ATX PSU

Fan:: Two 8025 Fans

Expansion Slot:: 4 Half High and Straight Slots and 3 Full High and Straight Slots

Case Material:: Ma Steel flowers-free zinc plating

Material Thickness:: 1.2MM

Quick Details

Application:: Server

Type:: Horizontal

Form Factor:: ATX

Material:: Steel, SGCC 1.2mm

Brand Name:: WEYI

Place of Origin:: Guangdong, China

Module:: 2U Industrial PC Case

Dimensions:: 482(W)*450(D)* 89 mm(H)

Main Board:: 12"* 9.6"(305*245MM)

Hard Disk:: Three 3.5-inch Hard Disks or Two 3.5-inch & One 2.5-inch Hard Disk

CD-ROM:: None

Power:: ATX PSU

Fan:: Two 8025 Fans

Expansion Slot:: 4 Half High and Straight Slots and 3 Full High and Straight Slots

Case Material:: Ma Steel flowers-free zinc plating

Material Thickness:: 1.2MM

Product Description

19 inch 2u short server case with 3.5in HDD ATX Industrial PC computer server case chassis with psu

2U19inch ATX ITX Server Case

Metal front panel with vented slats makes this as ideal ATX system where looks are important. It has a half height expansion slot which falls past the motherboard giving better clearance.

You can fit 3x 3.5" or 2x3.5"+1x2.5" drives - chassis takes away optical drives, drive cages and other clutter and leave a big open platform allowing for creative modification.

Feature

▶3x3.5 inch or 1x2.5+2x3.5 inch OS drive brackets for maximum configuration flexibility .

▶ Support mainboard 12"*9.6"(305*245MM) ,compatible with ATX,MATX,ITX system

▶Come with two standard 80mm fans for superior airflow

▶ User friendly design on lifting handle (stand-alone)

▶ Truly isolated anti-vibration design on internal HDD and drive cages
▶ Support ATX PSU

▶Four low-profile plus three full height and vertical expansion slots

▶One front usb2.0

▶Support all operating systems

▶ CE,RoHS Compliant

Technical Details

Model	K245F
Dimensions	482(W)450(D) 89 mm(H)
Main Board	12"9.6"(305245MM)
Hard Disk	Three 3.5-inch Hard Disks or Two 3.5-inch & One 2.5-inch Hard Disk
CD-ROM	No
Power	ATX PSU
Fan	Two 8025 Fans
Expansion Slot	Four half height plus three full height and vertical expansion slots
Panel Setting	Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator; One HD Indicator
Case Material	Ma Steel flowers-free zinc plating
Material Thickness	1.2MM
Packaging size	6156.519CM
G.W	8.5KG
N.W	6.2KG
