Quick Details
-
Warranty:
-
2YEARS
-
Brand Name:
-
Bluetti
-
Model Number:
-
SP120/SP200
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
411*427mm/ 525*520mm
-
Weight:
-
4.3kg/6.5kg
-
Power:
-
120W/200W
-
Dimension(unfolded):
-
411*1708mm/ 520*2200mm
-
Dimension(folded):
-
411*427mm/ 525*520mm
-
Folding number:
-
4
-
Solar Cell Lamination::
-
ETFE
-
Operating Temperature::
-
-10℃~+65℃
-
Voltage at max power (Vmp):
-
19.8V / 20V
-
Current at max power (Imp):
-
6.06A/ 10A
-
Certificate:
-
ROHS
Quick Details
-
Cell size:
-
125mmx125mm
-
Type:
-
PERC, All Black, Flexible, Overlapping
-
Panel Efficiency:
-
Up to 23%
-
Warranty:
-
2YEARS
-
Brand Name:
-
Bluetti
-
Model Number:
-
SP120/SP200
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
411*427mm/ 525*520mm
-
Weight:
-
4.3kg/6.5kg
-
Power:
-
120W/200W
-
Dimension(unfolded):
-
411*1708mm/ 520*2200mm
-
Dimension(folded):
-
411*427mm/ 525*520mm
-
Folding number:
-
4
-
Solar Cell Lamination::
-
ETFE
-
Operating Temperature::
-
-10℃~+65℃
-
Voltage at max power (Vmp):
-
19.8V / 20V
-
Current at max power (Imp):
-
6.06A/ 10A
-
Certificate:
-
ROHS
Product Paramenters
|

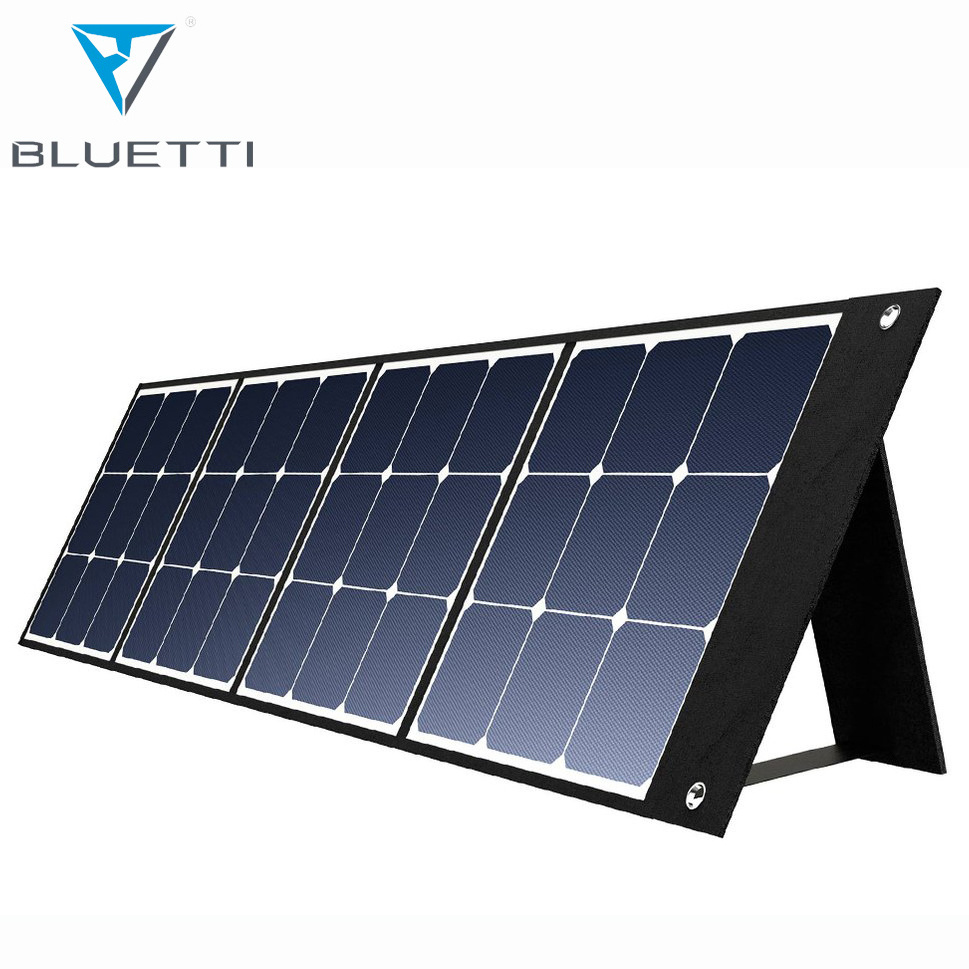

Bluetti Waterproof All Black Perc Portable Foldable Etfe 200w Flexible Folding Solar Panel
|
|
|
||
|
Model:
|
SP120
|
SP200
|
||
|
Peak Power(Pm):
|
120W
|
200W
|
||
|
Solar Cell Lamination:
|
ETFE
|
ETFE
|
||
|
Cell efficiency:
|
Up to 23%
|
≥23.5%
|
||
|
Voltage at max power (Vmp)
|
19.8V
|
20V
|
||
|
Current at max power (Imp)
|
6.06A
|
10A
|
||
|
Open circuit voltage(Voc):
|
23.7V
|
24V
|
||
|
Short circuit current(Isc):
|
6.66A
|
11A
|
||
|
Operating Temperature:
|
-10℃～+65℃
|
-10℃～+65℃
|
||
|
Best working temperature:
|
+25℃
|
+25℃
|
||
|
Folding number:
|
4
|
4
|
||
|
Dimension(unfolded):
|
411*1708mm/16*67inch
|
520*2200mm/20.5*86.6 inch
|
||
|
Dimension(folded):
|
411*427mm/16*16.8inch
|
525*520mm/20.7*20.5 inch
|
||
|
Weight:
|
4.3kg/9.48lb
|
6.5kg/14.3lb
|
||
|
|
|
|||
Products Description
Recommend Products
|
Model
|
|
|||||||
|
Built-in Battery
|
|
2048Wh LiFePo4
|
720Wh LiFePo4
|
537Wh Lifepo4
|
||||
|
Charging Power
|
Solar
|
MPPT 35V- 145V 700W / 900W
Support 18V/19V single panle charging |
MPPT 12V-28V 200W
|
MPPT 12V-28V 200W
|
||||
|
|
AC Charge
|
500W
|
25.2V 200W
|
25.2V 200W
|
||||
|
|
Car charging
|
10.5V-14.4V/21V-28.8V 8.2A
|
12V8A / 24V8A
|
12V8A / 24V8A
|
||||
|
|
AC+PV charging
|
1400W
|
N/A
|
400W Max
|
||||
|
Output
|
AC
|
2200W/2000W
|
800W / 1000W
|
700W
|
||||
|
|
DC
|
4xUSB 5V 3.0A
1xTypeC (PD 100W)
1x12V Car Cigarette Lighter +2x12V DC (10A max)
1x12V25A/30A for RV |
2xUSB 5V 3.0A
2xTypeC (PD 100 W) 1X12V Car Cigarette lighter +2X12V DC (total 10A max) |
4xUSB 5V 3.0A
1xTypeC (PD 100 W) 1X12V Car Cigarette lighter +2X12V DC (total 10A max)
|
||||
|
Other functions
|
|
2XWireless charging 15W
|
Wireless charging 15W
LED Flashlight function: Lighting & SOS
|
Wireless charging 15W LED Flashlight function: Lighting & SOS
|
||||
|
Material for casing
|
|
ABS + PC
|
ABS + PC
|
ABS + PC
|
||||
|
N.W.
|
|
28.3KG
|
9.7KG
|
6.5KG
|
||||
|
Dimension LxWxH(mm)
|
|
456*380*308
|
320*217*222
|
275*190*195
|
||||
|
Outlet
（Option）
|
US
|
100-120V
|
|
|
||||
|
|
Universal
|
220-240V
|
|
|
||||
|
|
Customized
|
Customized
|
|
|
||||
|
|
|
|
|
|||||
