Quick Details
-
Mounting Type:
-
Stick type fixed installation
-
Description:
-
Non-contact liquid level sensor, water level sensor
-
Model Number:
-
ESMUS12
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
kexlimice
-
Theory:
-
Capacitance sensor
-
Output:
-
5/12 -24V 5MA, 5/12 -24V 5MA
-
Name:
-
Humidifier level detection,water level sensor small electronic
-
Input voltage:
-
DC5/12-24V
-
Application:
-
sanitary wares intelligent control products etc.
-
container thickness:
-
10mm
-
Max.current:
-
30mA
-
measuring media:
-
water,liquid
-
sensor size:
-
50*30*12mm
-
Bracket:
-
65*50mm
-
Install way:
-
out type
Quick Details
-
Use:
-
water tank
-
Series:
-
Level Measurement Series
-
Features:
-
High sensitivity and small size
-
Mounting Type:
-
Stick type fixed installation
-
Description:
-
Non-contact liquid level sensor, water level sensor
-
Model Number:
-
ESMUS12
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
kexlimice
-
Theory:
-
Capacitance sensor
-
Output:
-
5/12 -24V 5MA, 5/12 -24V 5MA
-
Name:
-
Humidifier level detection,water level sensor small electronic
-
Input voltage:
-
DC5/12-24V
-
Application:
-
sanitary wares intelligent control products etc.
-
container thickness:
-
10mm
-
Max.current:
-
30mA
-
measuring media:
-
water,liquid
-
sensor size:
-
50*30*12mm
-
Bracket:
-
65*50mm
-
Install way:
-
out type
Product Description

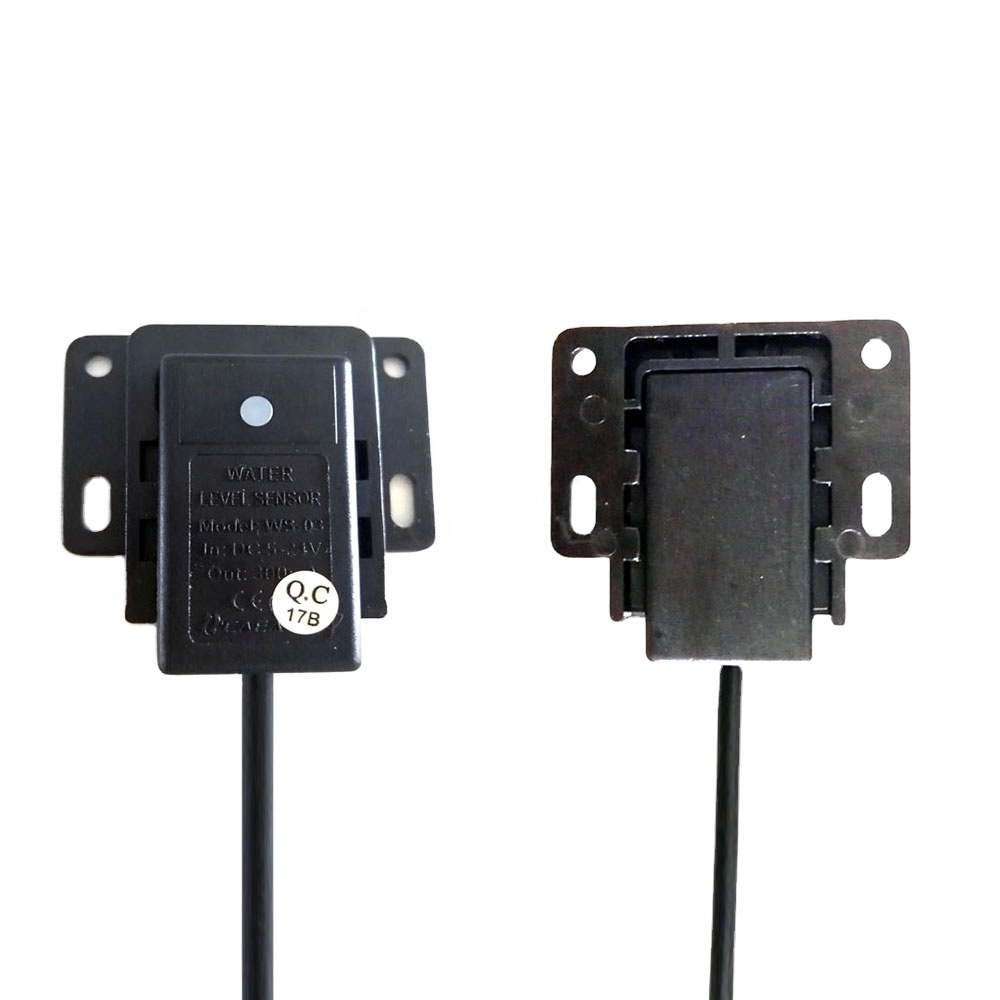

Contactless liquid level sensor, directly bonded to the insulator in the outer container
can detect a point level, when the water level reaches the output there is a signal, the service life is almost permanent. Can be applied to high-temperature high-pressure liquid. No electrolysis, will not affect the water quality.
* unipolar to induction, without affecting the peripheral devices suitable for complex environments
* suitable for a wide range of power, low power consumption
* installation is very easy, immediately available.
* sensitivity tidy, the most convenient volume
* open collector output, suitable for connecting a variety of circuits that can directly drive a relay.
can detect a point level, when the water level reaches the output there is a signal, the service life is almost permanent. Can be applied to high-temperature high-pressure liquid. No electrolysis, will not affect the water quality.
* unipolar to induction, without affecting the peripheral devices suitable for complex environments
* suitable for a wide range of power, low power consumption
* installation is very easy, immediately available.
* sensitivity tidy, the most convenient volume
* open collector output, suitable for connecting a variety of circuits that can directly drive a relay.
Features:
* without environmental impact, high stability;
* high sensitivity, can be any non-metallic material through the container, such as glass, ceramics, plastics, rubber, etc., the
real non-contact detection;
* liquid, powder can be detected;
* unipolar induction, without affecting the surrounding equipment, suitable for complex environments;
* Wide power supply range, low power consumption;
* installation is very convenient, is immediately available;
* sensitivity neat, easy to use batch;
* collector outputs for connecting various circuit
* Optional transmitter device to achieve alarm and control functions.
Scope:
* sanitary equipment; * chemical industry; * appliances; * industrial switch; * drinking water equipment;
* Food Machinery; * medical equipment level monitoring and alarms.
* without environmental impact, high stability;
* high sensitivity, can be any non-metallic material through the container, such as glass, ceramics, plastics, rubber, etc., the
real non-contact detection;
* liquid, powder can be detected;
* unipolar induction, without affecting the surrounding equipment, suitable for complex environments;
* Wide power supply range, low power consumption;
* installation is very convenient, is immediately available;
* sensitivity neat, easy to use batch;
* collector outputs for connecting various circuit
* Optional transmitter device to achieve alarm and control functions.
Scope:
* sanitary equipment; * chemical industry; * appliances; * industrial switch; * drinking water equipment;
* Food Machinery; * medical equipment level monitoring and alarms.
Installation:
* The sensor vertically mounted detection point outside of the container;
* Only one sensor detection surface, must be tightly bonded to the surface of the vessel wall in order to detect the installation,
leaving no air gap;
* If the punch or curved surface of the container must be filled with non-conductive gel, and then fixed sensor;
* attention to the power polarity, while the voltage between 5 ~ 12VDC, shall not exceed 12VDC, re-connection;
* The sensor vertically mounted detection point outside of the container;
* Only one sensor detection surface, must be tightly bonded to the surface of the vessel wall in order to detect the installation,
leaving no air gap;
* If the punch or curved surface of the container must be filled with non-conductive gel, and then fixed sensor;
* attention to the power polarity, while the voltage between 5 ~ 12VDC, shall not exceed 12VDC, re-connection;
|
The project name
|
Min
|
Typ
|
Max
|
Unit
|
Test Conditions
|
|
Operating voltage
|
4.00
|
|
12.00
|
V
|
|
|
Current consumption I
|
|
5
|
10
|
ma
|
RL=10K
|
|
H state output voltage Voh
|
3.0
|
Vcc
|
12
|
V
|
|
|
L state output voltage Vol
|
|
Vcc-4
|
|
V
|
|
|
Reaction time
|
|
|
0.5
|
Sec
|
|
Instructions:
1, the product can penetrate non-conductive container wall, metal containers or metallized films were unable to use the vessel
wall;
2, easy flow of high viscosity liquid, if the container wall adhesions excessive, it may cause can not be used;
3, the high temperature state, use insulated devices (such as asbestos, etc.), ensure that the sensor sensing surface temperature
is below 70 ℃, but try to reduce the thickness of the spacer layer.
4, to avoid long-term continuous shock mounted in place;
5, the sensor must be installed vertically against the wall of the container, to avoid relative movement;
6, to avoid the sun and moist environment and, if necessary, plus protective cover;
7, high voltage, excessive output short circuit current load or prolonged, it may cause a malfunction.
1, the product can penetrate non-conductive container wall, metal containers or metallized films were unable to use the vessel
wall;
2, easy flow of high viscosity liquid, if the container wall adhesions excessive, it may cause can not be used;
3, the high temperature state, use insulated devices (such as asbestos, etc.), ensure that the sensor sensing surface temperature
is below 70 ℃, but try to reduce the thickness of the spacer layer.
4, to avoid long-term continuous shock mounted in place;
5, the sensor must be installed vertically against the wall of the container, to avoid relative movement;
6, to avoid the sun and moist environment and, if necessary, plus protective cover;
7, high voltage, excessive output short circuit current load or prolonged, it may cause a malfunction.
