- Product Details
- {{item.text}}
Quick Details
-
Model No.:
-
EL-H100
-
Item Name:
-
60KG electromagnetic hidden cabinet lock
-
Lock size:
-
114Lx35Wx23H(mm)
-
Armature plate:
-
75Lx31Wx10H(mm)
-
Holding force:
-
60kg(100Lbs)
-
Voltage:
-
12V DC & 24V (24V need to customize)
-
Current draw:
-
12V/160mA, 24V/200mA
-
Suitable for:
-
File Cabinet ,Display Cabinet
-
Operating temp:
-
-10℃ ~ 55℃ (14°F~131°F)
-
Finishesfor magnetic:
-
Zinc
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
S4A
-
Model Number:
-
EL-600SD
-
Model No.:
-
EL-H100
-
Item Name:
-
60KG electromagnetic hidden cabinet lock
-
Lock size:
-
114Lx35Wx23H(mm)
-
Armature plate:
-
75Lx31Wx10H(mm)
-
Holding force:
-
60kg(100Lbs)
-
Voltage:
-
12V DC & 24V (24V need to customize)
-
Current draw:
-
12V/160mA, 24V/200mA
-
Suitable for:
-
File Cabinet ,Display Cabinet
-
Operating temp:
-
-10℃ ~ 55℃ (14°F~131°F)
-
Finishesfor magnetic:
-
Zinc

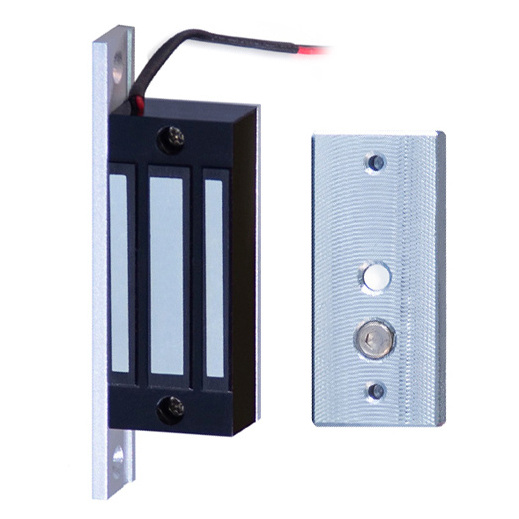

60kgs 100lbs electromagnetic hidden cabinet lock EL-H100
This is Vivian from S4a Industrial Co.,Limited.
We are professional supplier for high quality access controller at competitive price.
Here are our main categoties below:_
- Access Control Panel
- Standalone Access Controller(keypad/smart card/fingerprint)
- Facial & Fingerprint Time Attendance and Access Control
- Electric Magnetic lock / Bolt lock / Strike lock/Cabinet lock
- RFID Card Reader
- Exit Push Button and other accessories etc.
Now show you the Electric Magnetic lock as follow~
60KG Hanging Electromagnetic Lock
1. Holding Force: 60KG(100Lbs)
2. Voltage: DC24V
3. lock size: 114Lx35Wx23H(mm)
4. Armature plate: 75Lx31Wx10H(mm)
|
Specification |
|
|
Item |
Parameter |
|
Lock size |
114Lx35Wx23H(mm) |
|
Armature plate |
75Lx31Wx10H(mm) |
|
Holding force |
60kg(100Lbs) |
|
Voltage |
12V DC & 24V (24V need to customize) |
|
Current draw |
12V/160mA, 24V/200mA |
|
Suitable for |
File Cabinet ,Display Cabinet |
|
Operating temp |
≤+20°C |
|
Surface temp |
-10℃ ~ 55℃ (14°F~131°F) |
|
Suitable humidity |
0~90%(non-comdensing) |
|
Finishes for shell |
Anodized aluminum surface texture processing |
|
Finishesfor magnetic |
Zinc |
|
Finishes for armature |
Zinc |
|
Weight |
0.6kg |
|
Standard packing |
60pcs |
Our service - NO EXCUSE
All technical issues must be solved within 12 hours.
All emails must be replied within 2 hour at working time,
and it must be replied within 24 hours at non-working time.
Pay attention to when buying?
Payment method
1. We accept TT, Paypal, Western Union
2.Small amount by Paypal or Western Union; Big amount by bank transfer
If you have any questions, please feel free contact with us.
Shipment
1. Normally 1-3 working days after receipt of payment. If it is out of stock, we need a little time to process and we will leave notice or messages for that.
2. We do not pay for the customs tax charge from local customs.
Warranty Policy
From the day of purchasing Crypton & S4A products
(in formal purchase invoice date, here in after referred to as: the purchasing date) ,
S4A offer you free warranty
ACB series control board,UHF long range card reader,
Within 2year quality guarantee.
RFID card reader,exit push button,magnetic lock,bolt lock, strike lock,
standalone access controller ,access power supply etc warranty period is 1 years,
There will be labour and parts cost charged if the warranty period is expired;
If the product need to be renovated,
there will be labour cost and handling cost in cured
Why Choose S4A?
S4A obtained more than 9 years experience in
Door access control systems and solutions,
we did many project in local market,
if you need diagram or wiring, just email or call us back at anytime.
we will send relevant according to your request.
In shenzhen ,we have 2office, as :Crypton Electronic Co.Ltd
S4A Industrial Co.Limited
Also we have 1branch office in Doha-Qatar,
also selling door access control systems and provide technicial support.
if you need local installation, we are happy to serve you..
