Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CAISU
-
Year:
-
2020
-
Voltage:
-
380V , 50Hz or Customized
-
Dimension(L*W*H):
-
20mx2.5mx2.2m
-
Power (kW):
-
37
-
Weight:
-
20000 KG
-
Product Name:
-
65/132 PVC Wall Panel Making Machine
-
Raw material:
-
PVC
-
Processing Type:
-
Extruding Equipment
-
Control system:
-
Automatic Control System
-
State:
-
Second-hand
-
Screw type:
-
Double-screw Screw
-
Factory visit:
-
Support
-
Advantage:
-
Affordable Price
-
Producr Species:
-
Rich
-
Feature:
-
High Production Efficiency
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
65/132
-
Screw Speed (rpm):
-
34.7 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CAISU
-
Year:
-
2020
-
Voltage:
-
380V , 50Hz or Customized
-
Dimension(L*W*H):
-
20mx2.5mx2.2m
-
Power (kW):
-
37
-
Weight:
-
20000 KG
-
Product Name:
-
65/132 PVC Wall Panel Making Machine
-
Raw material:
-
PVC
-
Processing Type:
-
Extruding Equipment
-
Control system:
-
Automatic Control System
-
State:
-
Second-hand
-
Screw type:
-
Double-screw Screw
-
Factory visit:
-
Support
-
Advantage:
-
Affordable Price
-
Producr Species:
-
Rich
-
Feature:
-
High Production Efficiency
Products Description
Second-Hand

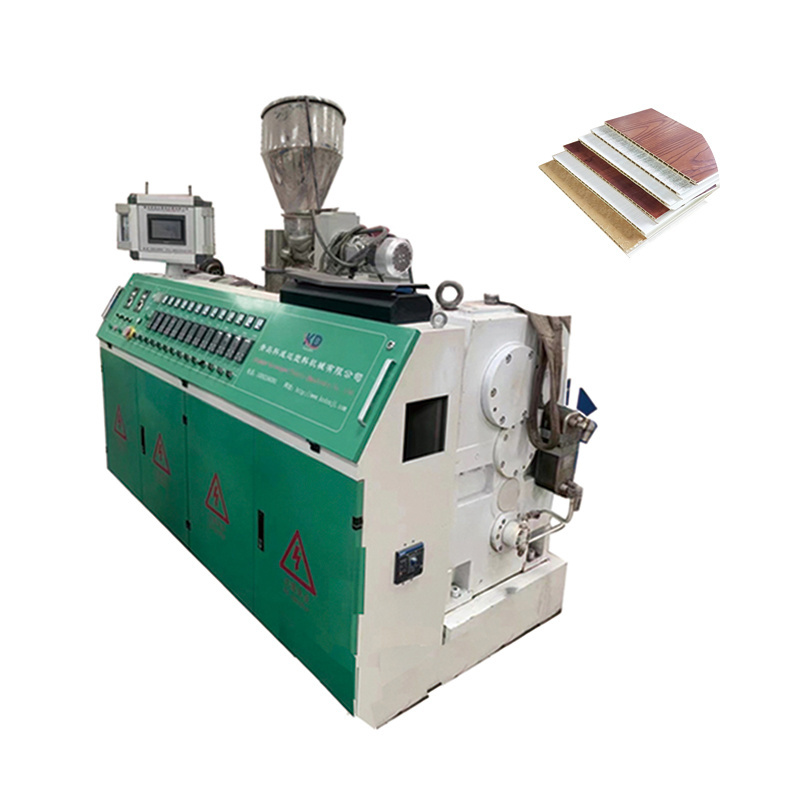

PVC Wall Panel Making Machine
Second-Hand PVC wall Panel production line
includes screw feeder, plastic extruder, mould, vacuum forming table, haul off unit, cutting machine, stacker.
Auxiliary equipments:
mixer, crusher, pulverizer, lamination machine, hot stamping machine, printer and so on.
Features:
1.High filing material, even plasticizing, lower percentage of additive material are needed, stable production, and easy operation.
2.extruder temperature controlled by omron intelligent controller.
3. low power consumption: lowest total production line consumption 25kw/hour.
4. economical price, suitable for large scale investment.
|
Extruder model
|
SJZ65/132
|
|
Motor power(kw)
|
37KW
|
|
Screw diameter(mm)
|
65/132
|
|
Screw rotation speed(rpm/min)
|
34.7
|
|
Output capacity(kg/h)
|
150-250
|
