Quick Details
-
Brand Name:
-
Lake
-
Model Number:
-
Customized
-
Voltage:
-
Requirement
-
Dimension(L*W*H):
-
Irregular
-
Weight:
-
2 KG
-
Features:
-
Crank Balance Pumping Units
-
Warranty:
-
1 Year
-
Product name:
-
API 11 E Oilfield Conventional Beam Pumping Unit / Pump Jack
-
After-sales Service Provided:
-
Overseas third-party support available
-
Key Words:
-
pumping unit, oil jack, pump jack
-
Standard:
-
API 11E
-
Warranty period:
-
1 year
-
MOQ:
-
1set
-
Color:
-
red / black or required
-
Blanced type:
-
counterweight balance type
-
Delivery time:
-
45 days
-
Certification:
-
API 11E
Quick Details
-
Core Components:
-
pumping unit / pump jack / oil jack
-
Production Capacity:
-
100%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Lake
-
Model Number:
-
Customized
-
Voltage:
-
Requirement
-
Dimension(L*W*H):
-
Irregular
-
Weight:
-
2 KG
-
Features:
-
Crank Balance Pumping Units
-
Warranty:
-
1 Year
-
Product name:
-
API 11 E Oilfield Conventional Beam Pumping Unit / Pump Jack
-
After-sales Service Provided:
-
Overseas third-party support available
-
Key Words:
-
pumping unit, oil jack, pump jack
-
Standard:
-
API 11E
-
Warranty period:
-
1 year
-
MOQ:
-
1set
-
Color:
-
red / black or required
-
Blanced type:
-
counterweight balance type
-
Delivery time:
-
45 days
-
Certification:
-
API 11E

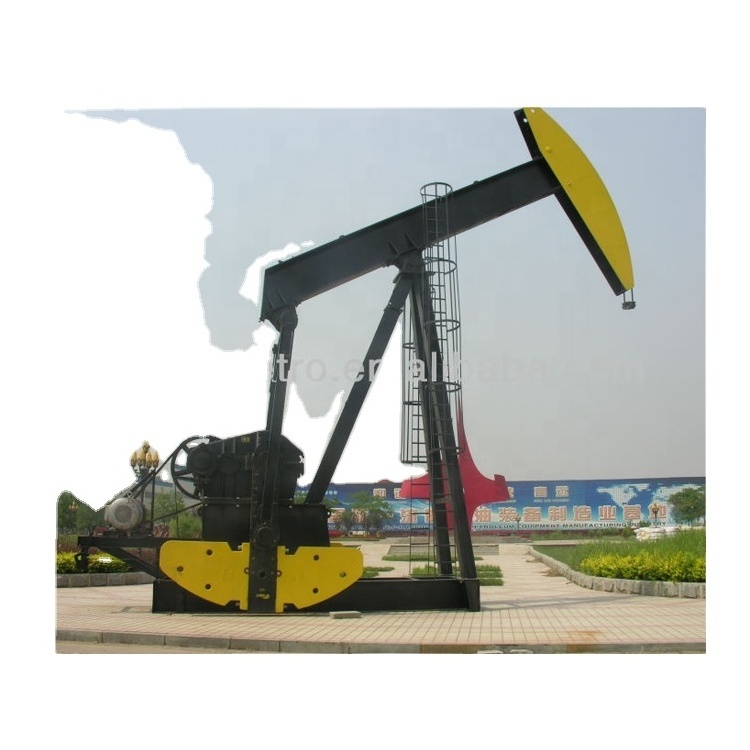

API 11 E Oilfield Conventional Beam Pumping Unit / Pump Jack / Oil Jack
1.Production Description:
beam pumping unit using adjustable arc-shaped beam rear arm, between the beam and the beam connecting the special structure of the flexible member, the production strictly according to API Spec 11E or Q / SL 1361 - 2002 standards, with a stroke length, dynamic load is small, small torque fluctuations, high efficiency, low energy consumption, smooth, easy to start and so on. The aircraft is equipped with multi-function electrical cabinets, with short circuit and overload voltage protection, reactive power compensation, restoration from the start, the motor speed and other functions, low-powered devices are equipped with investment, easy maintenance and management. Saving 20-60% than conventional machines, installed power reduced by about 50%, and can save power system investment.
Mainly used for mining low-viscosity crude oil and high water content can also be mined for viscous crude oil.
|
NO. |
Model |
Load Rating
|
Stroke Length
|
Stroke Frequency
|
|
1 |
C-40D-76-48 |
7600 |
48;37;26 |
6;9;12 |
|
2 |
C-57D-76-54 |
7600 |
54;41;28 |
6;9;12 |
|
3 |
C-80D-133-54 |
13300 |
54;43;31 |
6;9;12 |
|
4 |
C-80D-119-64 |
11900 |
64;52;40 |
6;8;10 |
|
5 |
C-114D-119-86 |
11900 |
86;76;59 |
6;8;10 |
|
6 |
C-114D-143-64 |
14300 |
64;52;40 |
6;8;10 |
|
7 |
C-114D-143-74 |
14300 |
74;62;50 |
6;8;10 |
|
8 |
C-160D-173-86 |
17300 |
86;74;61 |
6;8;10 |
|
9 |
C-160D-200-76 |
20000 |
76;62;51 |
6;8;10 |
|
10 |
C-228D-213-120 |
21300 |
120;102;85 |
5;7;9 |
|
11 |
C-228D-246-86 |
24600 |
86;74;61 |
5;7;9 |
|
12 |
C-228D-173-100 |
17300 |
100;86;71 |
5;7;9 |
|
13 |
C-320D-305-120 |
30500 |
120;102;85 |
5;7;9 |
|
14 |
C-320D-256-120 |
25600 |
120;100;86 |
5;7;9 |
|
15 |
C-456D-305-120 |
30500 |
120;102;85 |
5;7;9 |
|
16 |
C-456D-305-144 |
30500 |
144;124;106 |
4;6;8 |
|
17 |
C-912D-427-192 |
42700 |
192;164;136;110 |
4;6;8 |
|
18 |
C-1280D-365-192 |
36500 |
192;164;136;110 |
4;5;6 |
|
19 |
C-1280D-427-192 |
42700 |
192;164;136;110 |
4;5;6 |
|
20 |
C-1280D-427-216 |
42700 |
216;192;168;144 |
4;5;6 |
|
21 |
C-1824D-427-192 |
42700 |
192;164;136;110 |
4;5;6 |
|
22 |
C-1824D-427-216 |
42700 |
216;192;168;145 |
4;5;6 |
