Quick Details
-
Brand Name:
-
MAIXI
-
Model Number:
-
Tracer6415AN
-
Work Time (h):
-
24
-
Max PV Power:
-
3000W
-
Max PV Voltage:
-
150V
-
Certificate:
-
CE ROHS
-
Warranty:
-
2 Years
-
Product Name:
-
epever 60a mppt charge controller
-
Battery type:
-
Lead-acid/Gel/Lithium Batteries
-
Working Temperature:
-
-25℃~+45℃(Full Load)
-
MPPT efficiency:
-
99.5%
-
Enclosure:
-
IP30
-
Rated Current:
-
50A/60A/80A/100A
-
Display:
-
LCD Display
-
Communication:
-
RS485 (RJ45 Interface)
-
Certificates:
-
CE ROHS FCC
-
Accessories:
-
MT50/USB to RS485 cable/WIFI Serial Adapter etc
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Water Heater Controller, Solar Working Station, Lighting Controller, Solar System Controller
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
MAIXI
-
Model Number:
-
Tracer6415AN
-
Work Time (h):
-
24
-
Max PV Power:
-
3000W
-
Max PV Voltage:
-
150V
-
Certificate:
-
CE ROHS
-
Warranty:
-
2 Years
-
Product Name:
-
epever 60a mppt charge controller
-
Battery type:
-
Lead-acid/Gel/Lithium Batteries
-
Working Temperature:
-
-25℃~+45℃(Full Load)
-
MPPT efficiency:
-
99.5%
-
Enclosure:
-
IP30
-
Rated Current:
-
50A/60A/80A/100A
-
Display:
-
LCD Display
-
Communication:
-
RS485 (RJ45 Interface)
-
Certificates:
-
CE ROHS FCC
-
Accessories:
-
MT50/USB to RS485 cable/WIFI Serial Adapter etc

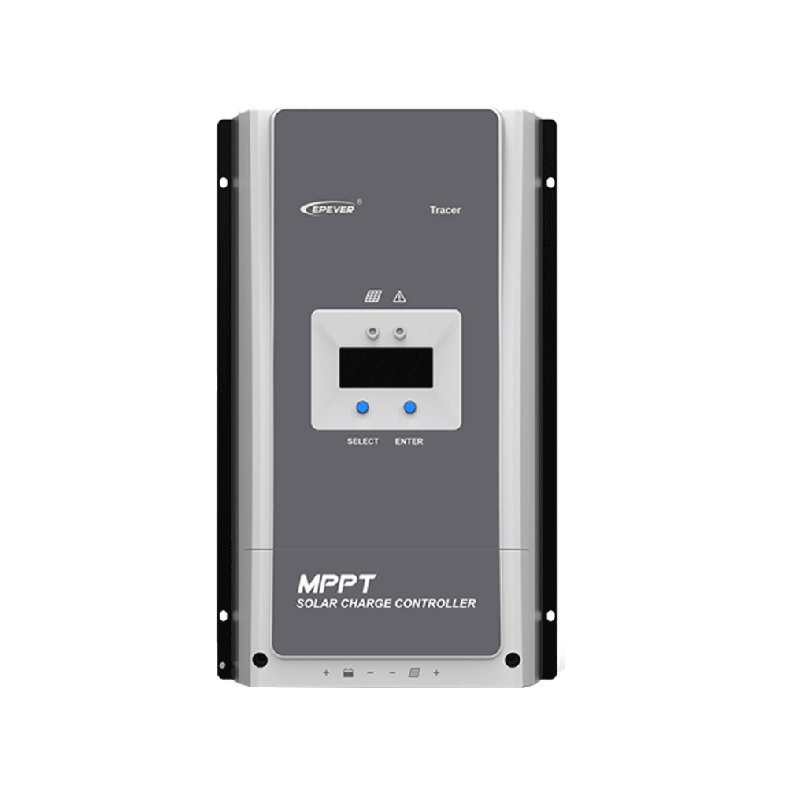

Epever Tracer6415An Mppt 99% Efficiency 60A Max. Pv 150V Solar Boost Regulator Solar Charge Controller Manual
Product Description
Tracer AN series MPPT solar charge controller adopts common positive design and advanced MPPT control algorithm. The products can track the MPP point fast and accurately in any situation which will improve energy efficiency and obtain the maximum solar energy.
Highlights:
Voltage: 12/24/36/48V Auto Work
Current: 6 0Amp
Max PV Voltage: 150V
Max PV Input: 750 W(12V), 1500W(24V), 2250W(36V), 3000W(48V)
Advanced MPPT t echnology
Current: 6 0Amp
Max PV Voltage: 150V
Max PV Input: 750 W(12V), 1500W(24V), 2250W(36V), 3000W(48V)
Advanced MPPT t echnology
High tracking efficiency above: 99.5%
Support up to
8 units in parallel
Support lead-acid(Sealed)/Gel/Lithium(LiFO4) batteries
Paramenters
|
Series
|
Tracer-AN
|
|
|
|
|||
|
Model
|
Tracer5415AN
|
Tracer6415AN
|
Tracer8415AN
|
Tracer10415AN
|
|||
|
Norminal system voltage
|
12/24/36/48VDC Auto Work
|
|
|
|
|||
|
Rated charge current
|
50A
|
60A
|
80A
|
100A
|
|||
|
Rated charge power
|
625W/12V
1250W/24V
1875W/36V
2500W/48V
|
750W/12V
1500W/24V
2250W/36V
3000W/48V
|
1000W/12V
2000W/24V
3000W/36V
4000W/48V
|
1250W/12V
2500W/24V
3750W/36V
5000W/48V
|
|||
|
Battery type
|
Lead-acid(Sealed)/Gel/Lithium(LiFO4)
|
|
|
|
|||
|
Max. conversion efficiency
|
≤98.0%
|
|
|
|
|||
|
MPPT tracking efficiency
|
≥99.50%
|
|
|
|
|||
|
Max. PV open circuit voltage
|
150V①; 138V②
|
|
|
|
|||
|
MPP voltage range
|
(Battery voltage +2V)～108V
|
|
|
|
|||
|
Equalization voltage
|
Sealed:14.6V, Flooded: 14.8V, User-defined: 9-17V
|
|
|
|
|||
|
Boost voltage
|
Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V, User-defined: 9-17V
|
|
|
|
|||
|
Float voltage
|
Gel/Sealed/Flooded: 13.8V, User-defined: 9-17V
|
|
|
|
|||
|
Self Consumption
|
≤12mA
|
|
|
|
|||
|
Temperature compensation
|
-3mV/℃/2V(Default)
|
|
|
|
|||
|
Relative humidity
|
≤95%, N.C.
|
|
|
|
|||
|
Enclosure
|
IP30
|
|
|
|
|||
|
RS485 interface
|
5VDC/100mA
|
|
|
|
|||
|
Operating Temp. range
|
-25℃～+50℃(100% input and output)
|
|
|
|
|||
|
Dimensions(L*W*H)mm
|
261*216*119
|
340*236*119
|
394*240*134
|
394*242*143
|
|||
|
Net weight
|
3.50KG
|
4.50KG
|
6.1KG
|
7.40KG
|
|||
|
Gross weight
|
4.50KG
|
5.70KG
|
7.60KG
|
9KG
|
|||
①At minimum operating environment temperature.
②At 25℃ environment temperature.
OPTIONAL ACCESSORIES
MT50 Remote Meter
Connector Type: RJ45
Dimension: 114*114mm
2m communication cable
Working temp.: -20℃-+70℃
eBOX-WIFI-01 Adapter
Input voltage: 5VDC
Standby power consump.: 0.20W
Interface type: RJ45
Dimension: 51*67*24.5mm
USB to RS485 Cable
CC-USB-RS485-150U
PC communication cable
Line length: 1.5m
RJ45 connector
eLOG01 Logger
Input voltage: 4-10VDC
Interface: 2 RJ45 1 Micro USB
Dimension: 71*67.62*25.8mm
Working temp.: -25℃-+75℃
eBOX-BLE-01 Adapter
Input voltage: 5VDC
Standby power consump.: 0.04W
Interface type: RJ45
Dimension: 51*67*24.5mm
Standby power consump.: 0.04W
Interface type: RJ45
Dimension: 51*67*24.5mm
Remote Temperature Sensor
RTS300R47K3.81A
Line length: 3m
Rated resistance: 47K
Connector: 3.81mm/2P
Packing & Delivery
The MPPT solar charge controllers packed by
customized Inner&Outer cartons+wooden pallets
available for sea shipment to protect the goods arrived in good conditions.
Package can be customized according to customer's demands(LOGO design)
Package can be customized according to customer's demands(LOGO design)
We chose most economical shipment according to customer demands(By international EXPRESS(DHL, FedEx, UPS, TNT), By Air, By Train, By Sea all available).
We support DDP solution(Delivered Duty Paid) , which helps you import the products easily.
We support DDP solution(Delivered Duty Paid) , which helps you import the products easily.
Workshop
Application
The MPPT solar charge controllers can be used for
various applications, e.g. solar RV, household system, solar boat and field monitoring, etc, pleasured to discuss your solar system details.
