Quick Details
-
Power (kW):
-
3
-
Range of Spindle Speed(r.p.m):
-
3200 - 5700 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Guofeng
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
Variable
-
Weight (KG):
-
300 KG
-
Marketing Type:
-
Hot Product 2021
-
Product name:
-
Pulverizer/grinding machine Dry Small Fish Dry Ginger Powder
-
Dust collect device:
-
Optional
-
Surface Treament:
-
Mirror polishing
-
Function:
-
Powder Flour Grinding
-
Suitable for:
-
Brittle materials
-
Advantage:
-
High Efficiency
-
Usage:
-
Animal Poultry Livestock Cutting Feeding
-
Color:
-
Clients' Requirement
-
Motor:
-
China Famous Brand
-
Package:
-
Plywood Case
Quick Details
-
Output (kg/h):
-
20 - 1000 kg/h
-
Feeding Size (mm):
-
6 - 15 mm
-
Output Size (mesh):
-
12 - 120 mesh
-
Power (kW):
-
3
-
Range of Spindle Speed(r.p.m):
-
3200 - 5700 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Guofeng
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
Variable
-
Weight (KG):
-
300 KG
-
Marketing Type:
-
Hot Product 2021
-
Product name:
-
Pulverizer/grinding machine Dry Small Fish Dry Ginger Powder
-
Dust collect device:
-
Optional
-
Surface Treament:
-
Mirror polishing
-
Function:
-
Powder Flour Grinding
-
Suitable for:
-
Brittle materials
-
Advantage:
-
High Efficiency
-
Usage:
-
Animal Poultry Livestock Cutting Feeding
-
Color:
-
Clients' Requirement
-
Motor:
-
China Famous Brand
-
Package:
-
Plywood Case
Product Description

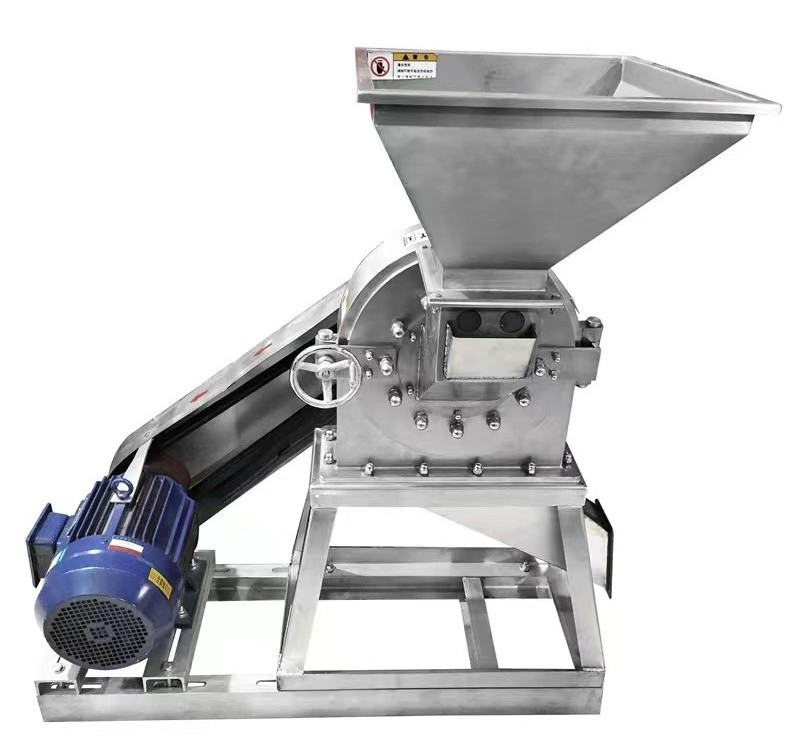

Gear Dis Dry Grinding Machine
The food grade toothed disc crusher is made of 304 stainless steel. The door of the crusher is equipped with a fixed toothed disc,on which a ring of fixed toothed ring with steel teeth is installed. The main shaft is provided with a movable tooth disc, and the movable tooth disc is provided with movable teeth. The movable teeth and the fixed gear ring on the movable gear plate are staggered with each other.
Technical Parameter
|
Model
|
Capacity
(kg/h)
|
Speed
(rpm)
|
Feed size
(mm)
|
Crush size
(mm)
|
Power
(kw)
|
|
GF-20
|
20-150
|
4500
|
6
|
12-120
|
4
|
|
GF-30
|
30-300
|
3800
|
10
|
12-120
|
5.5
|
|
GF-40
|
40-400
|
3400
|
12
|
12-120
|
7.5
|
|
GF-50
|
80-500
|
2900
|
12
|
12-120
|
11
|
|
GF-60
|
100-600
|
2400
|
15
|
12-120
|
22
|
|
GF-80
|
200-1000
|
2200
|
15
|
12-120
|
37
|
Application field
1.The Universal pulverizer may be widely applied in industries, such as chemical and food,etc., for grinding of dry and fragile materials. Materials with low softening point and big viscosity are not appropriate for this machine.
2.Components of this machine which have contact with materials to be crushed are all made of stainless steel with good anti-corrosive property. The housing is in a full enclosure for the convenience of cleaning. The interior walls are all treated to achieve evenness and smoothness of the surface, thus to ensure production of such materials as food and chemical in better conformity.
Product Show
Packaging and shipping
1.For small size,crate case is adopted.
2.For export,we usually use different packs for different products according to its size.
3.For big size and heavy good,fumigation-free wooden case or pallet is offered for 20’ or 40’ container or bulk shipment.
2.For export,we usually use different packs for different products according to its size.
3.For big size and heavy good,fumigation-free wooden case or pallet is offered for 20’ or 40’ container or bulk shipment.
