Quick Details
-
Weight:
-
650-1250g
-
Width:
-
92-100cm
-
Standing Temperature:
-
800 centigrade
-
Product name:
-
High Silica-reinforced Fire-resistant Silica-based fiberglass fabric
-
Material:
-
Silica Fiber
-
Color:
-
golden
-
Good Features:
-
High Temperature Reistance
-
Thickness:
-
0.75-1.4mm
-
Application 1:
-
heat insulation
-
Application 2:
-
Welding protection
-
Sample:
-
free
-
Package:
-
carton
-
weave style:
-
satin weave
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
jiahe
-
Model Number:
-
MS-600,700,1100,1200
-
Weight:
-
650-1250g
-
Width:
-
92-100cm
-
Standing Temperature:
-
800 centigrade
-
Product name:
-
High Silica-reinforced Fire-resistant Silica-based fiberglass fabric
-
Material:
-
Silica Fiber
-
Color:
-
golden
-
Good Features:
-
High Temperature Reistance
-
Thickness:
-
0.75-1.4mm
-
Application 1:
-
heat insulation
-
Application 2:
-
Welding protection
-
Sample:
-
free
-
Package:
-
carton
-
weave style:
-
satin weave

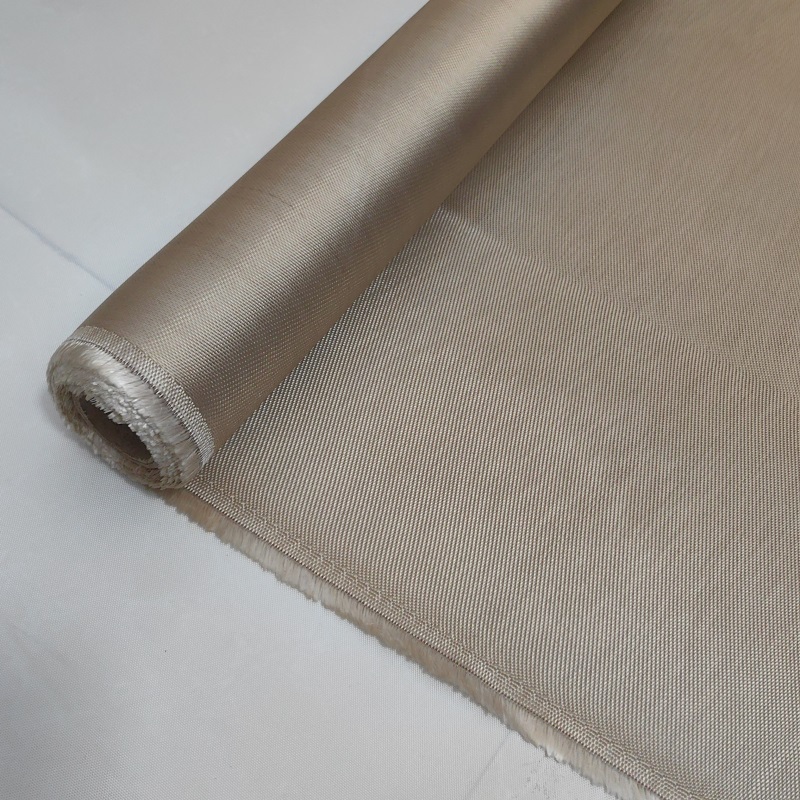

Metallurgy thermal insulation material medium silica fabric
Medium silica glass fiber cloth, with a silicon dioxide content of 70% ± 5%, is a high-temperature resistant inorganic fiber product that can be used for a long time in an environment of 800 ℃.
Properties of Product:
1. It does not contain any asbestos or ceramic cotton and is completely harmless to human health
2. Low thermal conductivity and good insulation effect
3. Good electrical insulation performance
4. Compared to high silica glass fiber cloth, it has higher tensile strength and wear resistance
Application:
1.Thermal insulation and protection materials for metallurgy, shipbuilding, and other industries.
2. Heavy machinery manufacturing enterprise, large-scale project construction site fire protection.
3. Welding protective materials.
4. Fire prevention and extinguishing materials.
Technical Specification:
| Product code | Weave |
Weight g/m2 |
Width cm |
Thickness mm |
Warp yarn yarns/cm |
Weft yarn yarns/cm |
Warp strength N/inch |
Weft strength N/inch |
Sio2% |
Temperature ºC |
| MS600 | Satin 8HS | 650±30 | 92 ±1 | 0.75 ±0.05 | 18 ±2 | 13 ±2 | >1200 | >1000 | 70% ±5% | 800 ºC |
| MS700 | Satin 8HS | 750 ±30 | 100 ±1 | 0.85 ±0.05 | 18 ±2 | 13 ±2 | >1400 | >1100 | 75% ±5% | 900 ºC |
| MS1100 | Satin 12HS | 1150 ±50 | 92 ±1 | 1.30 ±0.1 | 18 ±2 | 13 ±2 | >1500 | >1200 | 70% ±5% | 800 ºC |
| MS1200 | Satin 12HS | 1250 ±50 | 100 ±1 | 1.4 ±0.1 | 18 ±2 | 13 ±2 | >1700 | >1400 | 75% ±5% | 900 ºC |
