- Product Details
- {{item.text}}
Quick Details
-
OEM:
-
Available
-
Origin:
-
Guangdong China
-
Function:
-
HD Video Transmitter Receiver
-
Color:
-
Black or customized
-
Brand:
-
HD Video Transmitter Receiver
-
Packing:
-
Carton or Customized
-
Type:
-
HD Video Transmitter Receiver
-
Warranty:
-
Dilate
-
Payment:
-
Any payment
-
Shipping:
-
Customized
Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
HY-CAT5E6-60M-S
-
Place of Origin:
-
Guangdong, China
-
OEM:
-
Available
-
Origin:
-
Guangdong China
-
Function:
-
HD Video Transmitter Receiver
-
Color:
-
Black or customized
-
Brand:
-
HD Video Transmitter Receiver
-
Packing:
-
Carton or Customized
-
Type:
-
HD Video Transmitter Receiver
-
Warranty:
-
Dilate
-
Payment:
-
Any payment
-
Shipping:
-
Customized
HDMI Extender 60M Over Dual Cat 5e/6
| INTRODUCTION |
1.This kind of HDMI Extender by CAT-5e/6 uses two pieces of UTP cable with cross stand inside to extend the HDTV dispaly up to 50 meters for 1080p. It not only breaks the limitation of the HDMI cable transmission length,but also CAT-5e/6.has more flexibility and convenience in cable construction.
2.It is equipped with HDMI (high definition multimedia interface)connectors and is capable of supporting DVI(digital visual interface) equipment when used with an HDMI to DVI Adapter,providing greater flexibility and options when integrating several home theater components.
3.This product offers solutions for residential consumers:HDTV retail and show site.HDTV, STUB, DVD and Projector factories,noise, space and security concerns.data center control,information distribution,conference room presentation,school and corporate training environments.
| BENEFITS |
1) The length of HDMI cable is fixed and unchangeable after it is produced.Because the HDMI connector can only be soldered or terminated by the professional workers in factory. the users can not reduce or increase by themselves.
2)Because the header of the long HDMI cable is big, using it must in hidden method.What’s more,it is not easy to bend the HDMI cable and to pull it through the in-wall tube or tray.But,CAT-5e/6 cable has no such probems.
3) Using this Extender together with UTP cable with cross stand insidem the transmission distance can be up to 50 meters for 1080p. For the general HDMI cables, they must be customized when the length is over 10 meters.
| SPECIFICATIONS |
|
Operating Frequency |
|
|
Vertical Frequency Range |
50/60Hz |
|
Video Amplifier Bandwidth |
1.65Gbps/165MHz |
|
Resolutions(HDMI) |
|
|
Inter laced(50&60Hz) |
480i,576i,1080i |
|
Progressive(50&60Hz) |
480p,576p,1080p |
|
Mechanical |
|
|
Size(H-W-D) |
45mmW x 25mmH x 81mmD |
|
Weight(Net) |
0.24KGs |
|
Warranty |
|
|
Limited Warranty |
1 Year Parts and Labor |
|
Environmental |
|
|
Operating Temperature |
0 ℃ to + 70 ℃ |
|
Operating Humidity |
10% to 85% RH(no condensation) |
|
Storage Temperature |
-10 ℃ to + 80 ℃ |
|
Storage Humidity |
5% to 90% RH(no condensation) |
|
Power Requirement |
|
|
External Power Supply |
5V DC@2A |
|
Power consumption(Max) |
5W |
|
Regulatory Approvals |
|
|
Converter Unit |
FCC,CE ,UL |
|
Power Supply |
UL,CE,FCC |
|
Accessories Adapter |
|
|
AC Power Adapter |
US standard,UK standard and so on |
|
Signal Inputs/Output |
|
|
Input Video Signal |
5 Voits p-p(TTL) |
|
Maximum Single Link Range |
1920x1080P |
|
Output Video |
HDMI 1.2a + HDCP1.0/1.1 |
|
HDMI Input/Output Connector |
Type A 19 pin |

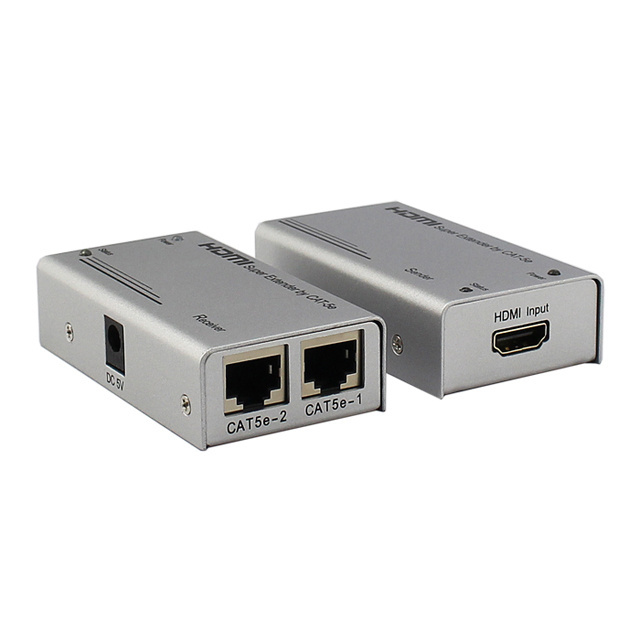

| PRODUCT PICTURES |
| FEATURE |
