- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
KSOURCE
-
Usage:
-
Chemical Industry Product
-
Shape:
-
ring
-
Raw material:
-
Clay
-
MOQ:
-
1 Cubic Meter
-
Color:
-
Light Yellow
-
Size:
-
25-80mm
-
Feature:
-
tower packing
-
Advantage:
-
High temperature resistance
-
Keywords:
-
Al2o3 Alumina Ceramic rings
Quick Details
-
Material:
-
Alumina Ceramic
-
Place of Origin:
-
Jiangxi, China
-
Model Number:
-
KSOURCE-CP05
-
Brand Name:
-
KSOURCE
-
Usage:
-
Chemical Industry Product
-
Shape:
-
ring
-
Raw material:
-
Clay
-
MOQ:
-
1 Cubic Meter
-
Color:
-
Light Yellow
-
Size:
-
25-80mm
-
Feature:
-
tower packing
-
Advantage:
-
High temperature resistance
-
Keywords:
-
Al2o3 Alumina Ceramic rings
Product Description
Product introduction:

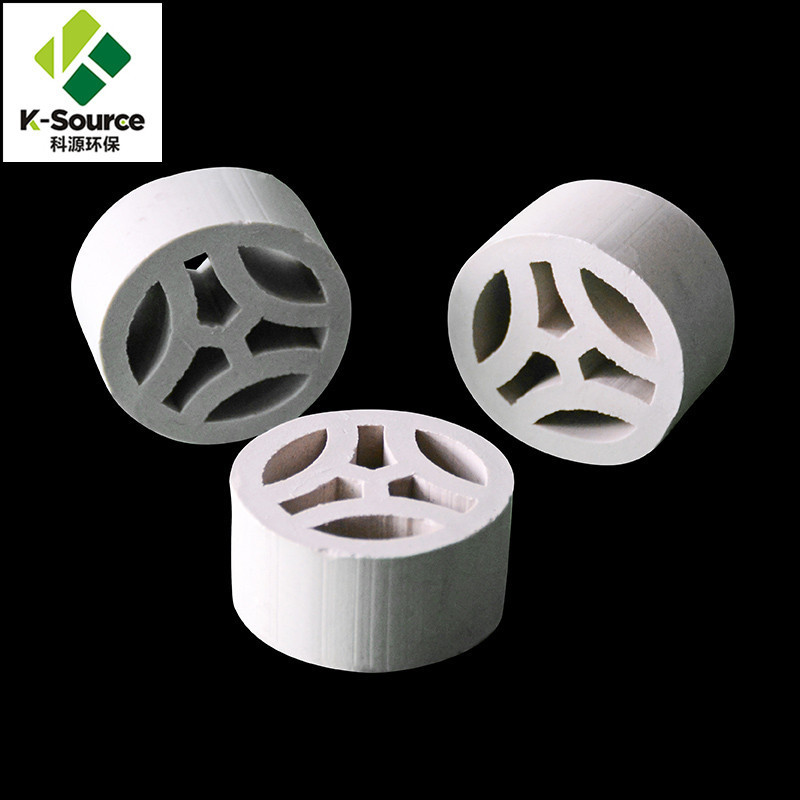

Ceramic Y-shaped partition ring (ceramic 3Y ring; ceramic Tri-Y ring) is an improved design based on cascaded mini ring, conjugate ring, flat ring, and concave saddle ring, taking into account shape, appearance, and structure. The main characteristics of ceramic three Y-ring packing are: unique and superior structure, large air flow rate, large specific surface area, uniform gas-liquid distribution, high pressure reduction and strength, and superior gas-liquid mass transfer performance compared to ordinary packing.
Application:
Ceramic 3Y ring fillers are suitable for industries such as chemical, petroleum, fertilizer, sulfuric acid, fine chemical, pharmaceutical, and environmental protection. The ceramic 3 Y ring packing has been applied to manufacturers such as petrochemical plants, refineries, and refining enterprises, with good results.
|
SiO2 + Al2O3
|
>92%
|
CaO
|
<1.0%
|
|
SiO2
|
>76%
|
MgO
|
<0.5%
|
|
Al2O3
|
>17%
|
K2O+Na2O
|
<3.5%
|
|
Fe2O3
|
<1.0%
|
Other
|
<1%
|
|
Water absorption
|
<0.5%
|
Moh’s hardness
|
>6.5 scale
|
||
|
Porosity
|
<1%
|
Acid resistance
|
>99.6%
|
||
|
Specific gravity
|
2.3-2.40 g/cm3
|
Alkali resistance
|
>85%
|
||
|
Max Operation temp
|
|
|
1200℃
|
||
|
Type
|
Dimension mm
|
Surface area m2/m3
|
Void rate ％
|
Bulk Density
kg/m3 |
Bulk Numbers Per M3
|
Dry packing Factor m-1
|
|
φ25
|
25*13*2
|
240
|
74
|
760
|
87000
|
390
|
|
φ38
|
38*20*3
|
160
|
75
|
740
|
27600
|
260
|
|
φ50
|
50*30*4
|
138
|
75
|
745
|
10100
|
233
|
|
φ80
|
80*50*9
|
90
|
70
|
710
|
1910
|
262
|
Detailed Images
25mm,38mm,50mm,80mm
Related Products
Certificate
Packing&Shipping
|
Package Type
|
Container Load Capacity
|
|
|
Delivery time
|
Quality
Insurance
|
Payment Terms
|
||
|
|
20 GP
|
40 GP
|
40 HQ
|
|
|
|
||
|
Ton bag
|
20-24 m3
|
40 m3
|
48 m3
|
Within 3-10 days
|
Chinese National Standard; Offer quality assurance as request.
|
T/T, L/C, Paypal, West Union
|
||
Company Introduction
Pingxiang Ksource Chemical Packing Co., Ltd.
is a large-scale production enterprise that mainly produces various chemical packings and packings. For more than 20 years, it has been mainly engaged in the production of Ceramic Ball, Random Packing, Activated Alumina, Honeycomb Ceramic, Structured Packing, Molecular Sieve. The company is located in the Industrial Ceramics Central Industrial Zone of Pingxiang City, Jiangxi Province, which is adjacent to Hunan Province. It is close to Zhejiang-Jiangxi Railway, National Highway 320, 319 and Shanghai-Kunming Expressway, and the transportation is very convenient.
Our Services & Strength
Our company has more than 20 senior technical and professional technical personnel, more than 200 ordinary employees, and a registered capital of 30 million yuan. With advanced production equipment and strong technical force, it mainly produces all kinds of environmental protection products for chemical tower packing. Ksource is committed to providing professional, reliable, complete
and competitive products for petroleum, chemical, metallurgy, pharmaceutical, power plant, fertilizer and other industries, which are well received by users.
We always believe in "integrity-based, customer first" and adhere to the principle of "quality is life, innovation and professionalism". We always exceed customer expectations and provide customers with reasonable, scientific and efficient procurement solutions & Technical support They, we pursue perfect results and cooperation, so that our customers get the greatest satisfaction.
Ksource will satisfy all customers' needs with the best products, the most competitive prices and the most complete after-sales service. Warmly welcome new and old customers to go hand in hand and cooperate happily!
FAQ
Q:Are you trade company or manufacture?
A:We are manufacture with more than 20 years experience,and the price is the factory price.
Q:How to control the quality?
A:We have strict quality by QC team.
Q:How long is the delivery time?
A:It is about 5 days after payment for stoct goods,10-15 days for new producing goods.
Q: How to get the sample ?
A: Please contact us for send your samples.
Q:What is the payment terms?
A:Flexible and diverse payment ways can be chosen, make you more convenient .
Generally,30% in advance,70% before shipment
Q:Can you do OES service?
A:Yes,size & shape could be made as customer requirment
