Ultrasonic Remove Swimming Pool And Lake Algae Control Green Algae Machine

Principle of ultrasonic algae removal
When the high-frequency vibration of the power ultrasonic transducer acts on the water, it will have the following effects:
Mechanical action: Ultrasonic waves cause mechanical vibration of related objects in the process of propagation.
Thermal effect: High-frequency vibration will cause the temperature of the medium to rise, and the vibration energy will be converted into heat energy.
Cavitation: High-frequency vibration in the liquid will cause the liquid medium to expand and contract alternately. When the liquid is torn, it will produce alternating positive and negative pressures, and will produce partial vacuum microbubble nuclei. The microbubble nucleus instantly expands, closes and oscillates under the action of ultrasound. Under a certain energy threshold, the microbubbles collapse and instantly generate shock waves and microjets up to 1000 atmospheres.
Pyrolysis and free radical action: The water vapor generated by the microbubble nucleus splits and forms chains under high temperature and high pressure, thereby generating free radical OH. When the bubbles burst, OH enters the water. OH is a super oxidant. For organic substances in the ultrasonic field, including important life macromolecular substances (such as proteins and nucleic acids), chemical reactions can occur quickly under the action of free radicals. Generally speaking, hydrophobic and volatile organic compounds can enter cavitation bubbles for pyrolysis. Hydrophobic and volatile organic compounds can be oxidized by OH at the gas-liquid interface of the vacuole or gaseous solution.
Application of aquatic biological insecticide and algae removal.
Studies have shown that ultrasound has an effect in water and can significantly resist the growth of algae under certain conditions.
Features:
Significant energy savings can be reflected in the 15 working days.
design, simple structure, low failure rate
ultrasonic frequency automatic tracking, automatic protection
comprehensive bending vibration mode algae, algae can reach more than 85%
simple, safe, efficient, continuous and strong, easy to maintain.

Technical parameters:
1, the power / signal generator: Model OKS-QSZ100W optional power output: 5-100W frequency: 37-42KHZ controlled pulsed ultrasonic transmitter Weight about: 4 kg
2, the piezoelectric frequency energy converter: CV33, PZT lead zirconate titanate piezoelectric ceramics, stainless steel,Cable length: 5m (waterproof cable) launch tube: single head launch tube
3, ultrasonic radiation range: Circle 30M-50M

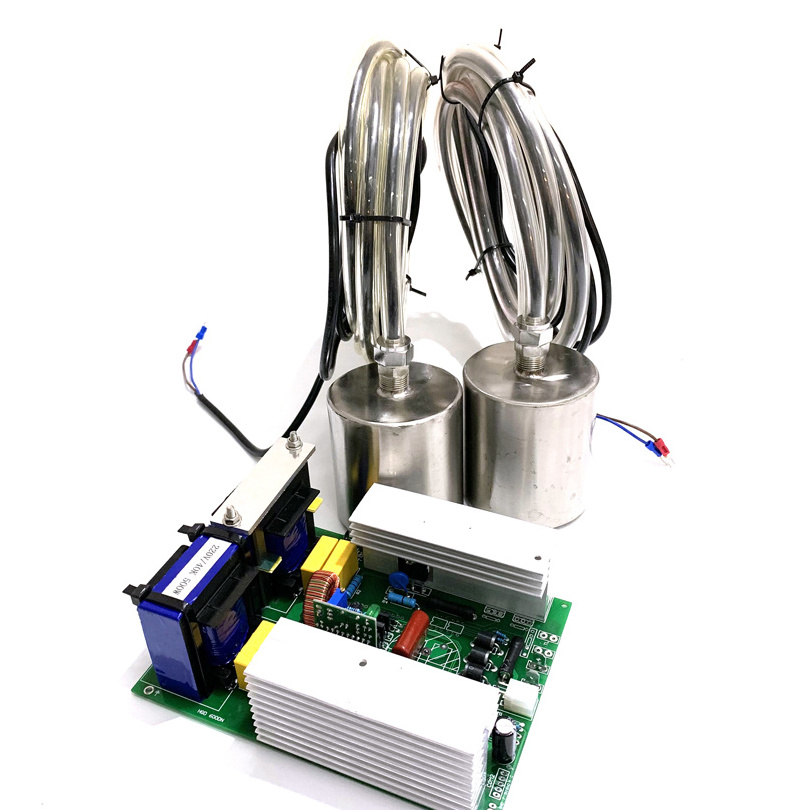

Composition: double launch tube, float tube, cables, control box
Ultrasonic algaecide advantages:
short time required to repair the environment; restoration project has no effect on the surrounding environment; repair technology funds require a minimum;
no secondary pollution; situ repair can be cleared in place, easy to operate pollutants;
running costs are low, about as long as 8 percent of traditional pollution control methods.
Applications
1. Industry:
Petrochemical wastewater treatment systems; fire water reservoir; hydropower;
Industrial wastewater treatment tanks; medium and large cooling towers reservoir.
2. agricultural areas:
Reservoirs, ponds, reservoirs, lakes, ponds diarrhea; irrigated agriculture, animal husbandry of the reservoir.
3. Urban Water Environmental Governance:
Water plants, sewage treatment plants; drinking water storage tank; urban landscape, fountains;
Park artificial lake, artificial river.

Ultrasonic Remove Swimming Pool And Lake Algae Control Green Algae Machine
