Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LEISON MOTOR
-
Model Number:
-
ZYT114
-
Torque:
-
2.4-3.86N.m
-
Direction of Rotation:
-
CW, CCW
-
Shaft diameter:
-
16mm
-
Shaft length:
-
Customized
-
Bearing Type:
-
Oil Bearing
-
Motor dimension:
-
114mm
-
Motor length:
-
204mm,244mm
-
Shaft Material:
-
Carbon Steel or Stainless Steel
-
Shaft type:
-
D-cut, round or keyway
-
Motor net weight:
-
6.82 to 8.2Kg
-
Keywords:
-
600w permanent magnet dc motor
Quick Details
-
Speed(RPM):
-
1000rpm to 3000rpm
-
Continuous Current(A):
-
Current
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LEISON MOTOR
-
Model Number:
-
ZYT114
-
Torque:
-
2.4-3.86N.m
-
Direction of Rotation:
-
CW, CCW
-
Shaft diameter:
-
16mm
-
Shaft length:
-
Customized
-
Bearing Type:
-
Oil Bearing
-
Motor dimension:
-
114mm
-
Motor length:
-
204mm,244mm
-
Shaft Material:
-
Carbon Steel or Stainless Steel
-
Shaft type:
-
D-cut, round or keyway
-
Motor net weight:
-
6.82 to 8.2Kg
-
Keywords:
-
600w permanent magnet dc motor
Product Description

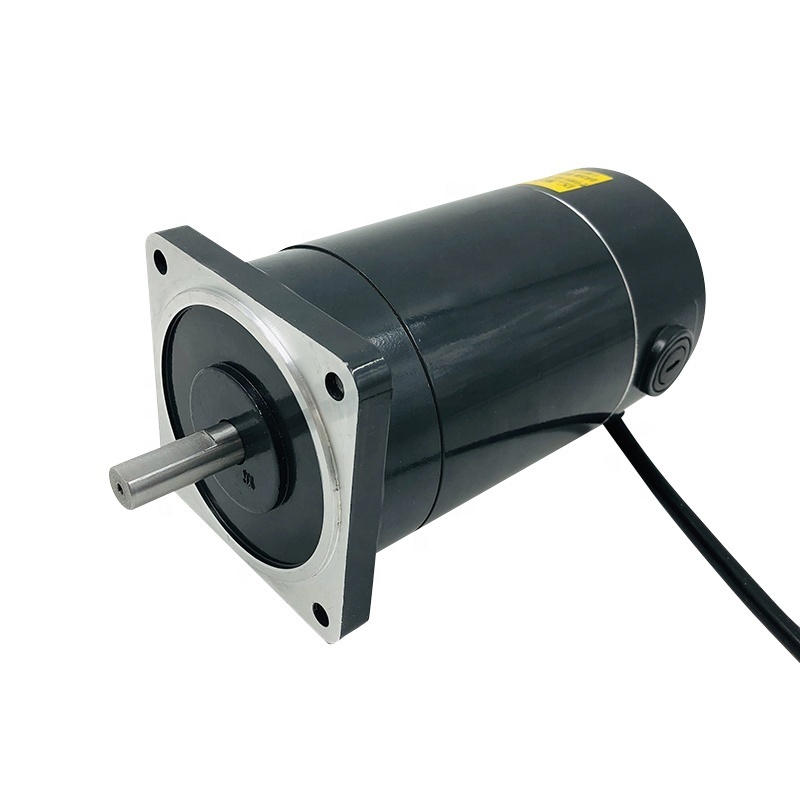

1. Pictures of ZYT114:
3. Specifications of ZYT114 :
|
Part Number
|
ZYT114
|
|
|
|
|||
|
Dimension
|
114mm*Lmm
|
|
|
|
|||
|
Voltage
|
DC Input12v,24v,36v,48v,220v
(Can be Customized)
|
|
|
|
|||
|
Power
|
400w,450w,500w,600w,700w
(Can be Customized)
|
|
|
|
|||
|
Speed
|
Variable speed from 1000rpm to 3000rpm
(Can be Customized)
|
|
|
|
|||
|
Torque
|
2.4-3.86N.m
(Can be Customized)
|
|
|
|
|||
|
Shaft
|
shaft Dia: 16mm
shaft material: 40Cr /Carbon Steel /Stainless Steel Shaft type: Bare /D-Cut /Double D-Cut /Pin Hole /Keyway shaft (Can be Customized) |
|
|
|
|||
|
Bearing At Output
|
Ball bearing / Sleeve bearing
|
|
|
|
|||
|
Accessories
|
Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan, etc
(Optional)
|
|
|
|
|||
|
Weight
|
6.82 to 8.2Kg
|
|
|
|
|||
|
Note
|
Motor specs such as voltage, speed, torque, the shaft can be customized. Please contact us if didn't find a suitable motor from
our specifications. |
|
|
|
|||
Note : It's just the typical technical data for you reference, The specification such as voltage, speed, torque, shaft can customized.
