* High quality imaging with 8 MP resolution
* One image that presents all the scenes covered by the camera
* 24/7 colorful imaging
* Efficient H.265+ compression technology
* Clear imaging against strong back light due to 130 dB WDR technology
* Focus on human and vehicle classification based on deep learning
* Active strobe light and audio alarm to warn intruders off
* Water and dust resistant (IP67)
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
hk
-
Model Number:
-
DS-2CD2387G2P-LSU/SL
-
Style:
-
turret camera
-
Video Compression Format:
-
H.265+
-
Resolution:
-
8mp
-
Support:
-
Smart Phone APP Remote View
-
Light range:
-
30 Meter
-
Waterproof:
-
IP 67
-
Feature:
-
active strobe light and audible warning
-
WDR:
-
130 DB
-
Keyword:
-
panoramic colorvu
-
Lens:
-
2.8mm
-
Technology:
-
acusense
Quick Details
-
Special Features:
-
NIGHT VISION, Motion Detection, Waterproof / Weatherproof, One-way Audio, IP 67, h.265+, human and vehicle detection, 130db wdr, active strobe light and audible warning, Colorful
-
Function:
-
RESET, Built-in Mic, Waterproof / Weatherproof, Wide Angle, h.265+, acusense, colorvu, panoramic, active strobe light and audible warning
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
hk
-
Model Number:
-
DS-2CD2387G2P-LSU/SL
-
Style:
-
turret camera
-
Video Compression Format:
-
H.265+
-
Resolution:
-
8mp
-
Support:
-
Smart Phone APP Remote View
-
Light range:
-
30 Meter
-
Waterproof:
-
IP 67
-
Feature:
-
active strobe light and audible warning
-
WDR:
-
130 DB
-
Keyword:
-
panoramic colorvu
-
Lens:
-
2.8mm
-
Technology:
-
acusense
|
Difference/Same Between Hk Origianl & OEM
|
|
|
||
|
Options
|
Hk
|
OEM
|
||
|
Manufacturer
|
Hk Original
|
|
||
|
LOGO
|
Hk Original
|
Your Owm LOGO
|
||
|
Function
|
All of the Function Same
|
|
||
|
Software
|
The Same APP & Software
|
|
||
|
Accessories
|
All of the Accessories are Same as Hik Original
|
|
||
Product Overview
HK

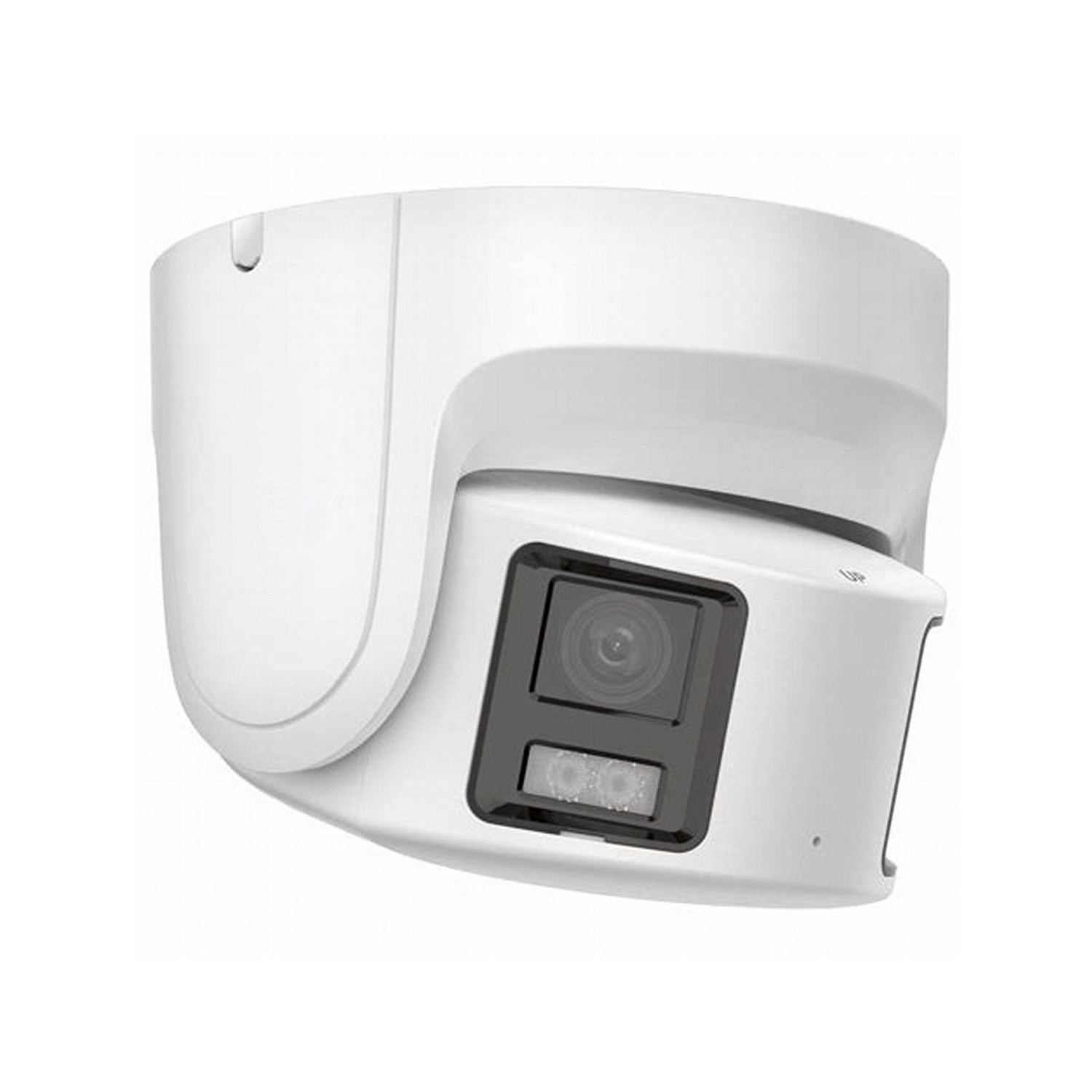

8 MP Panoramic ColorVu Fixed Turret Network Camera
Super HD 4k High Resolution
4k high resolution, much clearer than 5mp. All cameras provide incredibly bright and in real color, which enables you to see all objects very clearly.
WDR
The most innovative image enhancement technologies - 120 dB true WDR， ensure the camera captures upscale footages in all challenging light conditions.
Applied To Multiple Occasions
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Products specs
|
Camera
|
|
|
|
|||
|
Image Sensor
|
2 × 1/1.8" Progressive Scan CMOS
|
|
|
|||
|
Max. Resolution
|
5120 × 1440
|
|
|
|||
|
Min. Illumination
|
Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
|
|
|
|||
|
Shutter Time
|
1/3 s to 1/100, 000 s
|
|
|
|||
|
Angle Adjustment
|
Pan: -30° to 30°, tilt: -75° to 75°
|
|
|
|||
|
Lens
|
|
|
|
|||
|
Lens Type
|
Fixed focal lens, Dual lens: 4 mm
|
|
|
|||
|
Focal Length & FOV
|
Horizontal FOV: 180° ± 10°
Vertical FOV: 44° |
|
|
|||
|
Lens Mount
|
M16
|
|
|
|||
|
Iris Type
|
Fixed
|
|
|
|||
|
Aperture
|
F1.0
|
|
|
|||
|
Depth of Field
|
3.6 m to ∞
|
|
|
|||
|
DORI
|
|
|
|
|||
|
DORI
|
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
|
|
|
|||
|
Illuminator
|
|
|
|
|||
|
Supplement Light Type
|
White Light
|
|
|
|||
|
Supplement Light Range
|
Up to 30 m
|
|
|
|||
|
Smart Supplement Light
|
Yes
|
|
|
|||
|
Video
|
|
|
|
|||
|
Main Stream
|
When WDR is On:
50 Hz: 12.5 fps (5120 × 1440) 60 Hz: 15 fps (5120 × 1440) When WDR is Off: 50 Hz: 20 fps (5120 × 1440) 60 Hz: 20 fps (5120 × 1440) |
|
|
|||
|
Sub-Stream
|
When WDR is On:
50 Hz: 12.5 fps (1920 × 536, 960 × 272) 60 Hz: 15 fps (1920 × 536, 960 × 272) When WDR is Off: 50 Hz: 20 fps (1920 × 536, 960 × 272) 60 Hz: 20 fps (1920 × 536, 960 × 272) |
|
|
|||
|
Video Compression
|
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG |
|
|
|||
|
Video Bit Rate
|
32 Kbps to 16 Mbps
|
|
|
|||
|
H.264 Type
|
Baseline Profile, Main Profile, High Profile
|
|
|
|||
|
H.265 Type
|
Main Profile
|
|
|
|||
|
Bit Rate Control
|
CBR, VBR
|
|
|
|||
|
Scalable Video Coding (SVC)
|
H.264 and H.265 encoding
|
|
|
|||
|
Region of Interest (ROI)
|
1 fixed region(s) for main stream
|
|
|
|||
|
Audio
|
|
|
|
|||
|
Audio Type
|
Mono sound
|
|
|
|||
|
Audio Compression
|
G.711/G.722. 1/G.726/MP2L2/PCM/MP3/AAC-LC
|
|
|
|||
|
Audio Bit Rate
|
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722. 1)/16 Kbps (G.726)/32 to 192 Kbps
(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
|
|
|||
|
Audio Sampling Rate
|
8 kHz/16 kHz/32 kHz/44. 1 kHz/48 kHz
|
|
|
|||
|
Environment Noise Filtering
|
Yes
|
|
|
|||
|
Network
|
|
|
|
|||
|
Protocols
|
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802. 1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
|
|
|||
|
Simultaneous Live View
|
Up to 6 channels
|
|
|
|||
|
API
|
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
|
|
|
|||
|
User/Host
|
Up to 32 users
3 user levels: administrator, operator, and user |
|
|
|||
|
Security
|
Password protection, complicated password, HTTPS encryption, 802. 1X authentication
(EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) |
|
|
|||
|
Network Storage
|
NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), NVR,
Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
|
|
|||
|
Client
|
iVMS-4200, Hik-Connect, Hik-Central
|
|
|
|||
|
Web Browser
|
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
|
|
|||
|
|
|
|
|
|||
|
Image Parameters Switch
|
Yes
|
|
|
|||
|
Image Settings
|
saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client
software or web browser |
|
|
|||
|
Day/Night Switch
|
Day, Night, Auto, Schedule
|
|
|
|||
|
Wide Dynamic Range (WDR)
|
130 dB
|
|
|
|||
|
SNR
|
≥ 52 dB
|
|
|
|||
|
Image Enhancement
|
BLC, HLC, 3D DNR
|
|
|
|||
|
Interface
|
|
|
|
|||
|
Ethernet Interface
|
1 RJ45 10 M/100 M self-adaptive Ethernet port
|
|
|
|||
|
On-Board Storage
|
Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 512
GB |
|
|
|||
|
Built-in Microphone
|
Yes
|
|
|
|||
|
Built-in Speaker
|
Max. power consumption: 1.2 W, max. sound pressure: 10 cm: 95 dB
|
|
|
|||
|
Audio
|
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7
KΩ, interface type: non-equilibrium, 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
|
|
|||
|
Alarm
|
1 input, 1 output (max. 24 VDC, 1 A)
|
|
|
|||
|
Reset Key
|
Yes
|
|
|
|||
|
Event
|
|
|
|
|||
|
Basic Event
|
Motion detection (support alarm triggering by specified target types (human and
vehicle)), alarm input and output, flashing alarm light output, audible alarm output, exception |
|
|
|||
|
Smart Event
|
Line crossing detection, intrusion detection, region entrance detection, region exiting
detection (support alarm triggered by specified target types (human and vehicle)), scene change detection |
|
|
|||
|
Linkage
|
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm
output, trigger recording, trigger capture, audible warning, white light flashing |
|
|
|||
|
Deep Learning Function
|
|
|
|
|||
|
Perimeter Protection
|
Line crossing, intrusion, region entrance, region exiting (support alarm triggering by
specified target types (human and vehicle)) |
|
|
|||
|
General
|
|
|
|
|||
|
Power
|
12 VDC ± 25%, 0.79 A, max. 9.5 W, Ø 5.5 mm coaxial power plug,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.29 A to 0.18 A, max. 10.5 W |
|
|
|||
|
Material
|
Base: metal, cover: metal
|
|
|
|||
|
Dimension
|
Ø155 mm × 155.3 mm (Ø 6. 1" × 6. 1")
|
|
|
|||
|
Package Dimension
|
230 mm × 230 mm × 230 mm (9" × 9" × 9")
|
|
|
|||
|
Weight
|
Approx. 1110 g (2.4 lb.)
|
|
|
|||
|
With Package Weight
|
Approx. 1900 g (4.2 lb.)
|
|
|
|||
|
Storage Conditions
|
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
|
|
|
|||
|
Startup and Operating
Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
|
|
|
|||
|
Language
|
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
|
|
|||
|
General Function
|
Anti-flicker, heartbeat, password reset via email, password protection, one-key reset
|
|
|
|||
|
Flashing Light
|
Yes
|
|
|
|||
|
Approval
|
|
|
|
|||
|
EMC
|
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 |
|
|
|||
|
Safety
|
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368- 1: 2014/A11: 2017 |
|
|
|||
|
Environment
|
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
|
|
|||
|
Protection
|
IP67: IEC 60529-2013
|
|
|
|||
