Quick Details
-
Power:
-
2.2 KW
-
Weight:
-
150 KG
-
Dimension(L*W*H):
-
850*720*1450mm
-
Marketing Type:
-
Hot Product
-
Core Components:
-
Other
-
material:
-
stainless steel
Quick Details
-
Place of Origin:
-
China
-
Production Capacity:
-
50kg/hour
-
Voltage:
-
220V
-
Power:
-
2.2 KW
-
Weight:
-
150 KG
-
Dimension(L*W*H):
-
850*720*1450mm
-
Marketing Type:
-
Hot Product
-
Core Components:
-
Other
-
material:
-
stainless steel

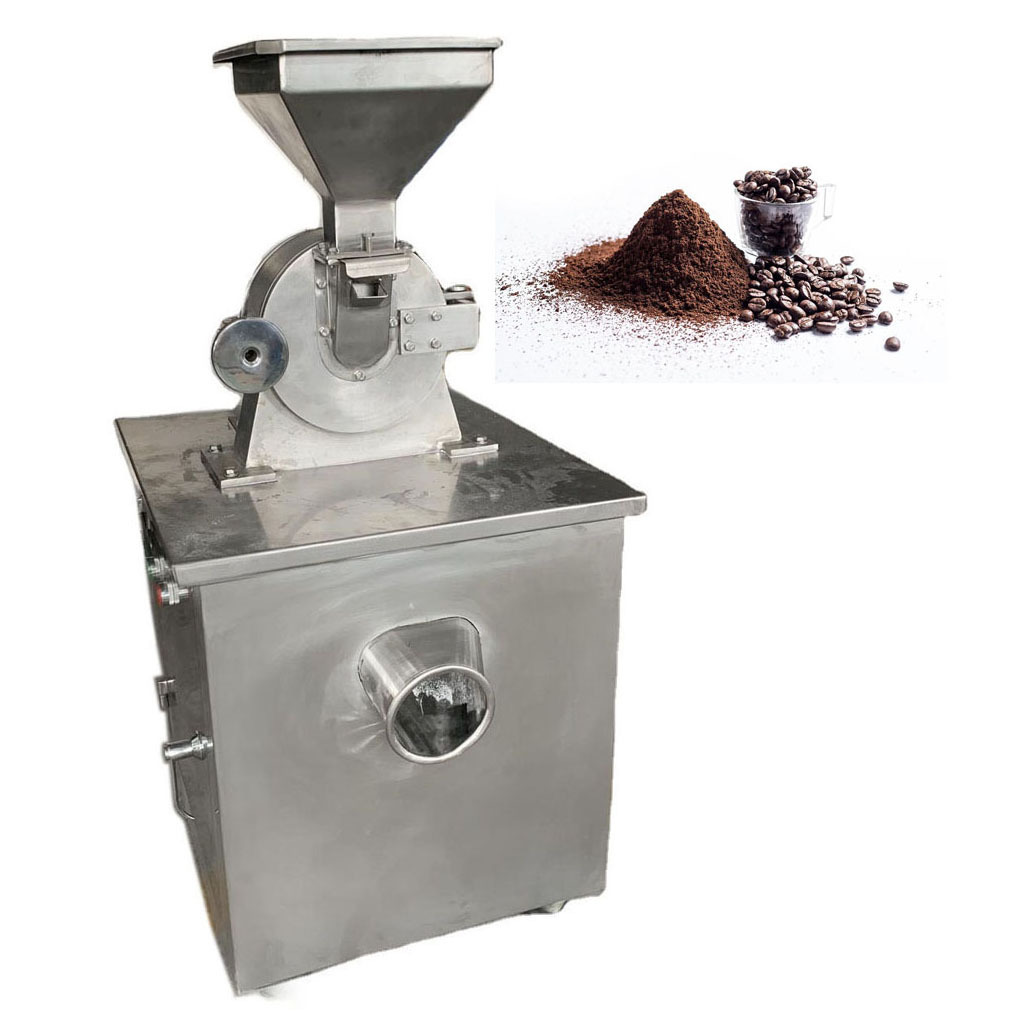

Product Description
The machine is suitable for medicine, chemical industry, food, agriculture, grain and other industries, especially for crushing dry brittle materials. It is widely used.
Working principle
The machine uses the relative movement between the movable toothed disc and the fixed toothed disc running at high speed to make the crushed materials through the comprehensive effects of tooth impact, shear and friction and the collision between materials to achieve the purpose of crushing materials. The machine has the advantages of simple structure, stable operation, low noise and good crushing effect. The crushed materials are discharged directly from the crushing chamber. The particle size can be achieved by selecting screens with different pore sizes.
|
Item No.
|
HJ-CM023
|
|
Function
|
grinding raw materials into powder
|
|
Power/V
|
2.2kw/220V, three phase or 380V
|
|
Size
|
850*720*1450mm
|
|
Weight
|
150kg
|
|
Yield
|
20-50kg/h
|
|
Machine Material
|
304 stainless steel
|
Names of main parts
1. Fixed toothed disc: fixed on the door, with large fixed toothed disc.
2. Movable toothed disc: there are beating teeth, main crushing teeth and crushing teeth.
3. Screen: select the screen suitable for aperture according to the requirements of particle
size (mesh) of finished products.
size (mesh) of finished products.
4. Switch and rotation direction: Green - power on, red - power off. The rotation direction of the motor is shown by the arrow marked on the machine (reverse rotation is strictly prohibited).
Installation, operation and maintenance
1. Before starting the machine, check whether the door is closed tightly. When closing the door, tighten the hand wheel and positioning bolt.
Installation, operation and maintenance
1. Before starting the machine, check whether the door is closed tightly. When closing the door, tighten the hand wheel and positioning bolt.
2. Connect the water cooling device to ensure sufficient water source. It is strictly prohibited to cut off water during operation.
3. During installation, turn on the power supply and electrically check whether the rotation direction of the motor is in the direction of the marked arrow. If not, adjust the motor junction box wiring.
4. When the rotation direction of the motor is correct, start up and idle for 30 minutes, check the lubrication and add lubricating grease in time. Regularly check and replenish lubricating grease.
5. Rotate air for several minutes before feeding, and then feed slowly and evenly. Do not fill the hopper, and pay attention to whether the current is overloaded to prevent damage to the equipment.
6. In case of huge vibration, noise and other adverse conditions during operation, shut down the machine in time for inspection.
7. Always keep the parts lubricated and clean, and repair or replace them in time in case of faults and defects.
Packing & Delivery
Plywood
