Quick Details
-
Brand Name:
-
Darhor
-
keyword:
-

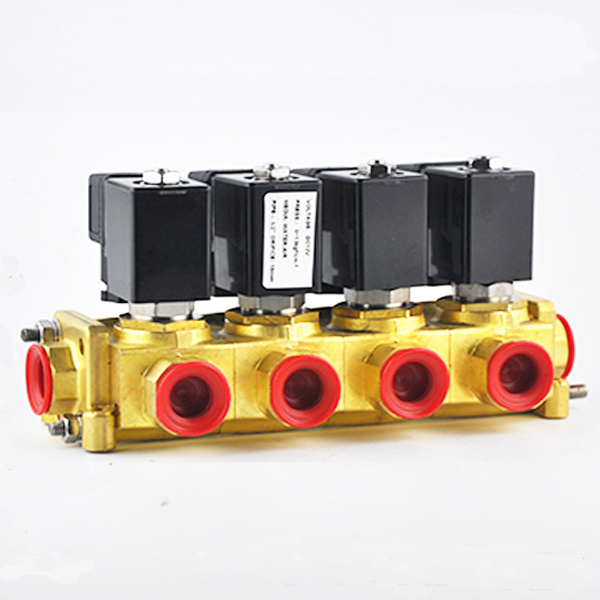

Manifolds solenoid valve
-
Standard or Nonstandard:
-
Standard
-
Certifications:
-
CE, ROHS, ISO, TUV
-
Port thread:
-
G, BSP, NPT
-
Orifice:
-
10mm
-
Quality warranty:
-
one year
-
Sample leadtime:
-
5~7 days
-
Order leadtime:
-
7~10 days
-
Seal:
-
NBR, EPDM, FKM
-
Medium:
-
Water Oil Gas Air
Quick Details
-
Port Size:
-
Inlet 1/2", outlets 1/4", 3/8" or 1/2"
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
DHE31
-
Brand Name:
-
Darhor
-
keyword:
-
Manifolds solenoid valve
-
Standard or Nonstandard:
-
Standard
-
Certifications:
-
CE, ROHS, ISO, TUV
-
Port thread:
-
G, BSP, NPT
-
Orifice:
-
10mm
-
Quality warranty:
-
one year
-
Sample leadtime:
-
5~7 days
-
Order leadtime:
-
7~10 days
-
Seal:
-
NBR, EPDM, FKM
-
Medium:
-
Water Oil Gas Air
Characteristic:
2.Long lifespan ,more than 1 million cycles.
Material:
Body-Brass, Stainless Steel
Seal- FKM, EPDM, PTFE
Armature Tube-Stainless Steel 304
Plunger- Stainless Steel 430F
Stop- Stainless Steel 430F
Springs- SS304
Shading Rings- SS304
|
Medium:
|
Water, Liquid, air, gas, oil≤20CST
|
|
Temperature:
|
VITON Seal: -30℃ to 150℃ NBR Seal: -10℃ to 80℃ EPDM Seal: -10℃ to 120℃
|
|
Pressure:
|
0-1.3 MPa
|
|
Port Size:
|
1/8" 1/4" 3/8" 1/2"
|
|
Port Thread:
|
G, BSP, NPT, Flange
|
|
Orifice(mm):
|
2, 3, 4, 5, 6, 9, 10
|
|
Voltage:
|
DC - 12V,24V AC - 24V,120V,240V/60Hz;110V,220V/50Hz
|
|
Coils:
|
SA11B ,9VA(AC),8W(DC),IP65,100%ED.
|
|
Explosion proof structure:
|
Flameproof(ExdIIBT4) Encapsulation type(ExmbI/IIBT4)
|
|
Environmental temperature:
|
-10℃~ 50℃ Relative humidity≤85%
|
Each Darhor Valve pass 10 testings to ensure high quality!
Valve testing: Coil testing:
high pressure test low pressure test
leak detection water hammer test lifecycle test
resistance test current test
power test temperature test noise test
Shockproof Bag to protect valve
Strong Cartons
1.English neutral packaging
2.with Darhor logo
3.with your logo (Charged)
membrane outside protect rain
Package more than 40kgs,use
Fumigated wooden case or pallet.
We will compensate to the damage!pls contact within 3 days when you receive.
