Quick Details
-
Brand Name:
-
Arcreat
-
Power Supply:
-
DC 10-24V
-
Material:
-
Zinc alloy
-
Card Type:
-
IC card
-
Waterproof:
-
IP67
-
Wiegand format:
-
26-37
-
Mobile NFC:
-
Support
-
NFC tag:
-
Support
-
Doorbell button:
-
support
-
Operating Temperature:
-
-40~70℃
-
Dimension:
-
129*44*20mm
Quick Details
-
Frequency:
-
13.56Mhz
-
Protocol:
-
ISO 14443A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Arcreat
-
Power Supply:
-
DC 10-24V
-
Material:
-
Zinc alloy
-
Card Type:
-
IC card
-
Waterproof:
-
IP67
-
Wiegand format:
-
26-37
-
Mobile NFC:
-
Support
-
NFC tag:
-
Support
-
Doorbell button:
-
support
-
Operating Temperature:
-
-40~70℃
-
Dimension:
-
129*44*20mm

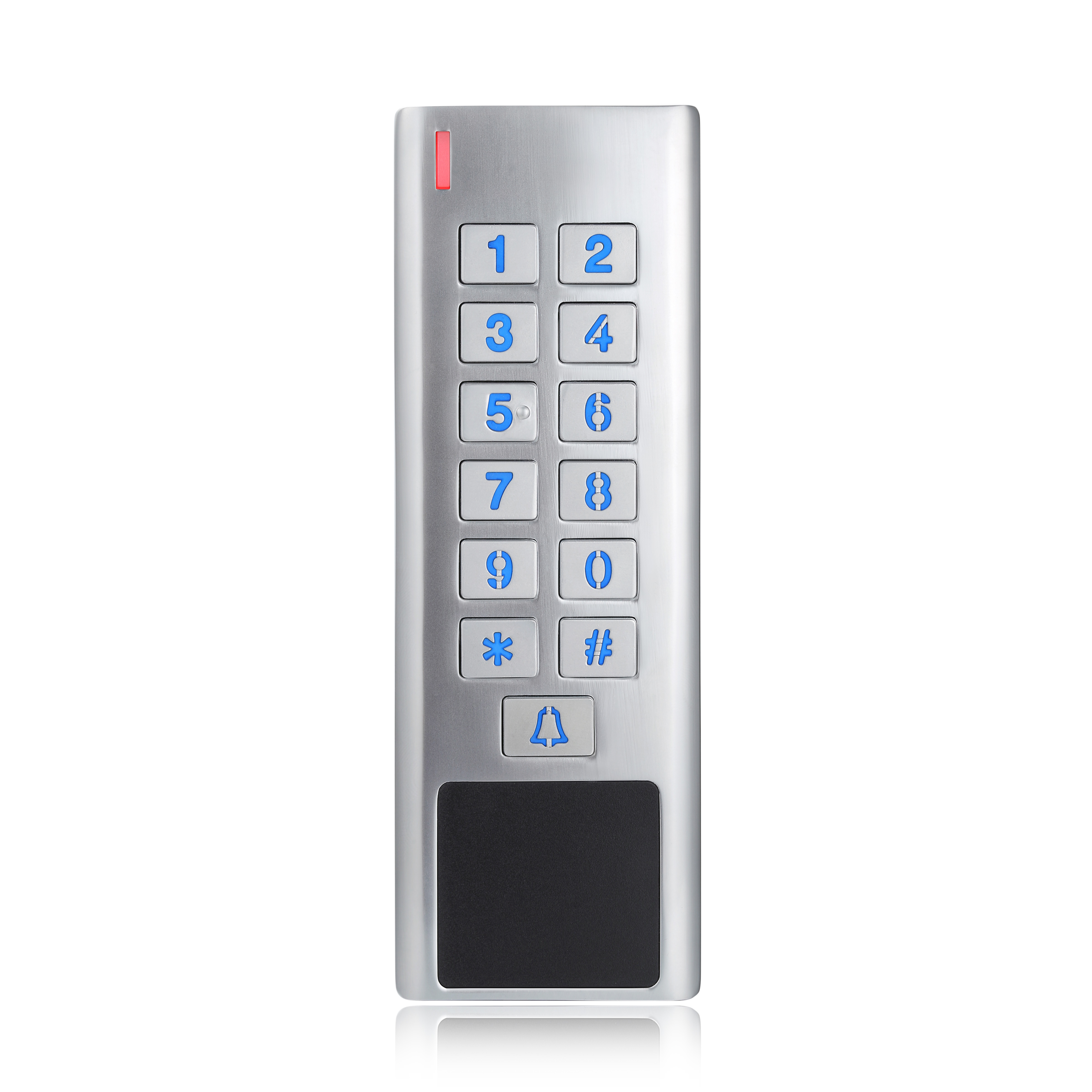

Waterproof IP67 13.56mhz IC card NFC reader wiegand 26 37 RFID keypad access control reader
Overviews
This metal waterproof PIN/Proximity card reader designed for most access control controllers.
Metal structure and backlit key.Anti-explosion and attractive.Specialy suit for the government,
enterprise,bank,smart building,jail,campus etc.
Key feature
♦ The factory default is Wiegand 26.And other Wiegand format 27~42 can be customized
♦ Support 4 bit and 8 bit key output.The factory default is 4 bit. 8 bit can be customized
♦ Virtual card No. output can be customized
♦ Support EM card 125Khz/Mifare card 13.56Mhz ( UID 4 bytes ,7 bytes , Plus )
♦ Support green light LED control and buzzer control
♦ Easy installation and operaion
Specification
| Input voltage | Wide range DC10-24V |
| Working Current | ≤50mA |
| Wiegand | 26~37 |
| Proximity Card | EM card or IC card |
| Waterproof | IP67 |
| Operating Temperature | -40~70℃ |
| Operating Humidity | 10%-98% |
| Dimension | 129×44×20mm |
