Quick Details
-
Application:
-
Plaster Spraying Construction
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
wanshan
-
Dimension(L*W*H):
-
1230*720*1550mm
-
Weight:
-
260 kg
-
Power:
-
8kw
-
Product name:
-
Gypsum spray machine
-
Applicable materials:
-
Gypsum, putty Powder,concrete mud,cement,ect
-
Voltage:
-
220v/380 or customized
-
Function:
-
Mortar Plastering Machine
-
Usage:
-
Spray Wall Ceiling Machine
-
Pump Type:
-
Hydraulic
-
Raw material:
-
Fine Sand, Gypsum, putty Powder
-
Motor:
-
Pure copper motor
-
Appliaction:
-
Building Constrcution
-
Hopper Volume:
-
3.6L (0.77 Gallon)
Quick Details
-
Max. vertical conveying distance:
-
60M
-
Max. horizontal conveying distance:
-
100M
-
Hopper Capacity:
-
115
-
Application:
-
Plaster Spraying Construction
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
wanshan
-
Dimension(L*W*H):
-
1230*720*1550mm
-
Weight:
-
260 kg
-
Power:
-
8kw
-
Product name:
-
Gypsum spray machine
-
Applicable materials:
-
Gypsum, putty Powder,concrete mud,cement,ect
-
Voltage:
-
220v/380 or customized
-
Function:
-
Mortar Plastering Machine
-
Usage:
-
Spray Wall Ceiling Machine
-
Pump Type:
-
Hydraulic
-
Raw material:
-
Fine Sand, Gypsum, putty Powder
-
Motor:
-
Pure copper motor
-
Appliaction:
-
Building Constrcution
-
Hopper Volume:
-
3.6L (0.77 Gallon)
Product Description

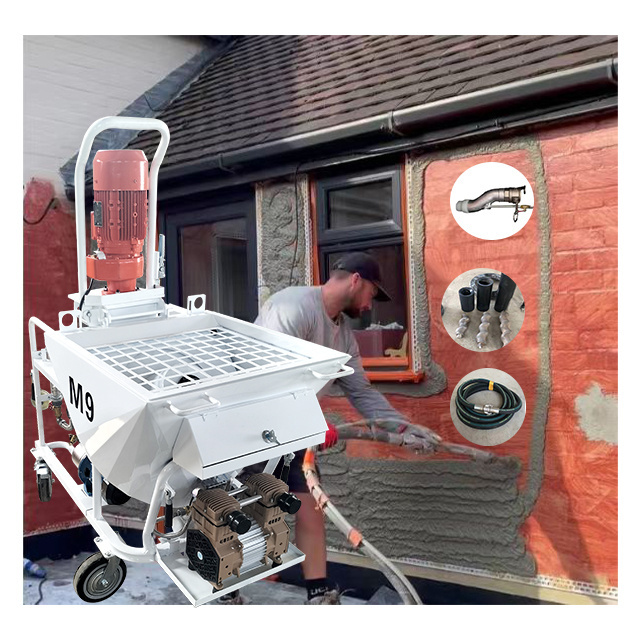

Gypsum Spraying Machine
The automatic gypsum spray plaster machine integrates the functions of feeding, mixing, pumping, and spraying , and is suitable for the construction of various ready-mixed dry-mixed mortars with different characteristics and uses, such as lime-based, gypsum-based, and cement-based plaster, masonry Construction mortar, thermal insulation mortar, repair and bonding mortar, self-leveling mortar, etc.
Structure
| Model | UR-M9 |
| Dimensions | 1230×720×1550mm |
| Total weight | 220kg |
| Power | 380v/50hz or customized |
| Throughput | 30L/min |
| Standard pumping pressure | 50bar |
| Main motor power | 5.5kw |
| Air compressor power | 1.5k w |
| Horizontal conveying distance | 30m |
| Vertical conveying distance | 20m |
| Maximum particle size | 3mm |
| Hopper capacity | 115L |
| Hopper height | 90cm |
Product Details
Product Display
