Weld Tank Circular Seam Welding Machines
Weld Tank Circular Seam Welding Machines
Weld Tank Circular Seam Welding Machines
Weld Tank Circular Seam Welding Machines
Weld Tank Circular Seam Welding Machines
Weld Tank Circular Seam Welding Machines
Weld Tank Circular Seam Welding Machines
Weld Tank Circular Seam Welding Machines

Weld Tank Circular Seam Welding Machines

FOB Reference Price: Get Latest Price
≥1 Sets
US $6000
≥10 Sets
US $1900
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Welding Mode:
TIG MIG
Welding Diameter:
/
Dimensions:
370*140*300mm
Use:
Welding
Voltage:
220v
Weight (KG):
600 KG
Power (kW):
11
Product name:
Circular Seam Welding Machine
Color:
Blue
Key word:
Seam Welder
After Warranty Service:
Video technical support

Quick Details

Place of Origin:
Shandong, China
Brand Name:
KASRY
Forming Time:
/
Welding Mode:
TIG MIG
Welding Diameter:
/
Dimensions:
370*140*300mm
Use:
Welding
Voltage:
220v
Weight (KG):
600 KG
Power (kW):
11
Product name:
Circular Seam Welding Machine
Color:
Blue
Key word:
Seam Welder
After Warranty Service:
Video technical support
Product Description

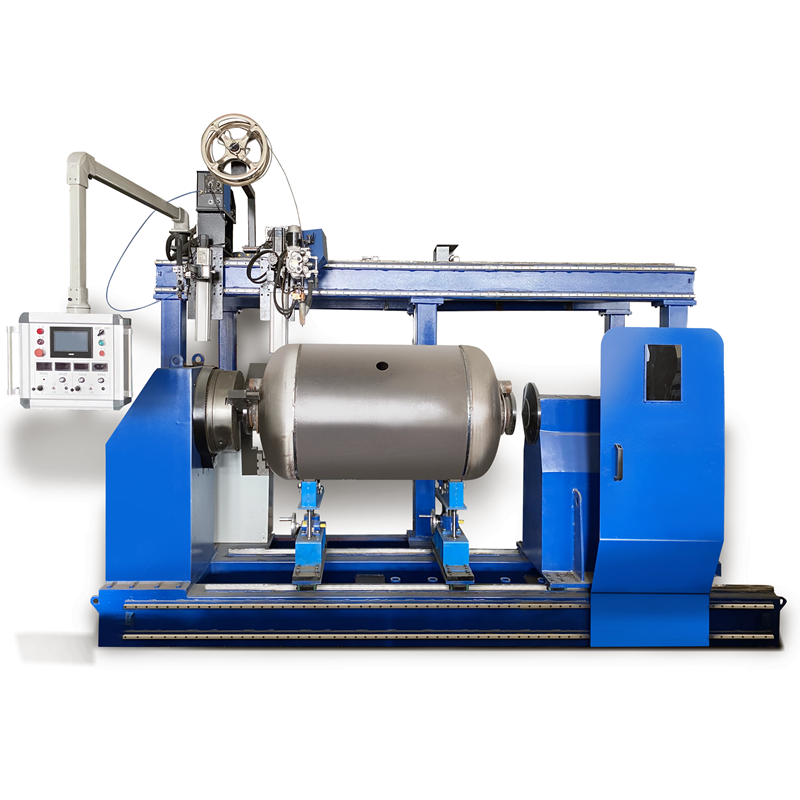

Weld Tank Circular Seam Welding Machines
kasry seam-welding machine adopts three-phase inverter driving, welding speed is uniform, convenient adjustment, stable.Longitudinal sewing machine have painted the welding and welding two forms kasry seam-welding machine is widely applied in hardware, electrical appliances, automobiles, tank and other manufacturing industries, the most suitable for welding low carbon steel, stainless steel bowl, barrel, and sealed containers of thin-walled box.
Advantage of turn over  machine
1.Welding torch is fixed while work piece rotating, welding position is horizontal. One end of work piece is jigged by power head
and rotates
2.Two welding torches and two power sources work simultaneously to improve work efficiency.
3.Torch, spindle box and tailstock can be adjusted longitudinally to fit various kinds of welding.
4.Japan Omron PLC is adopted to control the machine to run and speed is adjusted by AC servo, which can improve the reliability of
the equipment.
5.Adopts end face positioning and pneumatically clamping mode.
6.Adopts human-machine interface to alter the parameters. The welding time and weld length can be set via this interface. The
alteration of the parameters can be input through the touch button conveniently and timely. Parameters can be stored and called.

  • Welding Power Source

Mainly used in welding hydraulic cylinder circular seam automatically. To guarantee the welding specification is even and uniform, welding seam has good and uniform appearance. It is convenient and reliable to use and the welding quality meets to the requirement.
Detailed Images
Applicable diameter
200mm-800mm
Applicable length
2000mm
Material
stainless steel, canbon steel
Thickness
1mm-3mm
Rotation speed
0.2-2rpm
Motor power
0.55KW
Welding torch moving range in left-right direction
100mm
Welding torch lifting range
100mm
welding torch moving range in front-rear direction
50mm
Diameter of solid wire
1.0mm & 1.2mm
Size Information
Technical parameter
Item
Name
Specifications
Unit
Note
1
Machine dimensions
2730*330*1300
mm
User customized
2
Motor power
2.2*2
Kw

3
Eccentricity
200
mm

4
Power source
380
V

5
Lifting strap length
8m*2
m/piece
Customized
6
Insurance factor
1.2
times

7
Remote control battery
7#*2
pieces

8
Flip angle
360°
degree

9
Welding chain
D14X42


10
The minimum breaking force
254
KN

Sample
Related Products
Packing&Shipping
After Sales Service
1. We will offer some of the parts for free in the first year. The buyer needs to pay for the shipping cost for the parts. The
user needs to send us pictures of the broken one, then we will send out the part they need. The whole machine we offer 1 year guarantee time free, without consumable parts replacement and man-made fault.
2. In the first year, if the buyer needs our engineers to come to the local to fix some problems of the machine that they cannot
fix by themselves; we will send our engineers for free. The buyer needs to pay the flights, housing and meals for the engineers in the local.
Company Introduction
KASRY - piping total solution provider, professional manufacture quality pipe cutting machines, cnc cutting machines, square tube profile cutting machines, H beam cutting robot with oxy-fuel plasma cutting, mainly for industrial steel structure construction ,oil&gas pipeline engineering, marine engineering,offshore buildings,process plants,petrochemical industry,power plant. we insisting on creative and quality in pipe cutting. Guarantee our user fast service.

Our Services & Strength

1. Professionaloptimize CNC system has , AutoCAD version of the project design can be directly generated CNC machine code . Dimensional simulation operation, the node is expanded , long tube splitting , fittings optimization , oversized EGES DXF SAT and STL and other software compatibility
2 A userfriendly design , casting parts precision machining equipment to ensure highprecision, high stability , high life
expectancy .
3. One year warranty,free maintenance throughout service time.
4.We also provide the machine parts selling .
FAQ
Q1. Could you give me a brief company introduction.
A: Company is engaged in the plasma cutting production and welding products for many years. With advanced production
equipment,strong technical force, complete quality management system,focus on Gantry type plasma cutting machine, the product "KASRY" is deeply general consumers' trust. The key components of " KASRY" is adopted imported by the top brand, passing CCC, CE,GS, ROHS certification requirements, high reliability.

Q2. Is it OK to design the package by myself?
A: Yes. You can design the artworks by yourself.

Q3: What kind of payment term support?
A: T/T, L/C,Western Union, etc.

Q4: Where is your factory? Can we make a visit?
A: Our factory located in Jinan, Shandong. Our nearest air port is Jinan TNA .
You also can take high-speed rail to Jinan West Railway Station.
Warmly welcome to visit our factory. You'll know our factory clear and better for our cooperation.
