Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
allison
-
Model Number:
-
MZ73214
-
Dimension(L*W*H):
-
3600*2500*1620mm
-
Power (kW):
-
6kw
-
Weight (KG):
-
1500 KG
-
Max. drilling depth:
-
60mm
-
Total number of spindles:
-
4
-
Machining hole spacing:
-
140-2450mm
-
Spindle Speed:
-
2800r\min
-
Working pressure:
-
0.6-0.8mpa
-
Total Power:
-
6kw
-
Overall dimension:
-
3600*2500*1600mm
-
Machine Weight:
-
1500kg
Quick Details
-
type:
-
Drilling & Milling Machine
-
Max. Drilling Dia. (mm):
-
35mm
-
Range of Spindle Speed(r.p.m):
-
2799 - 2800 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
allison
-
Model Number:
-
MZ73214
-
Dimension(L*W*H):
-
3600*2500*1620mm
-
Power (kW):
-
6kw
-
Weight (KG):
-
1500 KG
-
Max. drilling depth:
-
60mm
-
Total number of spindles:
-
4
-
Machining hole spacing:
-
140-2450mm
-
Spindle Speed:
-
2800r\min
-
Working pressure:
-
0.6-0.8mpa
-
Total Power:
-
6kw
-
Overall dimension:
-
3600*2500*1600mm
-
Machine Weight:
-
1500kg
Product Overview
FEATURES AT A GLANCE

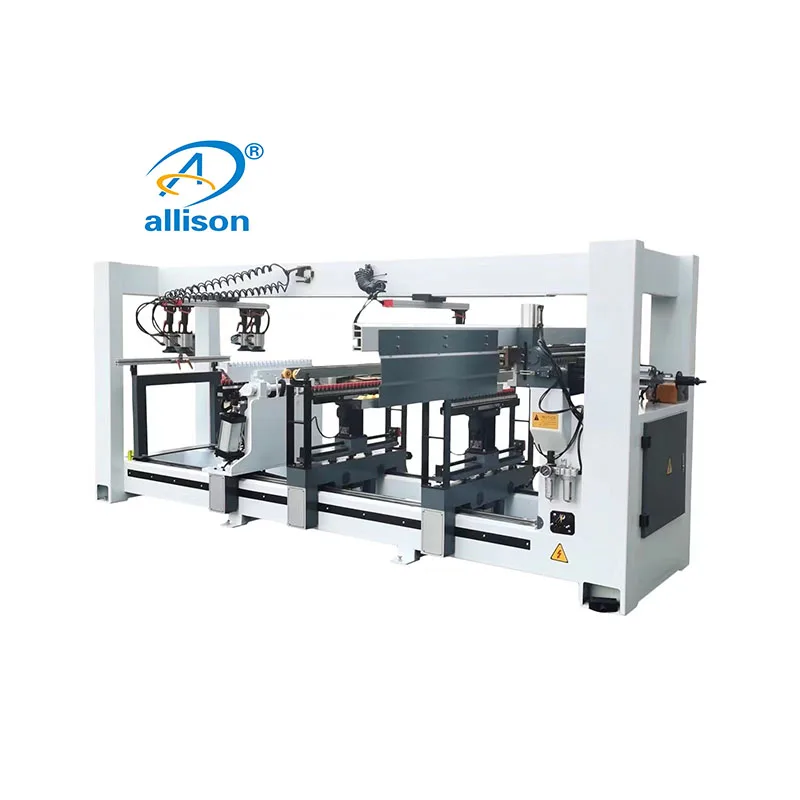

Woodworking 4 Rows Boring Machine For Furniture Vertical Horizontal Drilling
* The machine can be customized including functional color brand model and so on.
*
Operation panel humanized design, simple to understand, easy to operate the adjustment button, can only be a high precision digital display, easy to operate the process.
The machine adopts high precision double linear guide rail and the guide rail is lengthened to ensure the accurate movement of vertical drilling shaft, adjust and increase the drilling range.
Oil pump, lubrication machinery internal run-in parts.
The equipment adopts imported international standard drilling row, with high drilling precision. Drill row adopts quick joint,quick bit replacement.
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Max.working length
|
35mm
|
|
2
|
Maximum borehole depth
|
60mm
|
|
3
|
Total number of shafts drilled
|
21*4
|
|
4
|
Drilling shaft machining hole spacing
|
32-640mm
|
|
5
|
Drill row machining hole spacing
|
140-2450mm
|
|
6
|
speed of mainshaft
|
2800r\min
|
|
7
|
compressed air pressure
|
0.6-0.8mpa
|
|
8
|
Total motor power
|
1.5*4=6kw
|
Application
The row drilling drilling machine is beautiful and generous, novel design, simplified operation and high efficiency production is especially suitable for furniture processing, furniture manufacturing, plate processing, handicraft processing, wood door processing enterprises, woodworking industry in all kinds of plate continuous operation, especially suitable for all kinds of furniture, wardrobe cabinet production enterprises.
