High Speed Liquid Centrifugal Atomizer Spray Drying Spirulina Powder Making Machine Milk Algae Powder Spray Dryer Machine

High Speed Liquid Centrifugal Atomizer Spray Drying Spirulina Powder Making Machine Milk Algae Powder Spray Dryer Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $16800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: Design for different country

Power:: 36KW

Dimension(L*W*H):: 3*2.7*4.26m

Weight (KG):: 2000

After-sales Service Provided:: Engineers available to service machinery overseas

Capacity:: 25kg/h water evaporation

Heating source:: Steam, electricity, gas, oil

Raw material:: Liquid Form Material

Installation:: Engineer's Guidance

Model:: LPG25

Advantage:: Low Consumption High Efficiency

Product name:: Spray Dryer Machine

Quick Details

Type:: Spray Drying Equipment

Place of Origin:: Liaoning, China

Brand Name:: WANDA

Voltage:: Design for different country

Power:: 36KW

Dimension(L*W*H):: 3*2.7*4.26m

Weight (KG):: 2000

After-sales Service Provided:: Engineers available to service machinery overseas

Capacity:: 25kg/h water evaporation

Heating source:: Steam, electricity, gas, oil

Raw material:: Liquid Form Material

Installation:: Engineer's Guidance

Model:: LPG25

Advantage:: Low Consumption High Efficiency

Product name:: Spray Dryer Machine

Product Description

Spray drying process is the widest used in the liquid forming process and in drying industry. The drying technology is most
suitable for powder, particle products from materials, such as,solution, emulsion, SC and pumpable paste states material. For this reason, when the particle size and distribution of the final product, their residual water contents, the stacking density and particle shape must meet the precision standard, spray drying process is one of the most desired processes. .

Products Show

1. High drying speed,atomizer spray, drying evenly, suitable for heat sensitive materials.

2. Drying liquid fluidized materials into powder directly.

3. Convenient maintenance, low noise, long life time.

4. Simple production procedures, easy operation and control.

5. High standard design, food grade certification, CE certification.

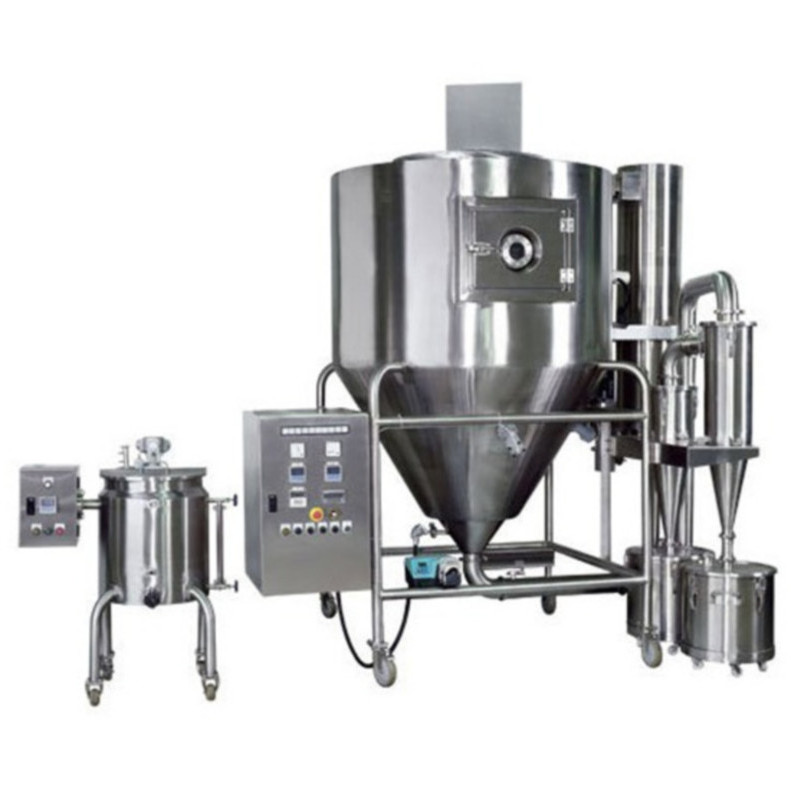

Lab Type(For previous small scale test, the data can be as reference for large scale production)

Larger model for references

LPG25 model

LPG50 model

LPG100 model

Larger model ( Professional technical engineers are available for debugging and installation）

Product Parameters

Working Principle

After filtering and heating, the air enters into air distributor on top of the Drying Equipment. The hot air enters into the
drying tower spiral form and uniformly. By .passing through high-speed centrifugal atomizer on top of tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads. Through the very short time of contacting with heating air, the material can be dried into final products. The final products will be discharged continuously from the bottom of drying tower and from cyclone separator. The waste gas will be discharged from exhaust fan. .

Features

At a high speed of drying, after spraying of the material liquid, the surface area will be increased greatly. In the hot air flow,
95%-98% of water can be evaporated at a moment. The time of completing the drying needs only several seconds.
This is especially suitable for drying the heat sensitive materials. Its final products own good uniformity, mobility, dissolving capacity. And the final products are high in their purity and good in their quality.

The production procedures are simple and the operation and control are easy.The liquid with the moisture contents 40-60% (for special materials, the contents may reach 90%) can be dried into the powder of particle products for one time. After drying, there is no need for crushing and sieving, so as to reduce operation procedures in the production and to enhance product purity. The product particle diameters, looseness and water contents can be adjusted through changing the operation condition in a certain scope. It is very convenient to carry out control and management.

Special Design of WANDA Spray Dryer

1. EU standard

To improve the surface finish of the inner wall so that the material is difficult to adsorb.
2. Specially designed in the process of making

I t is convenient for the user to do antistatic treatment.

3. Design an air hammer in the proper position of the tower body.

Regularly strikes the wall of the tower to reduce absorption. Shrink the cone angle and increase the flow one cone surface.
4.Energy saving design
The main tower is designed as 3 layer structure. The insulation layer is designed between the jacket and the cover, which not only saves energy but also keep the temperature of work scene not too high. Improve the working environment, reduce the energy consumption of the factory's central air-conditioning.
5.Health design
Because the clearance needs in chemical production, especially for changing varieties The cleaning port is designed on the tower and the thicker pipeline, and the hand hole is designed for the easy aggregate part. The connection of each pipe is favorable for disassembly and installation. The whole silicone pad is used for cleaning and replacement.
The feed pipe is made of stainless steel pipe. The material contact pipe is made of stainless steel pipe.
6.Recycling design
The wet dust remover is used in the tail gas treatment, especially designe demister to reduce the loss of water in the process of dust removal, you can use purified water as the circulating water if it is necessary to further reduce the cost of the product, the material return to the concentration process when it is set to a certain concentration, almost no loss of material.

Material advantage

Surface abrasion resistance and friction resistance.

Welding technology
The inner surface of the equipment should be clean, smooth and easy to clean.
The welding part of the equipment is full welding.
Acid cleaning, polishing treatment after welding

External surface wiredrawing and polishing.

The outer surface is washable.
Outer surface is smooth, no concave and convex, no scratches.

Hot air distributor

Specially designed for hot air distributor, the wind is reasonable divided.

Atomization system（optional）

Advantage：Low failure rate, stable performance
disadvantage：Improper use will leak oil and affect the material.

Electric atomizer（optional）

Advantages: it is applicable to materials with high cleanliness requirements, small size of equipment
Disadvantages: improper use of the bearing part can be damaged, and the damage needs to be returned to the factory for maintenance.

Product Packaging

Our Company

LIAOYANG WANDA MACHINERY CO.,LTD is specialized in design, development, manufacture and sale of industrial, chemical drying machines. Our Equipment includes spray dryer, fluid bed dryer, belt dryer, flash dryer, paddle dryer, rotary dryer, vacuum oven dryer, vacuum paddle dryer , hot air circulation oven dryer and so on.

Wanda Machinery not only has a group of capable engineers and senior management personnel with more than ten years of work experience, but also has a group of excellent production personnel. They have excellent capabilities in research, design, service, etc. Over the years, they have devoted themselves to researching and summing up in practice. "Pragmatism, innovation, integrity, pursuit of excellence", a deep understanding is a strong guarantee for the quality of customers' products!

Looking to the future with a commitment to design innovation and quality products, supported by an outstanding level of customer service. The excellent quality machinery can be easily obtained from us because we maintain the quality and standard of our products from incoming raw materials to the finished products.

Our Service

1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2. Make different plans for choice according to the needs and requirements of customers.
3. Help customers solve any other questions about products or other aspect;
4. We will provide one-year warranty period to make sure your machine runs consistently.

5.keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
6. Consultant services for whole machine life, 24 hours technical support by email and telephone.
7. Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

8. Establish long-term and friendly relationship.

FAQ

1. What data is required to confirm the model?
(1) Materials to be dried (2) Treatment capacity per hour (3) Moisture requirements before and after drying (4）Heating
source（electricity/ gas/ thermal oil, etc)
2. What certificates do you have?
We can provide CE, ISO 9001, etc
3. What is the warranty period of the equipment?
Normally 1 year warranty
4. Can we visit your factory?
Sure, we sincerely invite you to visit
5. Can we bring our own materials to your factory for experiments?
Sure, you are welcome at any time. We will arrange professional engineers and technicians to do experiments and analyze data for you on site.
6. Can it be customized?
Sure, our equipment can be customized according to the actual requirements of customers.
7. How long is the construction period?
It's about 30 days, but it also needs to be determined according to the specific equipment model, order number, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production.
8. Will you provide installation services?
If you need, we can arrange professional technicians and engineers to install and debug on site.
