Industrial paper pencil making machine newspaper pencil making machine waste paper pencil making machine automatic

Industrial paper pencil making machine newspaper pencil making machine waste paper pencil making machine

1.Introduction of paper pencil making machine:

The latest generation of series of paper pencil equipment, with the most advanced level,provincial working hours, the volume bar effect; no pollution, no huge investment in the end, non-timber can not produce the history of pencils, wooden pencils factory investment business and the ideal equipment for changing products

2.Advantage of paper pencil making machine:
1)state support environmental protection industry.
2) cost less than wooden pencils.
3)performance was better than wooden pencils.
4)the production process is simple.

3.Production process:

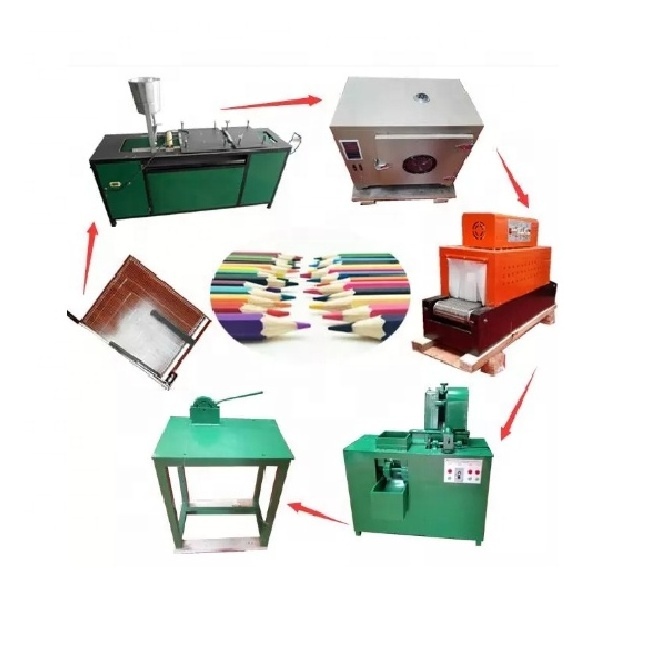

paper cutter → rolling machine →drying → cutting and polishing → shrinking machine→ eraser

We have the whole pruduction line for making waste paper pencils. You can buy any one of them, or you can choose to buy the whole line.

1, Paper cutting machine
This machine is to cut the 18*56cm newspapers into pieces for further processing.

Max thickness of paper: 40mm
Max length of paper: 750mm
Weight: 100kg
Dimension: 1200*1000*900

2. Pencil stick rolling machine
This machine used to roll the pieces of newspaper into pencil sticks.When rolling, you need use glue.
Productivity: 80pcs/min
Motor: 220V 1.5kw
Weight: 140kg
Dimension: 1900*450*1300mm

3. Pencil sticks drying machine
This machine is to dry the pencil sticks.
Productivity: 4000pcs/time
Motor: 220V 2.2kw
Weight: 70kg
Dimension: 760*550*680mm

4. pencil cutting and polishing machine all in one machine
This machine used to cut and polish the dry pencil sticks
Capacity: 100pcs/min
Motor: 220V 1.7kw
Total weight: 130kg
Dimension: 900*450*1150mm

5. Shrink packing machine
This machine used to pack the pencils in colorful plastic papers.
Capacity: 100pcs/min
Power:220v 1.5kw
Weight: 60 kg Dimension: 1160*430*780mm

6. Pencil heading machine
This machine is to head the eraser.
Parameters
Capacity: 30 pieces/min
Weight: 10 kg
Dimension: 600*450*1000mm
