Quick Details
-
Brand Name:
-
None
-
Model Number:
-
50A-400V
-
Output Frequency:
-
20KHZ
-
Output Current:
-
50A
-
Input Voltage:
-
380v
-
Input voltage:
-
Three phase AC220V/380V/415V/440V
-
Output voltage:
-
12V/15V/18V/24V/40V/48V
-
Output current:
-
0-500A/1000A/2000A/3000A/5000A/8000A/10000A
-
Cooling way:
-
Air cooling/water cooling
-
Efficiency:
-
≥90%
-
PLC interface:
-
RS485,0-5V/4-20mA
-
Communication protocol:
-
MODBUS/PROFIBUS/PROFINET
-
Application:
-
Nickel copper zinc chrome plating;water treatment;electrolysis
Quick Details
-
Output Power:
-
>500W
-
Output Voltage:
-
400V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
None
-
Model Number:
-
50A-400V
-
Output Frequency:
-
20KHZ
-
Output Current:
-
50A
-
Input Voltage:
-
380v
-
Input voltage:
-
Three phase AC220V/380V/415V/440V
-
Output voltage:
-
12V/15V/18V/24V/40V/48V
-
Output current:
-
0-500A/1000A/2000A/3000A/5000A/8000A/10000A
-
Cooling way:
-
Air cooling/water cooling
-
Efficiency:
-
≥90%
-
PLC interface:
-
RS485,0-5V/4-20mA
-
Communication protocol:
-
MODBUS/PROFIBUS/PROFINET
-
Application:
-
Nickel copper zinc chrome plating;water treatment;electrolysis

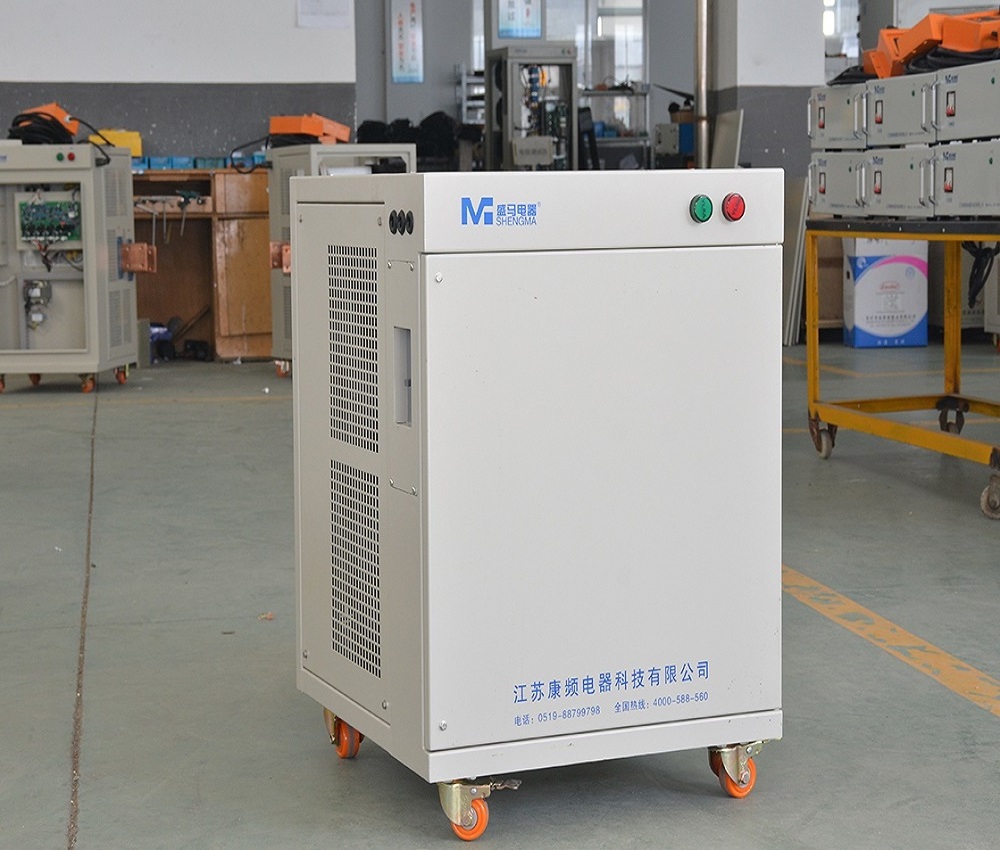

High voltage 400V ac to dc variable power supply rectifier for water treatment industry
| Item | Content |
| Input voltage |
1 phase 110V,220V;3 phase AC 380V, 480V, 415V, ±10%, 50-60Hz |
| Output DC current |
Rated 500A~50KA |
|
Output DC voltage |
Rated 12V-48V |
| Protection class | Up to IP54 for water cooling, IP32 for air cooling |
| Efficiency |
>90% @ rated output |
| Power factor |
≥0.93 @ rated output |
| Ambient temp. | Max. 50°C |
| Cooling |
Water or forced air cooling |
| Regulation range |
Stepless at constant voltage or current 0-100% |
| Control precision |
Voltage/current≤1% |
| Control mode | Constant current/voltage/power |
| Operation mode |
Manual/remote |
| Manual control |
Local digital panle Remote digital box |
| Relative humidity |
15%-85%RH |
| PLC interface | RS485, 0-10V/4-20mA |
| Communication protocol | MODBUS,Profibus, Profinet |
| Process programming | Available |
| Polarity reverse | Available |
| Spare parts | Available |
| HMI | Touch panel or digital meters/buttons |
| Package | Plywood case for export |
