Quick Details
-
Weight:
-
405 KG
-
Product Type:
-
Agricultural Farm Machinery
-
Linkage:
-
3 Point Linkage
-
Tilling Width:
-
1050-1650mm
-
Tilling Depth:
-
120mm
-
Usage:
-
soil preparation
-
COLOUR:
-
Customer Choose
-
PTO SPLINE:
-
6x8x700mm
-
PTO TURNNING SPEED:
-
540r/min
Quick Details
-
Use:
-
soil preparation
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
NEWBANG
-
Weight:
-
405 KG
-
Product Type:
-
Agricultural Farm Machinery
-
Linkage:
-
3 Point Linkage
-
Tilling Width:
-
1050-1650mm
-
Tilling Depth:
-
120mm
-
Usage:
-
soil preparation
-
COLOUR:
-
Customer Choose
-
PTO SPLINE:
-
6x8x700mm
-
PTO TURNNING SPEED:
-
540r/min
Product Description

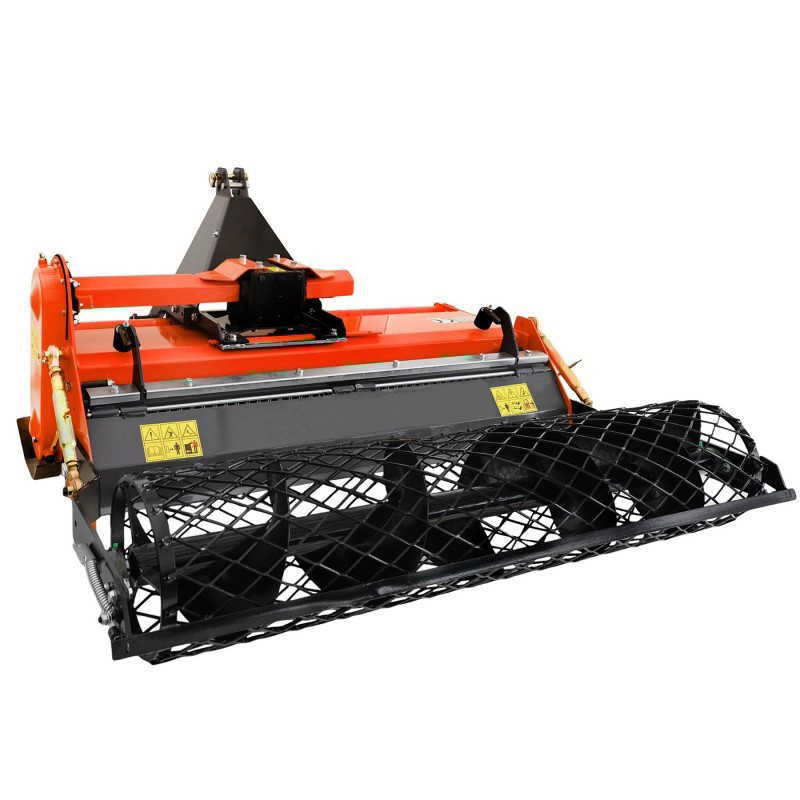

Model SB 20-45 hp tractor farm rotavator rotary tiller with stone burier
The SB series stone burier is suitable for working in orchards and for gardening.
Sturdy cast-iron gearbox, side skids, side chain drive, automatic tensioner, cage roller, Cat. I and II universal three-point hitch, EC safety guards. The shift (120 mm) of the three-point hitch is mechanical and manual and does not require the use of levers.
Sturdy cast-iron gearbox, side skids, side chain drive, automatic tensioner, cage roller, Cat. I and II universal three-point hitch, EC safety guards. The shift (120 mm) of the three-point hitch is mechanical and manual and does not require the use of levers.
|
MODEL
|
SB105
|
SB125
|
SB145
|
SB165
|
|
DIMENSIONS(L*W*H)
|
1160x1330x920mm
|
1360x1330x920mm
|
1560x1330x920mm
|
1760x1330x920mm
|
|
STRUCTURE WEIGHT
|
330kg
|
355kg
|
380kg
|
405kg
|
|
WORKING WIDTH
|
950mm
|
1150mm
|
1350mm
|
1550mm
|
|
WORKING DEPTH
|
120mm
|
120mm
|
120mm
|
120mm
|
|
WORKING EFFICIENCY
|
1500-2000㎡/h
|
1800-2400㎡/h
|
2100-2800㎡/h
|
2400-3200㎡/h
|
|
PTO TURNNING SPEED
|
540r/min
|
540r/min
|
540r/min
|
540r/min
|
|
PTO SPLINE
|
6x8x700mm
|
6x8x700mm
|
6x8x700mm
|
6x8x700mm
|
|
POWER REQUIRED
|
20-28hp
|
25-30hp
|
28-40hp
|
35-45hp
|
